PEEK and Its Radiolucent Properties: A Crucial Advantage for Medical Devices

What Makes PEEK Radiolucent on X-rays, MRIs, and CT Scans?

Polyether Ether Ketone (PEEK) is a high-performance polymer widely recognized for its exceptional mechanical properties, biocompatibility, and chemical resistance. Among its most notable characteristics is its radiolucency—making it highly suitable for use in medical imaging and diagnostic applications. This article explores the science behind PEEK's radiolucent properties and why this feature makes it indispensable in modern medical devices.

Understanding Radiolucency in Medical Imaging

Radiolucency refers to the ability of a material to allow radiation, such as X-rays, to pass through it without significant absorption or attenuation. Radiolucent materials appear as dark or transparent areas on imaging scans, in contrast to radiopaque materials like metals, which block radiation and appear as bright, dense areas.

In medical imaging techniques such as X-rays, MRIs, and CT scans, radiolucency is crucial for ensuring clear visualization of surrounding tissues, bones, or implants without interference from the material itself.

Why is PEEK Radiolucent?

PEEK's radiolucency is rooted in its chemical and physical properties:

1. Low Atomic Number Composition

PEEK is composed primarily of carbon, hydrogen, and oxygen, elements with low atomic numbers. These elements do not significantly attenuate X-ray photons or other radiations, allowing them to pass through the material with minimal interference.

Unlike metals or ceramics, which have high-density structures and high atomic numbers, PEEK does not scatter or absorb radiation heavily, ensuring clean imaging.

2. Non-Magnetic Properties

PEEK is a non-metallic material and does not contain ferromagnetic components. This makes it completely safe and compatible with magnetic resonance imaging (MRI), as it does not distort magnetic fields or interfere with the imaging process.

3. Homogeneous Structure

PEEK's homogeneous polymeric structure ensures uniform interaction with radiation. This uniformity prevents artifacts or anomalies that can appear in imaging when heterogeneous materials are used.

4. Customizability for Imaging Needs

PEEK can be compounded with additives to enhance specific properties while retaining radiolucency. For example, slight adjustments in its formulation can tailor the polymer for specialized imaging applications without compromising its transparency on scans.

Understanding Radiolucency in PEEK

1. Chemical Structure and Composition

PEEK is a thermoplastic polymer characterized by a repeating unit of ether and ketone groups in its molecular structure. This unique arrangement contributes to its low density and minimal atomic number, which are critical factors in determining radiolucency. Unlike metals, which have high atomic numbers that absorb X-rays, PEEK's composition allows X-ray photons to pass through with little attenuation, rendering it transparent in imaging modalities.

2. Low Atomic Number Elements

The elements that constitute PEEK—primarily carbon, hydrogen, and oxygen—have low atomic numbers. Materials with low atomic numbers do not significantly interact with X-ray photons, resulting in minimal absorption and scattering. This property is essential for achieving clear images of surrounding tissues and structures during imaging procedures.

3. Absence of Metal Artifacts

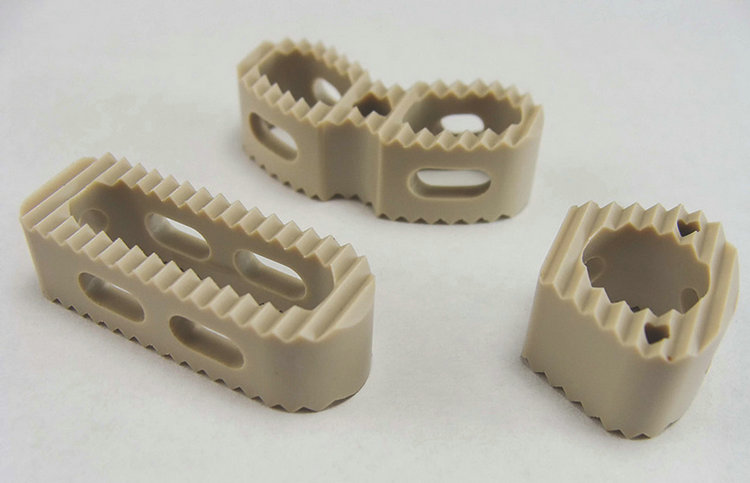

Traditional metallic implants often produce artifacts on X-ray and MRI images due to their high density and atomic number. These artifacts can obscure diagnostic information and complicate post-operative assessments. In contrast, PEEK does not generate such artifacts, allowing for clearer visualization of the implant site and surrounding anatomy. This feature is particularly beneficial in monitoring osseointegration—the process by which bone grows into the implant.

4. Compatibility with Imaging Techniques

PEEK's radiolucent properties extend across various imaging modalities:

X-rays: PEEK does not appear on standard X-ray images, facilitating unobstructed views of bone structures.

MRI: Being non-magnetic, PEEK is safe for use in MRI environments and does not produce significant artifacts that could compromise image quality.

CT Scans: PEEK's translucency allows for accurate assessments during CT imaging, enabling healthcare professionals to evaluate the integration of the implant with surrounding bone tissue effectively.

5. Potential Modifications for Enhanced Imaging

In specific scenarios where increased visibility is desired, PEEK can be modified with additives such as barium sulfate. This modification can enhance contrast on imaging studies while still preserving the polymer's inherent benefits. Such tailored solutions allow clinicians to balance the need for clear imaging with the advantages of using a radiolucent material.

Advantages Over Traditional Materials

Enhanced Imaging Clarity: Compared to metal implants, which cause artifacts and shadows in CT scans and MRIs, PEEK ensures unobstructed imaging, aiding accurate diagnosis and treatment planning.

Reduced Artifacts in MRIs: Metallic implants can cause severe distortion in MRI scans due to their interaction with magnetic fields. PEEK eliminates this issue, ensuring reliable results.

Improved Patient Monitoring: With PEEK implants, healthcare professionals can monitor the progression of healing and detect complications without requiring additional imaging techniques.

Conclusion

PEEK's radiolucent properties stem from its low atomic number composition, non-magnetic nature, and homogeneous polymeric structure. These characteristics make it a superior choice for medical applications requiring precise imaging. As medical technology continues to evolve, PEEK's radiolucency, combined with its biocompatibility and mechanical strength, ensures its growing prominence in advanced medical devices and implants.

By choosing PEEK, healthcare professionals and device manufacturers can achieve better diagnostic accuracy, improved patient outcomes, and reduced imaging complications—cementing its role as a cornerstone material in modern medical innovation.
