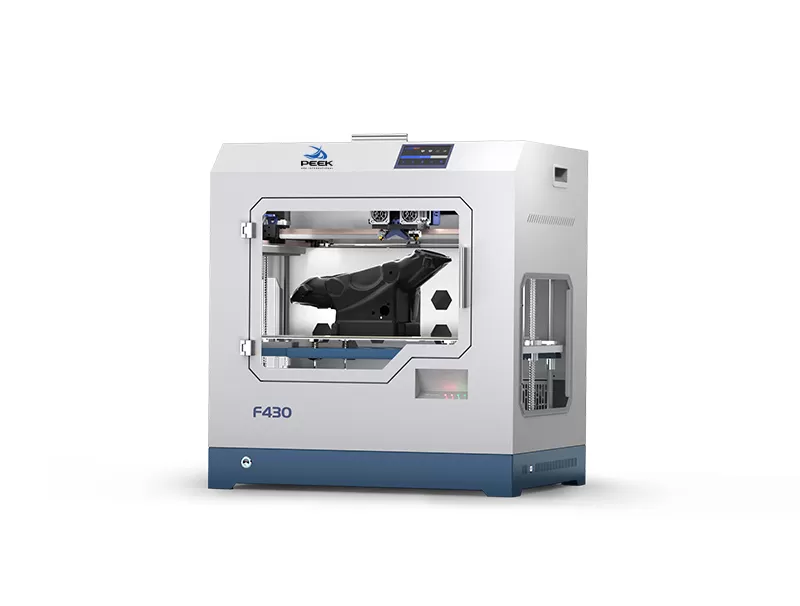

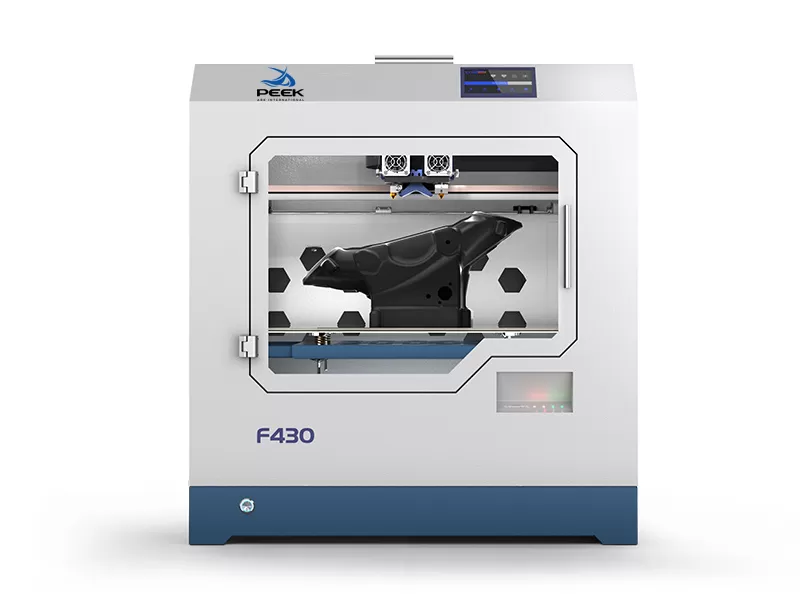

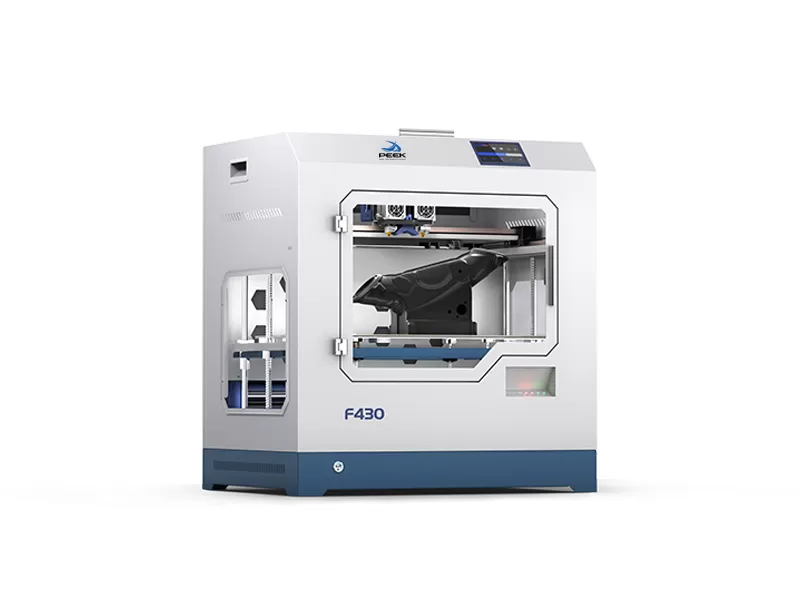

PEEK 3D Printer F430

We are the first one to publish 420°C high temperature nozzle to 3D printer market since year of 2016, now it is the 4th new tech version.

F430 equiped with dual extruders, The left 260°C hotend is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right 420°C hotend is made of martensite steel, which is able to print High performance material like PEEK, ULTEM, etc. The dual hotend is replaceable, which provide more possibility on your application.

Inquire Now

TECHNICAL DATA

Printing
Print Technology	Fused Deposition Modeling（FDM）
Build Volume	400300300 mm
Number of Nozzles	Double
Resolution	0.04 mm
Layer Resolution	0.02 mm
Filament Diameter	1.75 mm
Filament Compatibility	PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
Nozzle Diameter	0.4mm (0.3 0.5 0.6 0.8 1.0mm)
Print File Type	STL, OBJ, AMF, Gcode
Speed
Best Printing speed	55 mm/s
Max. Printing speed	180 mm/s
Electrical
Power Requirements	100-240V, 50-60Hz
Max. Power	1 500 W
Screen	4.3'' Touch Screen
Control Chip	ATmega 2560
Storage Media	U Disk
Connectivity	USB
Special Function
Outage Restored	Save data when power is off
Filament Detection	Pause printing when filament run out
Automatic Shut-down	Turn off the power automatically when printing is complete
Temperature
Ambient Operating Temperature	15 ℃~32 ℃
Max. Nozzle Temperature	420 ℃
Max. Bed Temperature	140 ℃
Max. Chamber Temperature	70 ℃
Mechanical
Construction	Power-Coated Steel, Aluminum Casting for Motion Components
Build Plate	Glass Ceramic Panel
Build Plate Leveling	Automatic
Extruder	Directly Drive
Stepper Motors	1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision	12.7 μm
Z Positioning Precision	1.25 μm

Software Bundle	CreatWare, Simplify 3D, Cura, Slice 3r, etc
Supported File Types	STL,OBJ,AMF
Operating Systems	Win7/8/10, MacOS
Size & Weight
Product Dimensions &Weight	620485680 mm 48 kg
Packing Size & Weight	750580720 mm 62 kg
