Medical PEEK

Medical-grade PEEK Materials

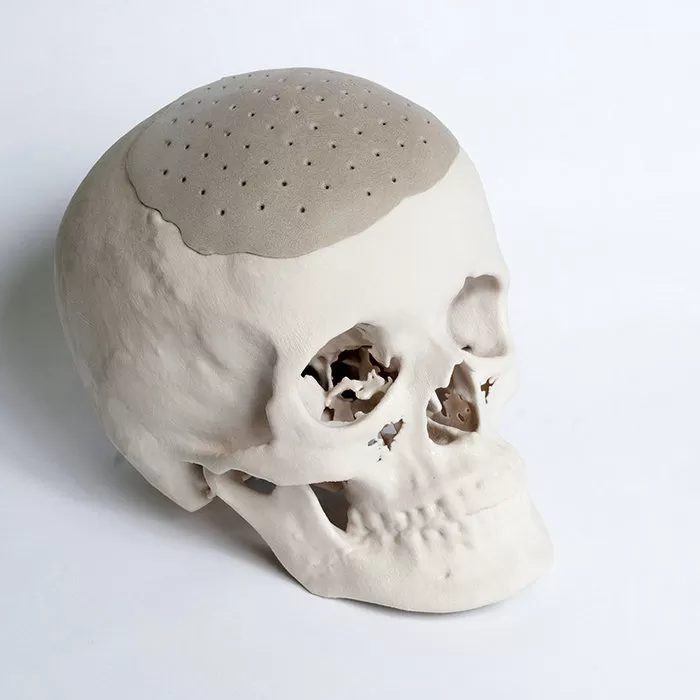

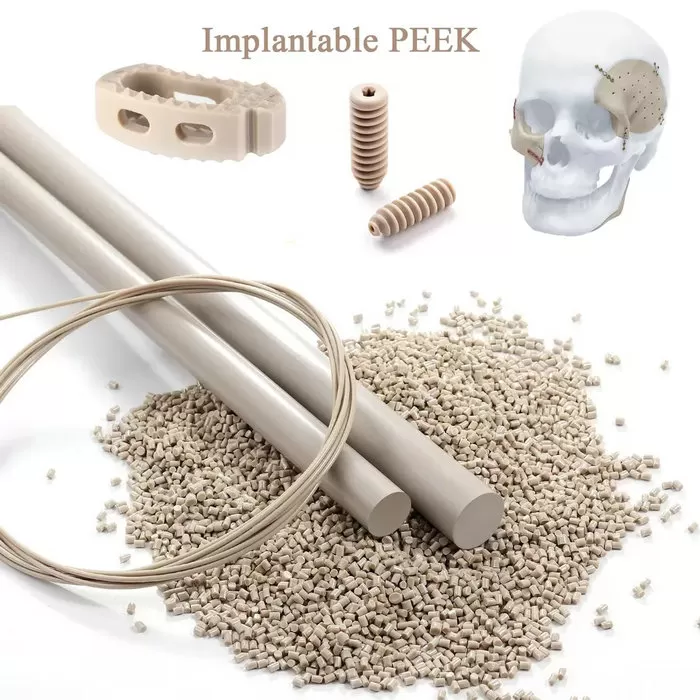

ARK-BioPEEK Medical PEEK, or polyetheretherketone, is a high-performance thermoplastic material that is widely used in the medical industry for its exceptional properties. PEEK is known for its biocompatibility, radiolucency, and strength, making it an ideal choice for a variety of medical applications such as spinal implants, dental implants, and orthopedic devices.

Inquire Now Next Products

MEDICAL PEEK PROPERTY

Designed to meet the demanding requirements of surgical procedures, our medical grade PEEK exhibit exceptional biocompatibility, allowing for safe and reliable implantation within the human body. The mechanical strength of ARK-BioPEEK ensures robustness and durability, offering the necessary support for surgical implants to withstand various physiological stresses.

With thermal stability as a key characteristic, our medical PEEK materials maintain their structural integrity even under challenging conditions, enabling long-term performance and stability within the implant environment. The materials' resistance to degradation and wear enhances their longevity, providing confidence to healthcare professionals and patients alike.

ARK-BioPEEK prioritize the well-being and safety of patients, which is why our PEEK polymers undergo rigorous testing and validation to guarantee their suitability for surgical implant applications. Our commitment to innovation drives us to continually enhance the performance and properties of our PEEK materials, ensuring they remain at the forefront of surgical implant solutions.

Choose ARK-BioPEEK for your surgical implant needs and experience the benefits of next-generation PEEK materials. Trust in our expertise, reliability, and dedication to delivering high-quality PEEK polymers that redefine the standards of surgical implant applications.

Properties Information
Property		Reference Standard	Test Method	Unit	Specification	Result
Physical Properties	Glass Transition	ASTM F2026	ASTM D3418	°C	125-165	147
	Temperature, T_g	ASTM F2026	ASTM D3418	°C	125-165	147
	Melt Temperature, T_m	ASTM F2026	ASTM D3418	°C	320-360	338
	Recrystallization	ASTM F2026	ASTM D3418	°C	260-320	289
	Temperature, T_c	ASTM F2026	ASTM D3418	°C	260-320	289
	Viscosity	ASTM F2026	ISO 11443	Pa·s	400-480	437
	Infrared Spectrum	ASTM F2026	ASTM F1579	/	See Appendix X1	See Appendix X2
	Density	ASTM F2026	ASTM D1505	kg/m³	1280-1320	1294
Chemical Properties	Total Heavy Metals (Ag, As, Bi, Cd, Cu, Hg, Mo, Pb, Sb, and Sn), max	ASTM F2026	US Pharmacopeia,	ppm	<100	＜10
Chemical Properties		ASTM F2026	Test 233	ppm	<100	＜10
Mechanical Properties	Tensile Strength at Yield (zero slope), min	ASTM F2026	ASTM D638, Type IV, 5.08 cm/min	MPa	90	105
	Tensile Strength at Break, min	ASTM F2026	ASTM D638, Type IV, 5.08 cm/min	MPa	70	80
	Elongation at Break, min	ASTM F2026	ASTM D638, Type IV, 5.08 cm/min	%	5	18
	Flexural Strength, min	ASTM F2026	ASTM D790	MPa	110	163
	Flexural Modulus, min	ASTM F2026	ASTM D790	GPa	3	4
	Impact Strength,	ASTM F2026	ISO 180	kJ/m²	4	9
	Notched Izod, min	ASTM F2026	ISO 180	kJ/m²	4	9
Biological Properties	Genotoxicity	ISO 10993-3	ISO 10993-3	/	Negative	Negative
	Animal Intracutaneous (Intradermal) Reactivity	ISO 10993-10	ISO 10993-10	/	≤1	0
	Skin Sensitization	ISO 10993-10	ISO 10993-10	/	≤1	0
	Acute Systemic Toxicity	ISO 10993-11	ISO 10993-11	/	No Acute Systemic Toxicity	No Acute Systemic Toxicity
	Subchronic Systemic Toxicity	ISO 10993-11	ISO 10993-11	/	No Subchronic Systemic Toxicity	No Subchronic Systemic Toxicity
	local Effects After Implantation	ISO 10993-6	ISO10993-6	/	No obvious difference between the test sample and the control sample	No obvious difference between the test sample and the control sample
	In Vitro Cytotoxicity	ISO 10993-5	ISO10993-5	/	≤1	1
	Evaluation of Haemolytic Properties	ISO 10993-4	ISO10993-4	%	＜5	1
	Material Mediated Pyrogens	ISO 10993-11	ISO 10993-11	/	No Pyrogenic Responses	No Pyrogenic Responses
	Extractables of The Material	ISO 10993-18	ISO 10993-18	μg/g	The contents of Phenyl Sulfone≤300	The contents of Phenyl Sulfone＜0.09
