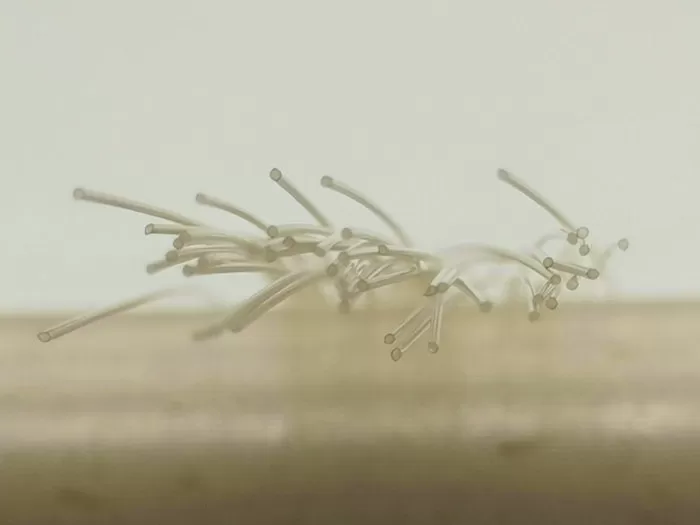

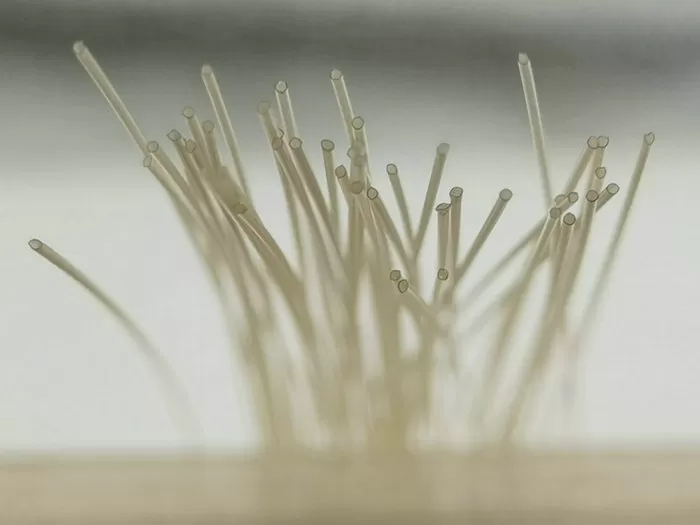

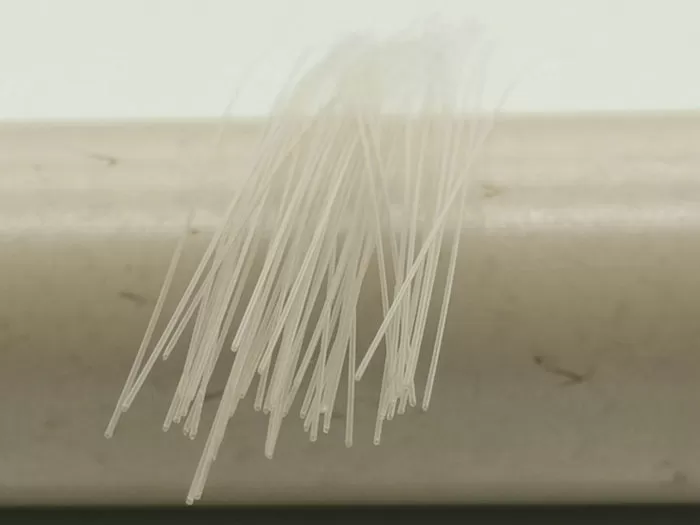

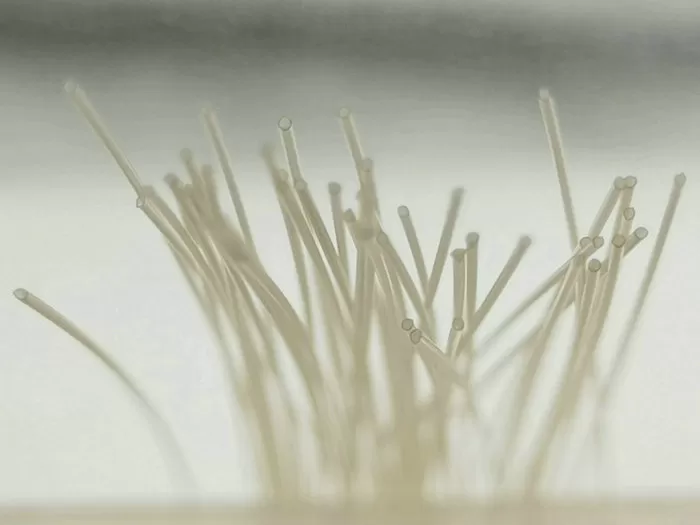

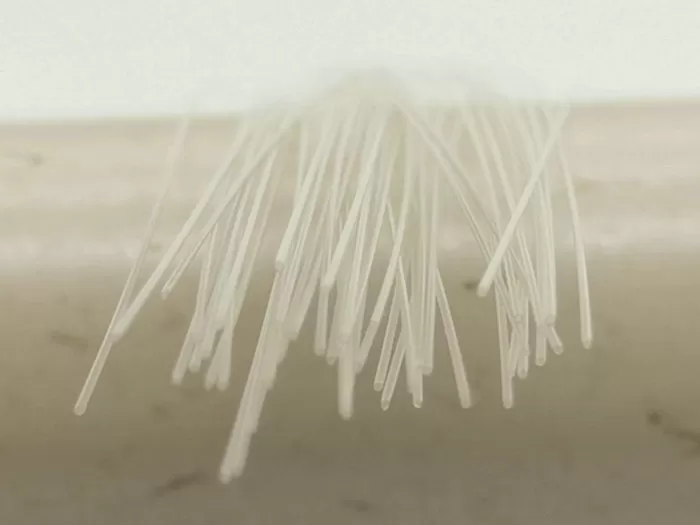

ARK-BioPEEK Medical-grade Capillary
Biomaterial PEEK capillaries are small, thin tubes made of polyether ether ketone (PEEK) material that are specifically designed for use in biomedical applications. They are biocompatible, meaning they do not cause any adverse reactions when implanted in the body, and are commonly used in medical devices such as catheters and implants. PEEK capillaries are known for their high strength, durability, and resistance to chemicals and heat, making them an ideal choice for biomedical applications where reliability and performance are critical.
Key Features of PEEK Capillary:
• Ultra hard material
• Very good chemical resistance
• Stable at temperatures up to 228°C
• Excellent abrasion resistance
• Flame retardant (UL94 V-0)
• Very tight dimensional tolerances
PEEK Tubing:
• In coils, on spools or straight lengths with clean, square cuts
• Translucent or Opaque
• Wall thickness varying along length (Bumped tubing)
• Coloured PEEK tubing
• Multi-Layer PEEK tubing
• Reinforced PEEK tubing (Stainless Steel Wires)
• Shaped tubing
Properties Information | ||||||
Property | Reference Standard | Test Method | Unit | Specification | Result | |
Physical Properties | Glass Transition | ASTM F2026 | ASTM D3418 | °C | 125-165 | 147 |
Temperature, Tg | ||||||
Melt Temperature, Tm | ASTM F2026 | ASTM D3418 | °C | 320-360 | 338 | |
Recrystallization | ASTM F2026 | ASTM D3418 | °C | 260-320 | 289 | |
Temperature, Tc | ||||||
Viscosity | ASTM F2026 | ISO 11443 | Pa·s | 400-480 | 437 | |
Infrared Spectrum | ASTM F2026 | ASTM F1579 | / | See Appendix X1 | See Appendix X2 | |
Density | ASTM F2026 | ASTM D1505 | kg/m3 | 1280-1320 | 1294 | |
Chemical Properties | Total Heavy Metals (Ag, As, Bi, Cd, Cu, Hg, Mo, Pb, Sb, and Sn), max | ASTM F2026 | US Pharmacopeia, | ppm | <100 | <10 |
Test 233 | ||||||
Mechanical Properties | Tensile Strength at Yield (zero slope), min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | MPa | 90 | 105 |
Tensile Strength at Break, min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | MPa | 70 | 80 | |
Elongation at Break, min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | % | 5 | 18 | |
Flexural Strength, min | ASTM F2026 | ASTM D790 | MPa | 110 | 163 | |
Flexural Modulus, min | ASTM F2026 | ASTM D790 | GPa | 3 | 4 | |
Impact Strength, | ASTM F2026 | ISO 180 | kJ/m2 | 4 | 9 | |
Notched Izod, min | ||||||
Biological Properties | Genotoxicity | ISO 10993-3 | ISO 10993-3 | / | Negative | Negative |
Animal Intracutaneous (Intradermal) Reactivity | ISO 10993-10 | ISO 10993-10 | / | ≤1 | 0 | |
Skin Sensitization | ISO 10993-10 | ISO 10993-10 | / | ≤1 | 0 | |
Acute Systemic Toxicity | ISO 10993-11 | ISO 10993-11 | / | No Acute Systemic Toxicity | No Acute Systemic Toxicity | |
Subchronic Systemic Toxicity | ISO 10993-11 | ISO 10993-11 | / | No Subchronic Systemic Toxicity | No Subchronic Systemic Toxicity | |
local Effects After Implantation | ISO 10993-6 | ISO10993-6 | / | No obvious difference between the test sample and the control sample | No obvious difference between the test sample and the control sample | |
In Vitro Cytotoxicity | ISO 10993-5 | ISO10993-5 | / | ≤1 | 1 | |
Evaluation of Haemolytic Properties | ISO 10993-4 | ISO10993-4 | % | <5 | 1 | |
Material Mediated Pyrogens | ISO 10993-11 | ISO 10993-11 | / | No Pyrogenic Responses | No Pyrogenic Responses | |
Extractables of The Material | ISO 10993-18 | ISO 10993-18 | μg/g | The contents of Phenyl Sulfone≤300 | The contents of Phenyl Sulfone<0.09 |
