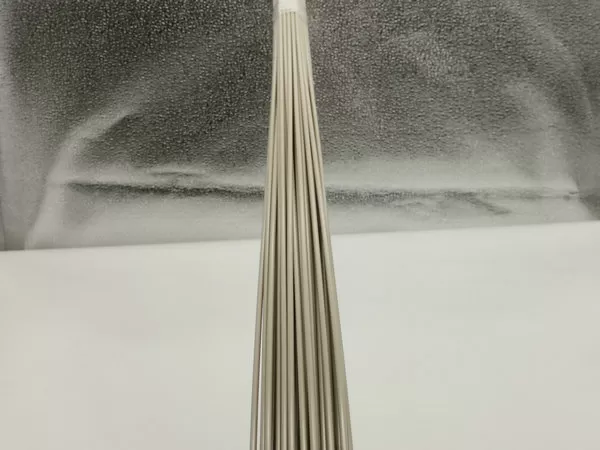

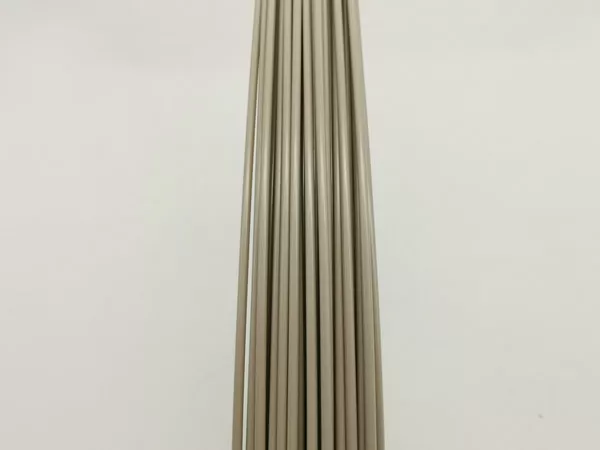

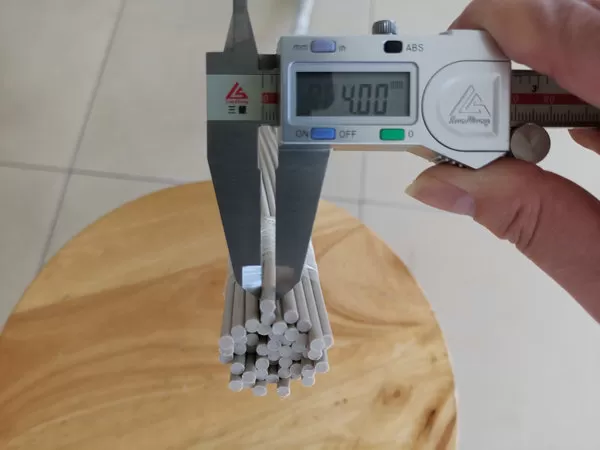

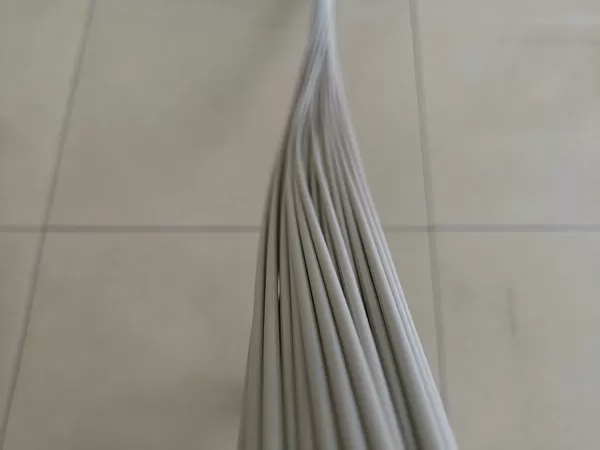

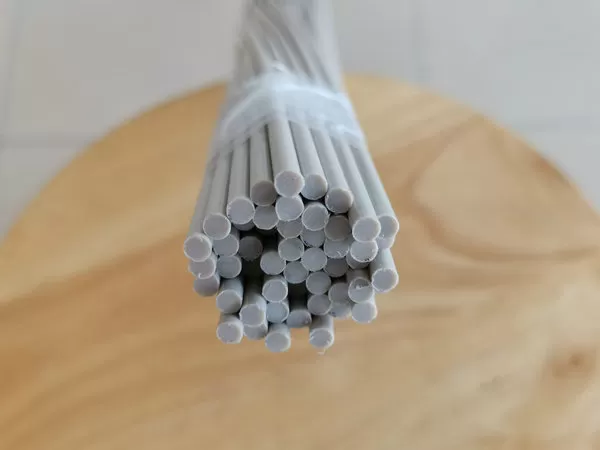

Small Size PEEK Rods
Our small size PEEK rods are specifically designed for medical device applications. With precise dimensions and biocompatible properties, these rods offer exceptional strength, chemical resistance, and radiolucency. Enhance the performance of your medical devices with our lightweight and durable PEEK rods.
Our small size PEEK rods are the perfect choice for medical device manufacturers seeking high-performance materials. These rods are meticulously engineered to meet the stringent requirements of the medical industry. With their precise dimensions and biocompatible properties, they offer exceptional strength, chemical resistance, and radiolucency.
These small size PEEK rods provide a lightweight and durable solution for a wide range of medical devices. Whether it's surgical instruments, orthopedic implants, dental tools, or drug delivery systems, our PEEK rods deliver outstanding performance.
One of the key advantages of our small size PEEK rods is their exceptional strength-to-weight ratio. Despite their lightweight nature, these rods exhibit remarkable mechanical properties, ensuring durability and longevity in medical device applications. They can withstand rigorous sterilization processes without compromising their integrity.
Additionally, our small size PEEK rods offer excellent chemical resistance, making them suitable for use in contact with various bodily fluids and harsh sterilization agents. This resistance helps to maintain the integrity and functionality of medical devices over time.
Furthermore, the radiolucency of our PEEK rods allows for clear imaging during medical procedures, ensuring accurate diagnosis and treatment. This feature is particularly valuable in applications such as orthopedic implants and surgical instruments.
In summary, our small size PEEK rods provide medical device manufacturers with a reliable and versatile material solution. Their precise dimensions, biocompatible properties, lightweight design, exceptional strength, chemical resistance, and radiolucency make them an excellent choice for a wide range of medical applications. Elevate the performance and reliability of your medical devices with our high-quality small size PEEK rods.
Small Size PEEK Rods Properties | ||||||
Property | Reference Standard | Test Method | Unit | Specification | Result | |
Physical Properties | Glass Transition | ASTM F2026 | ASTM D3418 | °C | 125-165 | 147 |
Temperature, Tg | ||||||
Melt Temperature, Tm | ASTM F2026 | ASTM D3418 | °C | 320-360 | 338 | |
Recrystallization | ASTM F2026 | ASTM D3418 | °C | 260-320 | 289 | |
Temperature, Tc | ||||||
Viscosity | ASTM F2026 | ISO 11443 | Pa·s | 400-480 | 437 | |
Infrared Spectrum | ASTM F2026 | ASTM F1579 | / | See Appendix X1 | See Appendix X2 | |
Density | ASTM F2026 | ASTM D1505 | kg/m3 | 1280-1320 | 1294 | |
Chemical Properties | Total Heavy Metals (Ag, As, Bi, Cd, Cu, Hg, Mo, Pb, Sb, and Sn), max | ASTM F2026 | US Pharmacopeia, | ppm | <100 | <10 |
Test 233 | ||||||
Mechanical Properties | Tensile Strength at Yield (zero slope), min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | MPa | 90 | 105 |
Tensile Strength at Break, min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | MPa | 70 | 80 | |
Elongation at Break, min | ASTM F2026 | ASTM D638, Type IV, 5.08 cm/min | % | 5 | 18 | |
Flexural Strength, min | ASTM F2026 | ASTM D790 | MPa | 110 | 163 | |
Flexural Modulus, min | ASTM F2026 | ASTM D790 | GPa | 3 | 4 | |
Impact Strength, | ASTM F2026 | ISO 180 | kJ/m2 | 4 | 9 | |
Notched Izod, min | ||||||
Biological Properties | Genotoxicity | ISO 10993-3 | ISO 10993-3 | / | Negative | Negative |
Animal Intracutaneous (Intradermal) Reactivity | ISO 10993-10 | ISO 10993-10 | / | ≤1 | 0 | |
Skin Sensitization | ISO 10993-10 | ISO 10993-10 | / | ≤1 | 0 | |
Acute Systemic Toxicity | ISO 10993-11 | ISO 10993-11 | / | No Acute Systemic Toxicity | No Acute Systemic Toxicity | |
Subchronic Systemic Toxicity | ISO 10993-11 | ISO 10993-11 | / | No Subchronic Systemic Toxicity | No Subchronic Systemic Toxicity | |
local Effects After Implantation | ISO 10993-6 | ISO10993-6 | / | No obvious difference between the test sample and the control sample | No obvious difference between the test sample and the control sample | |
In Vitro Cytotoxicity | ISO 10993-5 | ISO10993-5 | / | ≤1 | 1 | |
Evaluation of Haemolytic Properties | ISO 10993-4 | ISO10993-4 | % | <5 | 1 | |
Material Mediated Pyrogens | ISO 10993-11 | ISO 10993-11 | / | No Pyrogenic Responses | No Pyrogenic Responses | |
Extractables of The Material | ISO 10993-18 | ISO 10993-18 | μg/g | The contents of Phenyl Sulfone≤300 | The contents of Phenyl Sulfone<0.09 |
