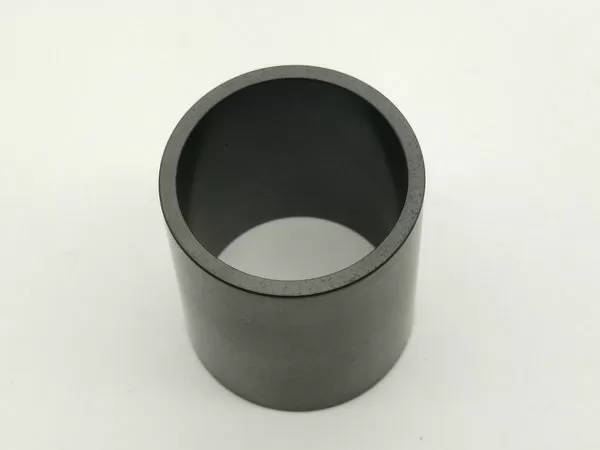

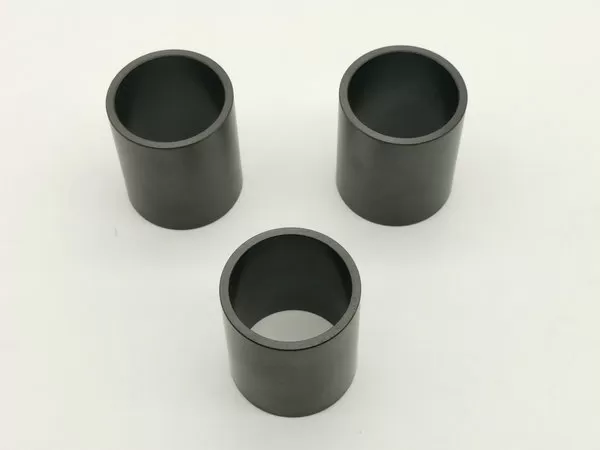

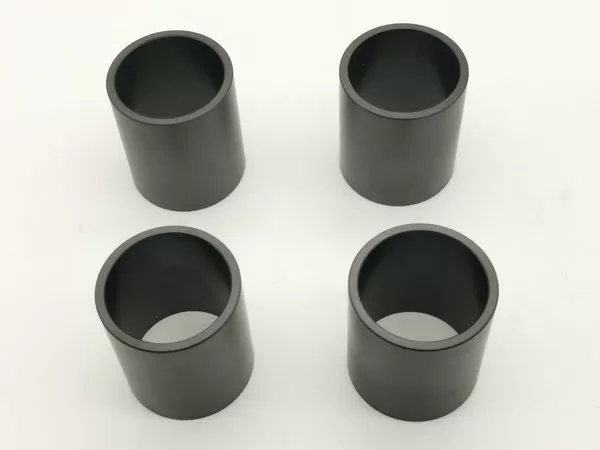

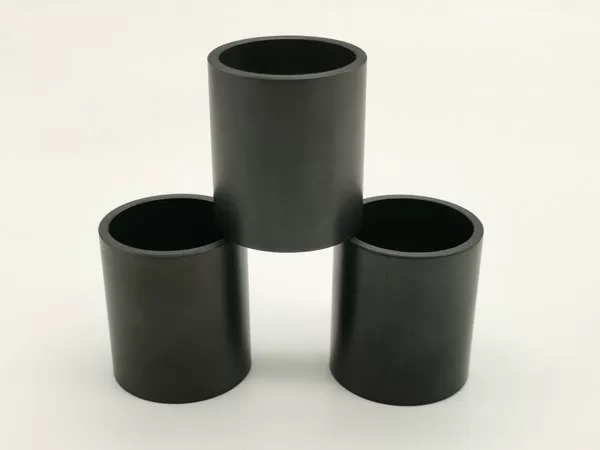

PEEK Composites Arm Plain Bearing

The Low-Friction PEEK Composites Arm Plain Bearing is a game-changer when it comes to enhancing the efficiency and performance of your equipment. With its exceptional low friction coefficient, this bearing minimizes energy loss and heat generation, resulting in reduced wear and extended operational life for your machinery. By reducing friction, it also lowers the power requirements of your equipment, leading to improved energy efficiency and potentially reducing operating costs. The self-lubricating properties of the PEEK material eliminate the need for additional lubrication, making it a hassle-free and maintenance-friendly choice. Upgrade to the composite PEEK Arm Plain Bearing to optimize your equipment's performance, increase productivity, and achieve significant cost savings over time.

Below PEEK Grades are available.

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
