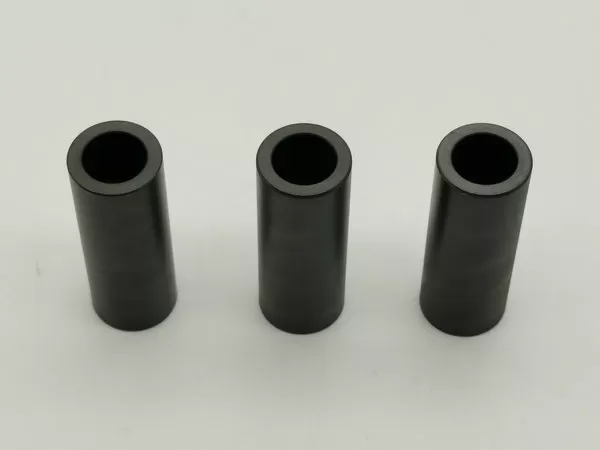

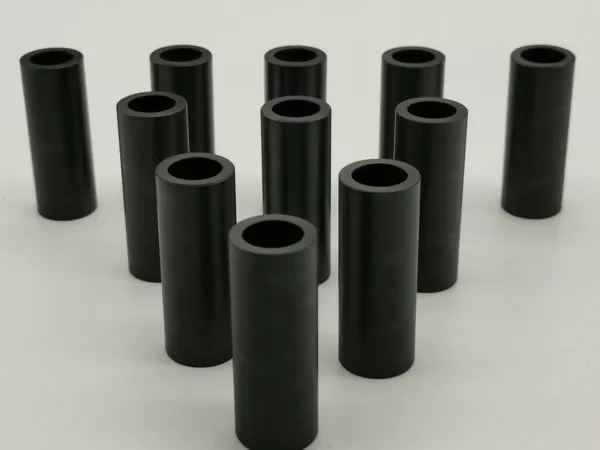

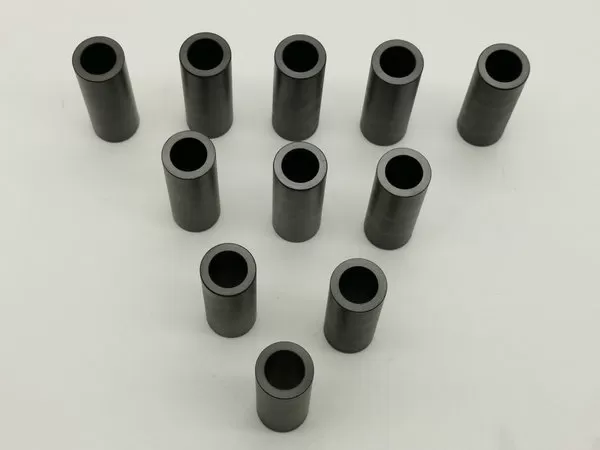

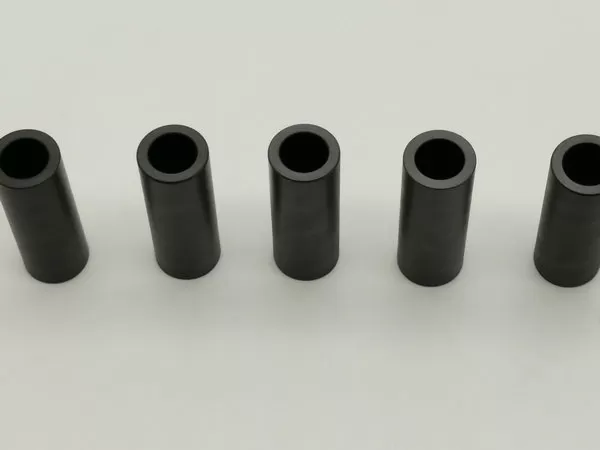

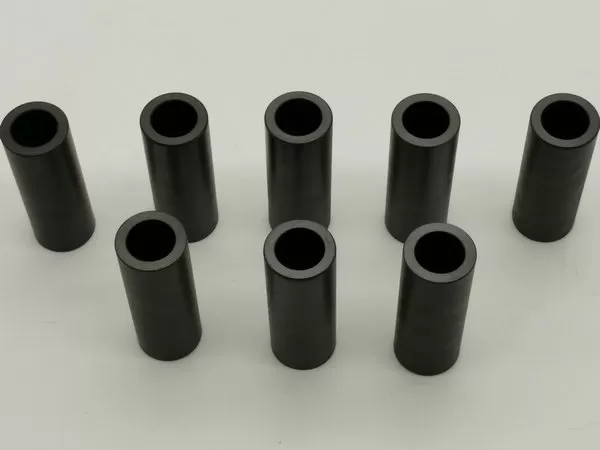

PEEK Sleeve Bearing

Experience superior performance and reliability with our HPV PEEK Sleeve Bearings. Engineered with precision, these PEEK bearings are designed to excel in demanding applications where high temperature, chemical resistance, and wear resistance are essential. The self-lubricating properties of PEEK ensure smooth operation and reduce maintenance requirements. With our PEEK Sleeve Bearings, you can trust in their long-lasting durability and exceptional performance, making them the ideal choice for critical industrial applications.

Below PEEK Grades are available.

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
