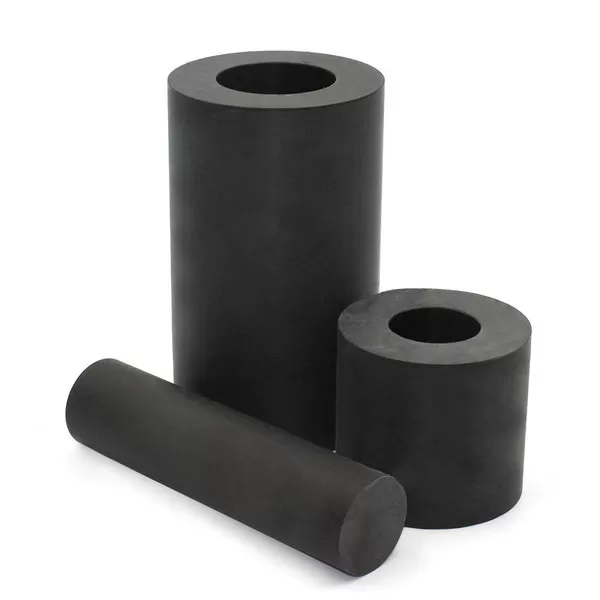

Carbon PEEK Tube

Carbon PEEK CF30 Material

Crafted from ARKPEEK-CF30 (30% carbon-reinforced PEEK), our Carbon PEEK Tube delivers unmatched rigidity, heat resistance, and lightweight performance. Ideal for aerospace components, medical devices, and industrial automation. Reliable Carbon PEEK Tube suppliers offering precision-engineered solutions.

PEEK CF30 Datasheet

Description

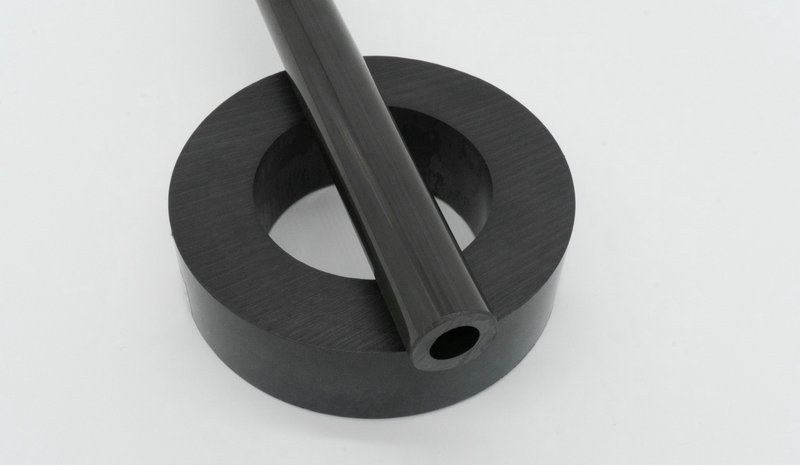

Carbon PEEK Tube


_______________________________________________________________________________________________________________________________________________________________________


Introducing the ARKPEEK-CF30 Carbon PEEK Tube, a cutting-edge material designed for industries requiring uncompromising performance under extreme conditions. Reinforced with 30% carbon fibers, this advanced tubing combines PEEK’s inherent benefits with enhanced mechanical strength, thermal stability, and resistance to wear, chemicals, and high-pressure environments.


Material Features

Superior Mechanical Strength: 30% carbon fiber reinforcement increases rigidity and load-bearing capacity.

Thermal Stability: Withstands continuous temperatures up to 250°C (482°F) without deformation.

Chemical Resistance: Resists acids, solvents, and hydrocarbons, perfect for harsh industrial settings.

Low Friction & Wear Resistance: Ideal for dynamic applications like bearings, seals, and hydraulic systems.

Lightweight & Durable: Outperforms metals with a high strength-to-weight ratio for aerospace and automotive uses.


Key Applications

Aerospace: Fuel system components, bushings, and insulation sleeves.

Medical: Sterilizable surgical tools, imaging equipment, and implantable device housings.

Industrial: Pump liners, semiconductor manufacturing parts, and oil/gas equipment.

Automotive: Lightweight replacements for metal in transmissions and sensors.

As a leading Carbon PEEK Tube supplier, we specialize in ARKPEEK-CF30 material to meet stringent industry standards. Our tubes are precision-extruded for consistent wall thickness and dimensional accuracy, ensuring seamless integration into high-stress environments.


Why ARKPEEK-CF30?

Certified Quality: Compliant with aerospace and medical-grade specifications.

Custom Sizing: Available in bespoke diameters and lengths.

Technical Support: Expert guidance for material selection and application optimization.


_______________________________________________________________________________________________________________________________________________________________________


ARKPEEK Grades

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.


_______________________________________________________________________________________________________________________________________________________________________

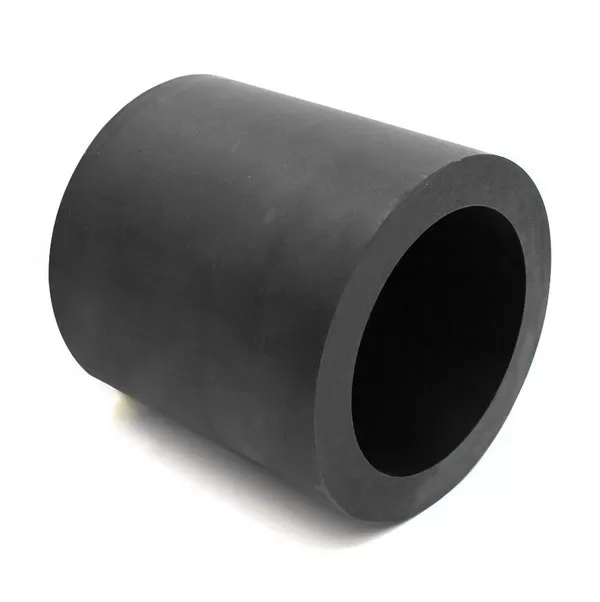

Carbon PEEK Tube Size

NO.Dimension OD*ID (mm)Weight ( g )
1∅1.6*∅0.13*10002.6
2∅1.6*∅0.25*10002.5
3∅1.6*∅0.5*10002.4
4∅1.6*∅0.75*10002.0
5∅1.6*∅1*10001.6
6∅2.33*∅1.6*10002.9
7∅2.8*∅2.5*10001.6
8∅3*∅2.67*10001.9
9∅3.2*∅1*10009.4
10∅3.2*∅1.6*10007.8
11∅5*∅2.5*100019.1
12∅5*∅4.5*10005.8
13∅7.5*∅4*100042.6
14∅10.2*∅8*100040.9
15∅12*∅4*100081.6
16∅12.45*∅8.88*100077.7
17∅29*∅18*1000527.6
18∅39*∅31*1000571.5
19∅80*∅30*10005612.8
20∅90*∅40*10006633.3
21∅100*∅50*10007653.8
22∅110*∅60*10008674.3
23∅130*∅60*100013572.7
24∅140*∅80*100013470.6
25∅160*∅90*100017858.8
26∅168*∅132*100011021.0
27∅180*∅110*100020716.2
28∅190*∅130*100019593.6
29∅190*∅140*100016838.3
30∅200*∅130*100023573.6
31∅220*∅150*100026431.0
32∅240*∅170*100029288.4
33∅257*∅230*100013418.6
34∅250*∅190*100026941.0
35∅260*∅210*100023981.8
36∅280*∅210*100035003.2
37∅280*∅230*100026022.0
38∅300*∅250*100028063.8
39∅320*∅300*100012654.2
40∅340*∅250*100054188.6
41∅360*∅280*100052249.6
42∅580*∅450*1000136645.0
