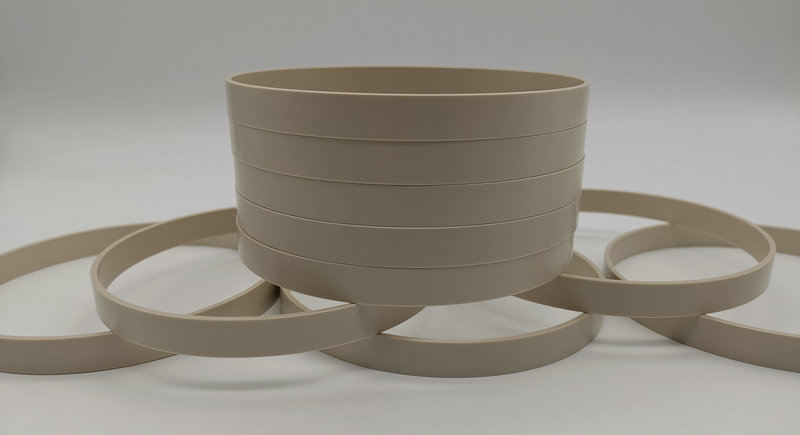

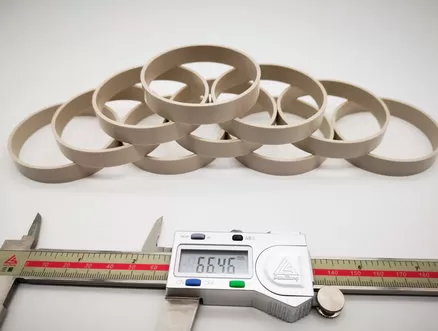

PEEK DN Seating

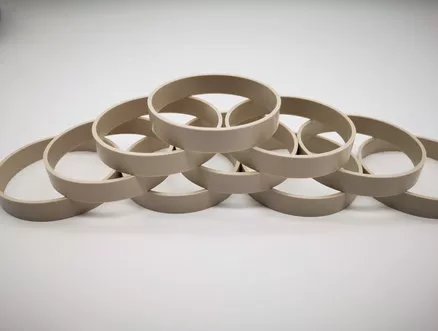

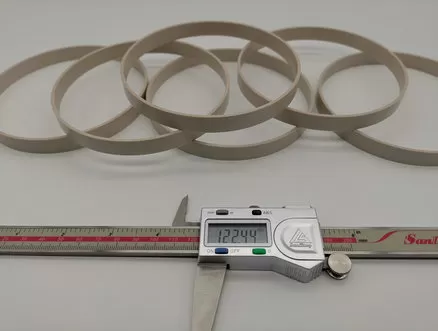

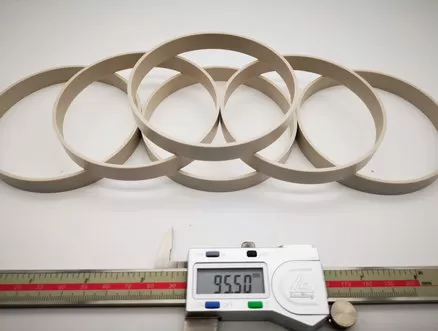

Introducing our range of PEEK seat inserts, meticulously designed to meet the diverse needs of industrial valves. From the compact DN50 to the robust DN700, these inserts ensure superior sealing performance and longevity. Crafted with precision engineering, each size guarantees optimal functionality in various applications. Choose reliability and durability across the spectrum with our DN50 to DN700 PEEK seat inserts, setting a new standard for valve efficiency.
Size: DN50, DN80, DN100, DN150, DN200, DN250, DN300, DN350, DN400, DN500, DN600, DN700.
_______________________________________________________________________________________________________________________________________________________________________

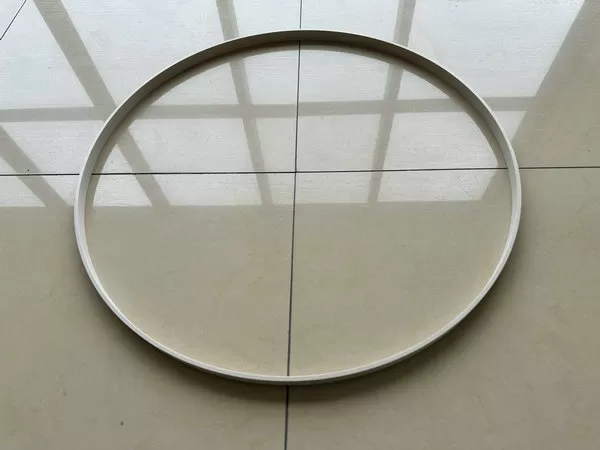

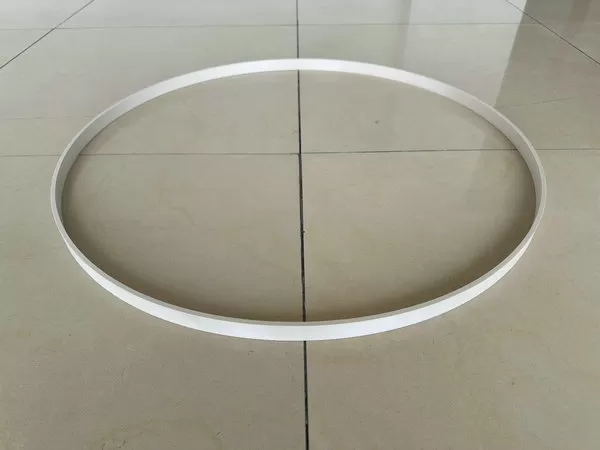

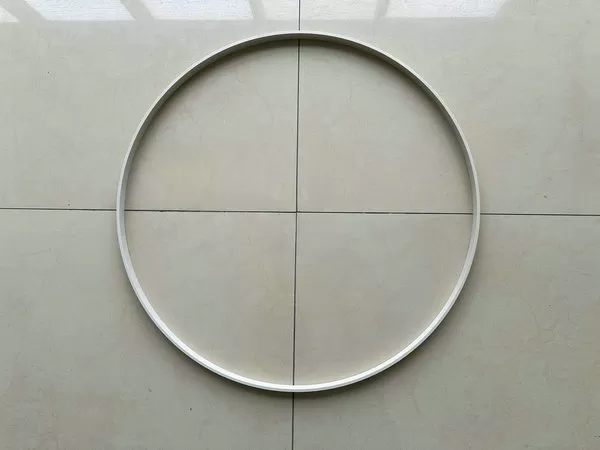

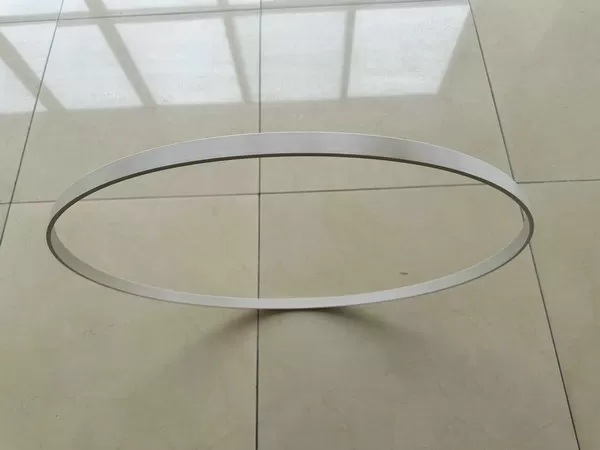

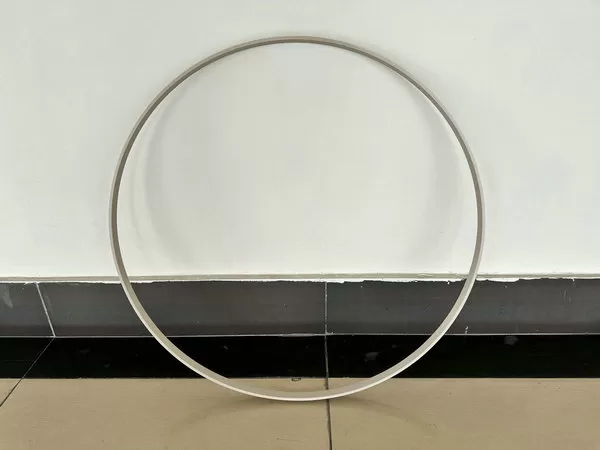

DN600 PEEK Seat Insert: Reliable Sealing for Demanding Industrial Valves
Engineered for large-diameter valve systems, the DN600 PEEK Seat Insert leverages the superior properties of ARKPEEK-1000® to provide a long-lasting, maintenance-free sealing solution. Unlike metal or elastomer seats, this insert combines PEEK’s intrinsic resilience with precision machining to ensure leak-free performance in the harshest environments.
Why Choose the DN600 PEEK Seat Insert?
ARKPEEK-1000® Advantages:
Chemical Resistance: Withstands acids, hydrocarbons, steam, and sour gas, eliminating corrosion-induced failures.
Thermal Stability: Operates continuously at 260°C (500°F) with short-term tolerance up to 310°C.
Low Friction & Wear: Reduces valve stem wear and extends service intervals.
Large-Diameter Precision:
DN600 (600mm nominal diameter) design ensures compatibility with industrial-scale valves.
Tight tolerances (±0.05mm) for seamless integration into gate, ball, or butterfly valves.
Certified Quality: ISO 9001 manufacturing, FDA compliance (for water/food contact), and RoHS/REACH compliance.
Industry Applications
Oil & Gas: Replace corroded metal seats in pipeline isolation valves, wellhead controls, and refinery systems.
Chemical Processing: Resistant to sulfuric acid, chlorine, and solvents in reactor feed valves.
Water Treatment: Non-toxic, biofilm-resistant seats for potable water and wastewater systems.
Power Generation: Reliable sealing in high-pressure steam valves and geothermal energy plants.
Technical Specifications
Material: ARKPEEK-1000® (Virgin PEEK).
Key Metrics:
Tensile Strength: 90 MPa | Compressive Strength: 118 MPa.
Flammability: UL94 V-0 | Moisture Absorption: 0.15%.
Surface Hardness: Rockwell R118.
Dimensions: DN600 (customizable OD, ID, and thickness).
Pressure Rating: Up to 150 bar (dependent on valve design).
Solve Critical Valve Challenges
Leakage Prevention: Tight seal even after 10,000+ cycles.
Reduced Downtime: 3x longer lifespan than PTFE or metal seats.
Cost Efficiency: Lower maintenance and replacement costs vs. traditional materials.
Order Flexibility
Standard DN600 Inserts: Ready to ship for urgent valve repairs.
Custom Designs: Modify geometry, add grooves, or integrate backup rings.
Bulk Discounts: Competitive pricing for large orders.
_______________________________________________________________________________________________________________________________________________________________________
Other Material Choice
ARKPEEK-1000: 100%PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70% PEEK
High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.
