Tube of Polyetheretherketone

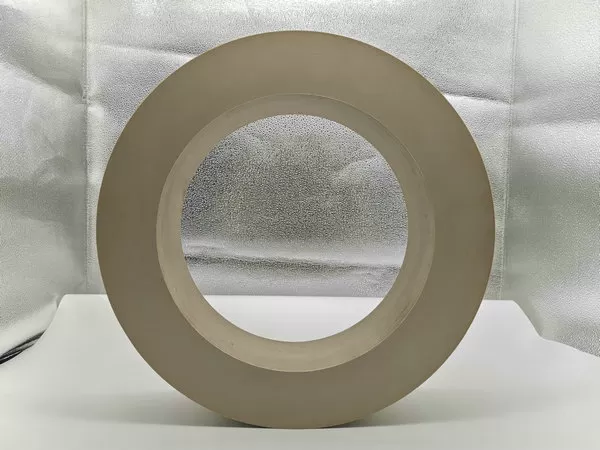

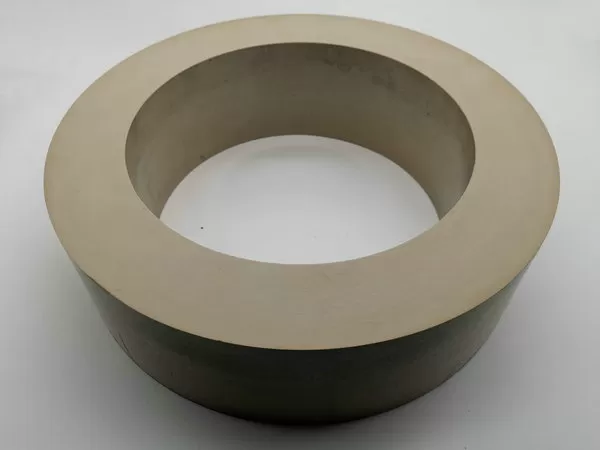

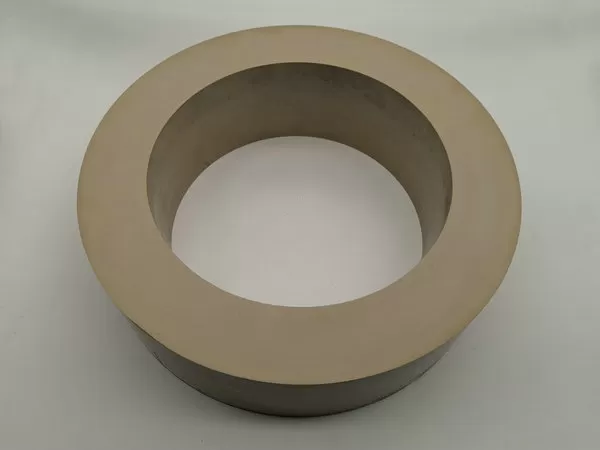

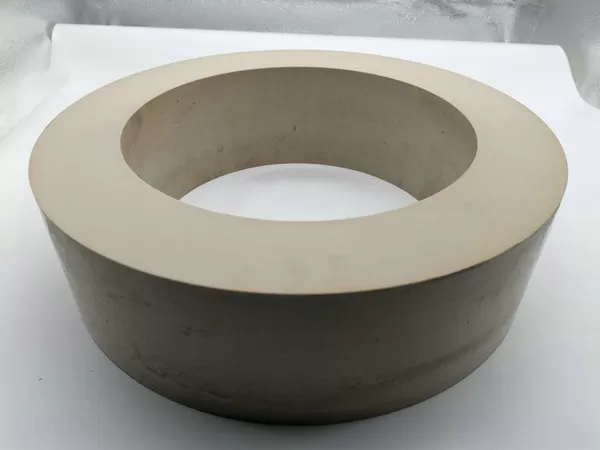

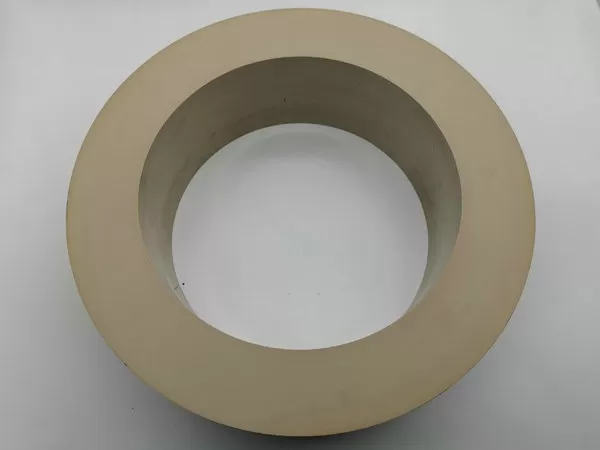

Immerse your industrial operations in unwavering reliability with our heavy wall PEEK tube, boasting an outer diameter of 360mm and inner diameter of 250mm. Crafted to endure the most challenging environments, this thermoplastic tubing excels in resisting wear, extreme temperature fluctuations, and corrosive elements. Its robust construction ensures steadfast performance, making it an ideal choice for demanding applications requiring lasting durability.
Elevate your industrial setup with our heavy wall PEEK tube measuring OD360mm x ID250mm. Engineered to withstand the rigors of tough working conditions, this tubing showcases exceptional resistance to wear and corrosion while maintaining stability in extreme temperature variations. Its sturdy design guarantees prolonged reliability, making it a preferred solution for industrial settings where durability is paramount.
Below PEEK Grades Available
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70% PEEK
High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

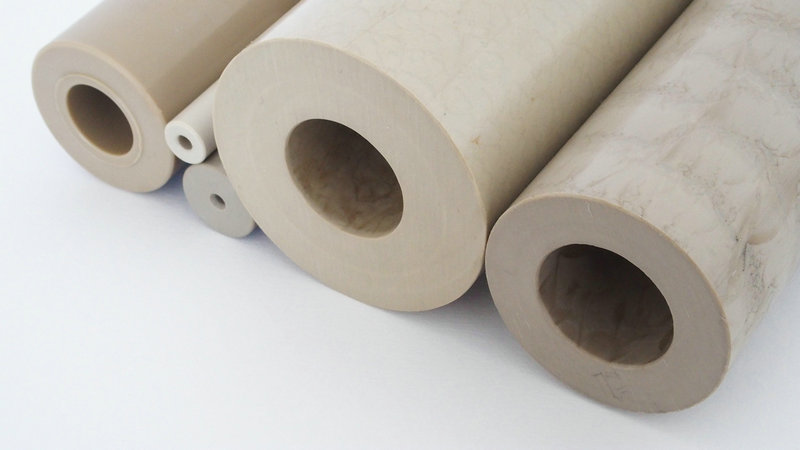

PEEK Tube Dimensions
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
