GF30 PEEK Pipe:
ARKPEEK-GF30 Glass-Filled PEEK Tubes combine 30% glass fiber reinforcement with sustainable engineering to deliver unmatched fatigue resistance, low moisture absorption, and precision for robotics, electronics, and high-stress industrial systems.
_______________________________________________________________________________________________________________________________________________________________________

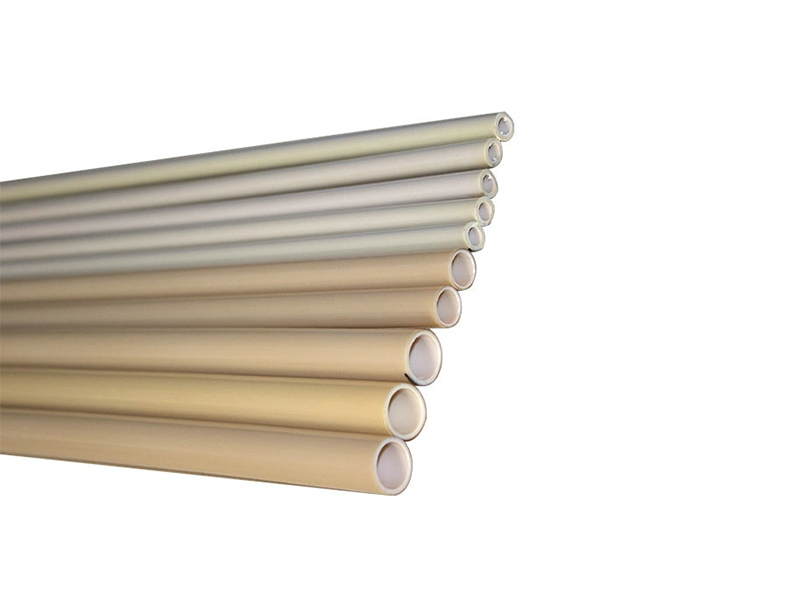

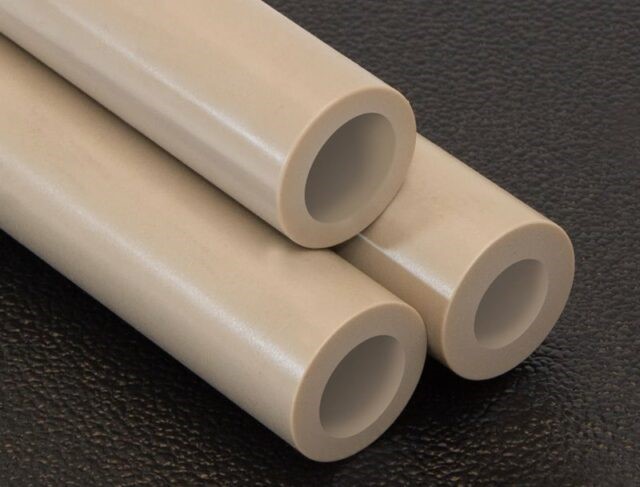

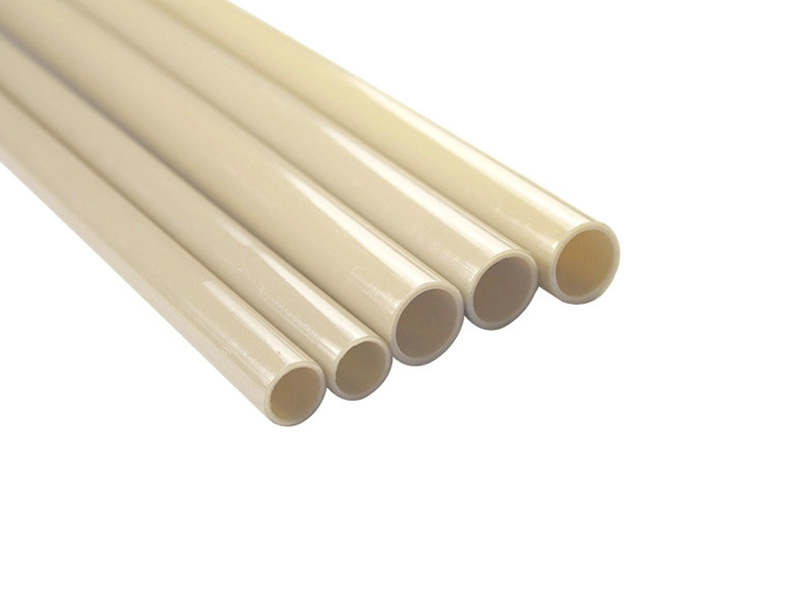

ARKPEEK-GF30 Glass-Filled PEEK Tubes are precision-engineered thermoplastic solutions designed to excel in environments where material failure is not an option. Reinforced with 30% glass fibers, these tubes enhance PEEK’s inherent properties, offering exceptional mechanical strength, thermal resilience, and resistance to harsh chemicals and abrasion.
Material & Technical Specifications
Reinforcement: 30% glass fiber for enhanced flexural modulus (≥12 GPa) and reduced creep deformation.
Thermal Performance: Continuous service temperature of 250°C (482°F) with short-term tolerance to 300°C (572°F).
Chemical Resistance: Resistant to acids, alkalis, hydrocarbons, and steam (per ASTM D543 testing).
Dimensional Precision: Tight tolerance and low CTE (2.3 x 10⁻⁵/K) for high-precision assemblies.
Biocompatibility: Compliant with ISO 10993 and USP Class VI for medical applications.
Industry-Leading Applications
Aerospace & Defense: Lightweight hydraulic tubing, thermal insulators for jet engines, and UAV component housings.
Semiconductor Manufacturing: Ultra-clean, static-free tubing for wafer handling and chemical delivery systems.
Medical Technology: MRI-compatible guide tubes, endoscope components, and sterilizable surgical instruments.
Energy & Chemical Processing: Corrosion-resistant tubing for offshore drilling, geothermal systems, and LNG transport.
Automotive Electrification: High-voltage cable conduits, EV battery cooling lines, and hydrogen fuel cell manifolds.
Why ARKPEEK-GF30 Glass-Filled Tubes?
Certified Quality: Compliant with FDA 21 CFR, UL 94 V-0 (flammability), and RoHS/REACH standards.
Custom Engineering: Tailored solutions for thin-walled designs, complex geometries, or hybrid composite integration.
Performance Guarantee: Rigorous QC testing, including DSC/TGA analysis and tensile strength validation (ASTM D638).
_______________________________________________________________________________________________________________________________________________________________________
Material Grades
ARKPEEK-1000: 100%PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.
_______________________________________________________________________________________________________________________________________________________________________
Size Table
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
