ARKPEEK Material
ARKPEEK® PEEK Hollow Bars are lightweight, high-performance bars designed for demanding industrial uses. Available in four advanced materials (CF30, GF30, MOD, and Natural PEEK), they offer heat resistance, corrosion protection, and reduced weight for automotive, aerospace, and factory equipment.
_______________________________________________________________________________________________________________________________________________________________________

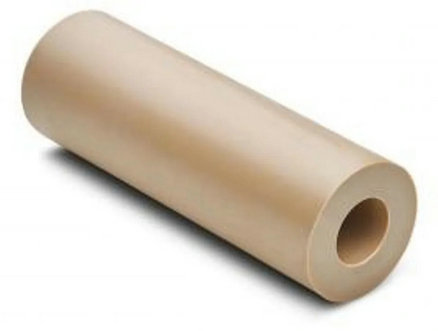

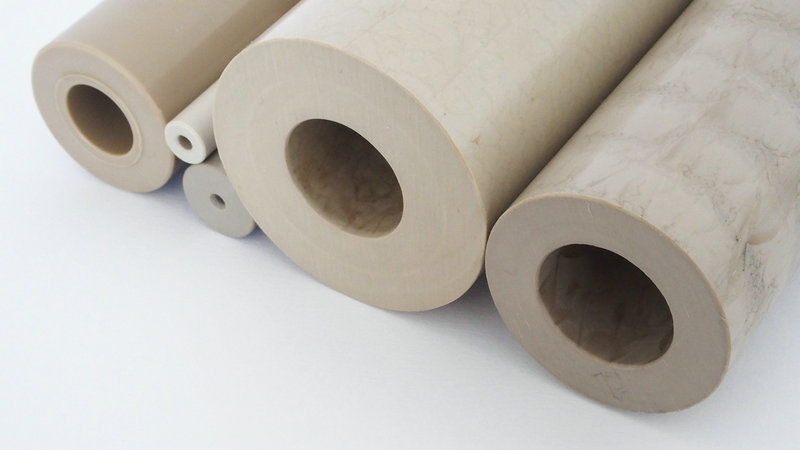

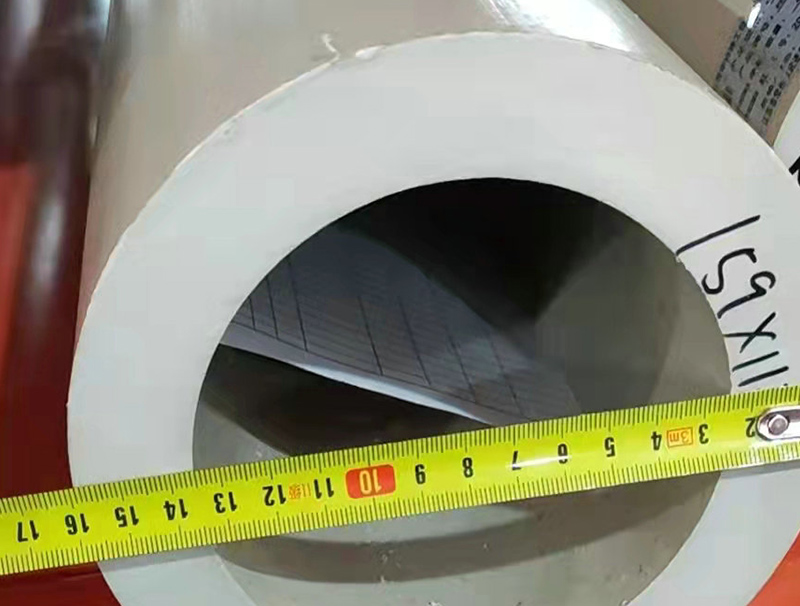

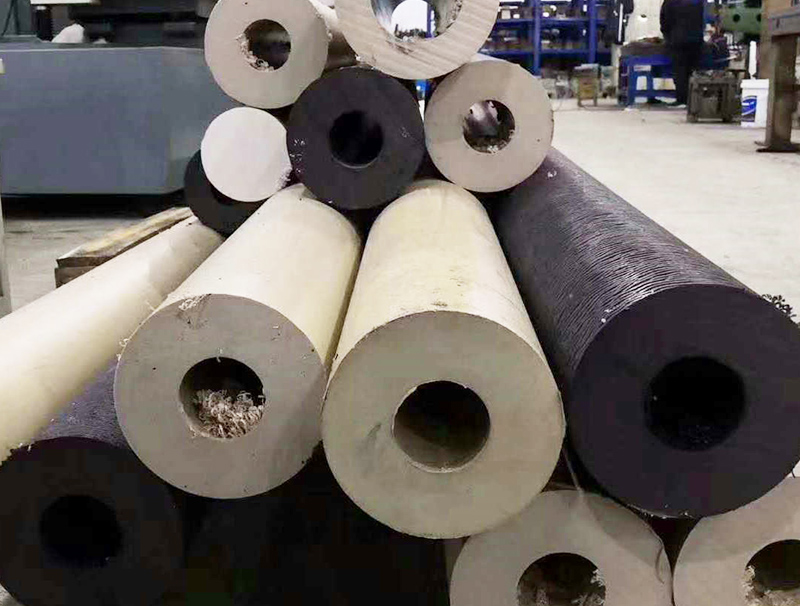

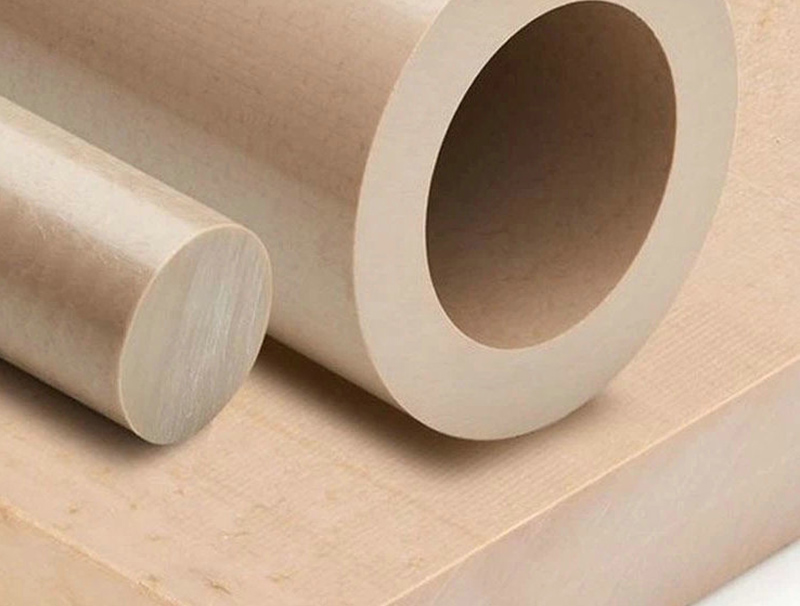

ARKPEEK® PEEK Hollow Bars are engineered to replace heavy metal bars with a lighter, tougher, and more versatile solution. Made from four specialized PEEK materials, these hollow bars save weight, resist harsh conditions, and last longer in critical applications.
Material Options & Benefits

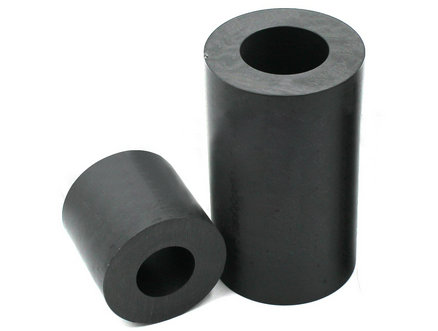

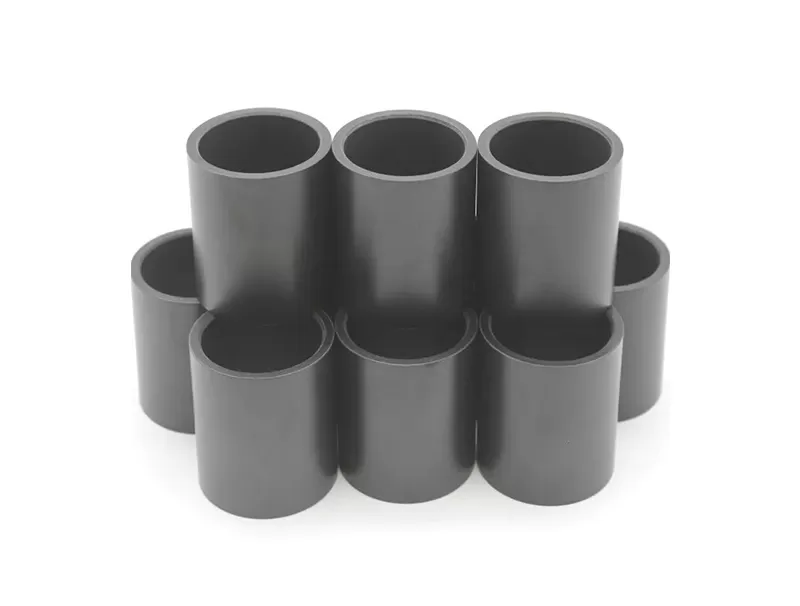

ARKPEEK®-CF30 (Carbon-Filled):
Best For: High-stress parts like robotic arms, hydraulic shafts.
Features: Extra stiffness, heat resistance (260°C), and low wear.
ARKPEEK®-GF30 (Glass-Filled):
Best For: Electrical insulation, conveyor systems, and precision machinery.
Features: Dimensional stability, chemical resistance, and no warping.
ARKPEEK®-MOD (Modified):
Best For: Friction-heavy parts (bearings, gears) and static-sensitive electronics.
Features: Ultra-low friction, anti-static options, and customizable properties.
ARKPEEK®-1000 (Natural Pure PEEK):
Best For: Medical devices, food processing, and cleanroom equipment.
Features: Biocompatible, FDA-compliant, and easy to sterilize.
Key Applications
Automotive: Lightweight engine mounts, EV battery housings, and sensor brackets.
Aerospace: Structural frames, drone components, and fuel system parts.
Factory Machinery: Conveyor rollers, bearing housings, and corrosion-resistant guides.
Energy: Solar panel frames, wind turbine bushings, and oil/gas valve components.
Medical: MRI-compatible supports, surgical tool handles, and lab equipment.
Why Choose ARKPEEK® Hollow Bars?
Weight Savings: Up to 70% lighter than steel or aluminum.
Corrosion-Free: No rusting, even in wet or chemical-heavy environments.
Easy to Machine: Cut, drill, or shape to fit your exact needs.
Long Lifespan: Outlasts plastics like nylon or PVC in tough conditions.
_______________________________________________________________________________________________________________________________________________________________________

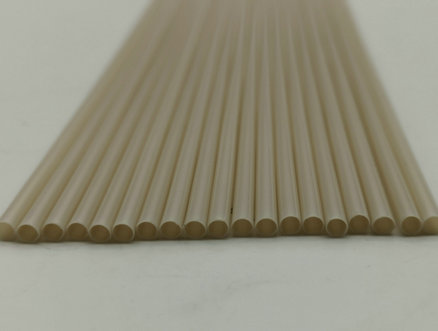

Size Table
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
