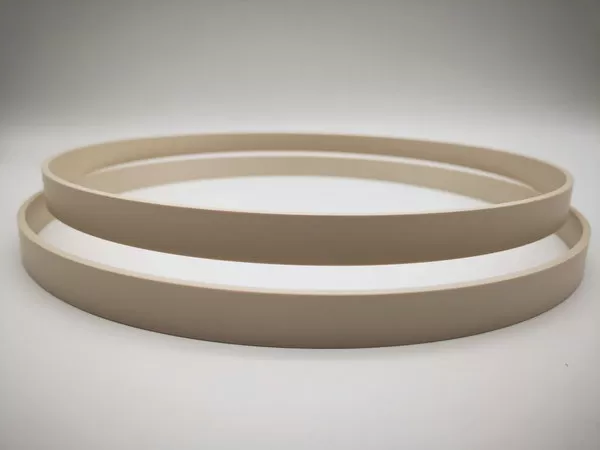

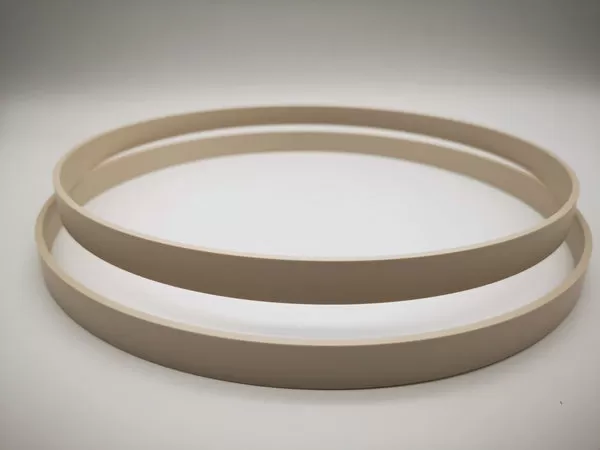

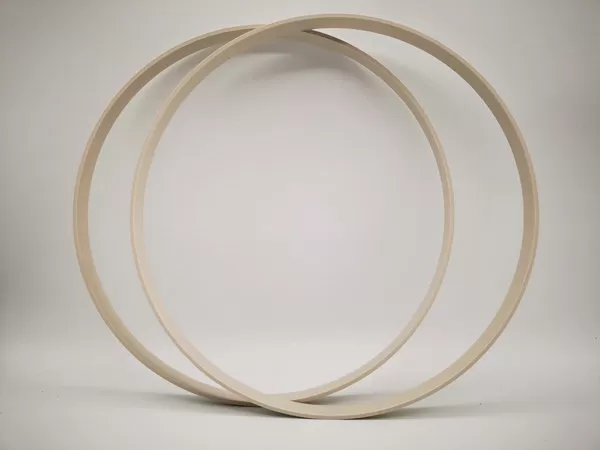

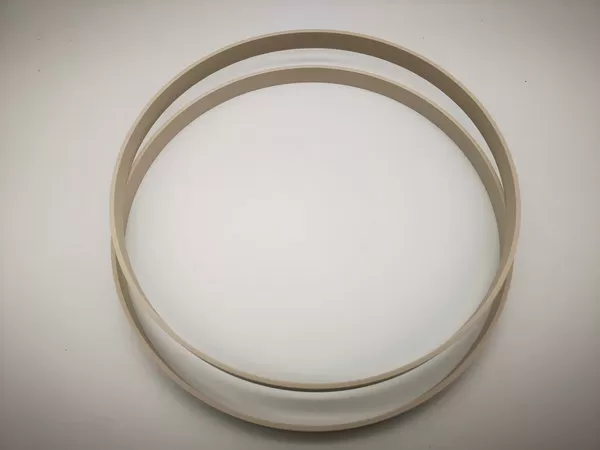

10-Inch ARKPEEK® PEEK Seals: Precision Sealing for Medium-Duty Industrial Systems
Designed for reliability in mid-scale applications, 10-Inch ARKPEEK® PEEK Seals deliver unmatched performance in harsh environments. Available in sizes from 3-inch to 28-inch, these seals combine advanced material science with precision engineering to outperform metals, elastomers, and traditional polymers.

Material Grades & Advantages

ARKPEEK-1000® (Virgin PEEK):

Chemical Purity: FDA-compliant, ideal for food/pharma and ultrapure fluid systems.

Temperature Range: -70°C to 260°C (short-term 310°C).

ARKPEEK-GF30® (30% Glass Fiber):

Dimensional Stability: Minimal thermal expansion under cyclic loads.

Applications: Steam valves, heat exchangers.

ARKPEEK-CF30® (30% Carbon Fiber):

High Strength: Handles 500+ bar pressure; static-dissipative for explosive environments.

Applications: Hydraulic pumps, compressors.

ARKPEEK-MOD® (PTFE/Graphite/Carbon Blend):

PTFE: 60% lower friction vs. standard PEEK.

Graphite: Self-lubricating for dry-running conditions.

Carbon Fiber: Abrasion-resistant for gritty environments.

Triple Reinforcement:

Applications: Slurry pumps, chemical reactors.

Why Choose 10-Inch ARKPEEK® Seals?

Medium-Duty Excellence: Optimized for 10-inch valves, pumps, and flanges in mid-scale systems.

Extreme Durability:

Resists acids, hydrocarbons, and abrasive media.

Operates continuously at 260°C and 500 bar.

Custom Sizes: Available from 3-inch to 28-inch with tailored cross-sections (O-ring, T-seal).

Industry Applications

Chemical Processing:

MOD-grade seals for sulfuric acid reactors.

1000-grade seals for FDA-compliant fluid transfer.

Oil & Gas:

CF30 seals for hydraulic fracturing pumps.

Power Generation:

GF30 seals for high-pressure steam valves.

Water Treatment:

Corrosion-resistant seals for chlorination systems.

Technical Specifications

Size: 10-inch nominal diameter (3"-28" custom sizes).

Pressure Rating: 150–500 bar (grade-dependent).

Temperature Range: -70°C to +260°C (continuous).

Key Metrics:

Tensile Strength: 90 MPa (1000) to 210 MPa (CF30).

Flammability: UL94 V-0 (all grades).

Friction Coefficient: As low as 0.12 (MOD grade).

Solve Your Sealing Challenges

Leak-Free Performance: Precision-machined to ISO 9001 standards.

Cost Savings: 50% longer lifespan vs. PTFE seals.

Fast Turnaround: Prototyping and bulk orders available.

Upgrade to 10-Inch ARKPEEK® Seals
Whether you’re sealing corrosive chemicals or high-pressure steam, our 10-inch PEEK seals are built to endure. Request a quote, sample, or technical specs today—global shipping included!
