MOD PEEK Material

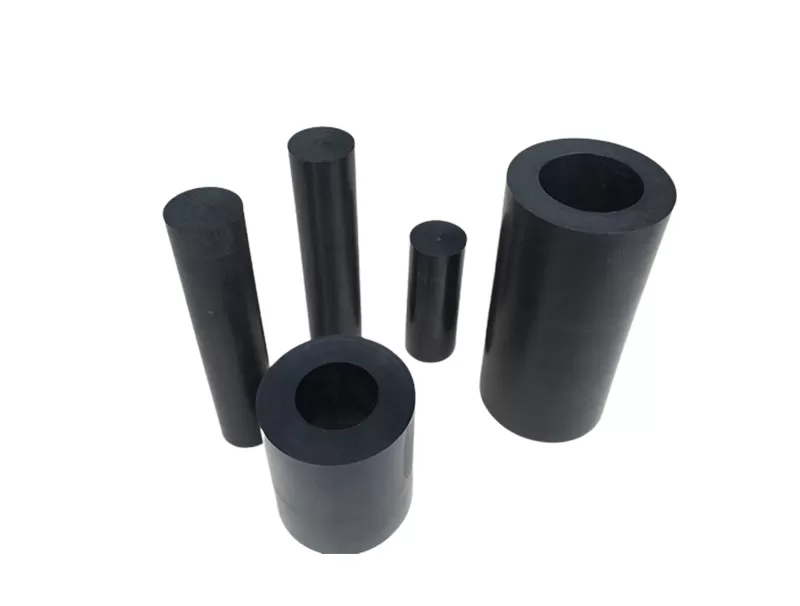

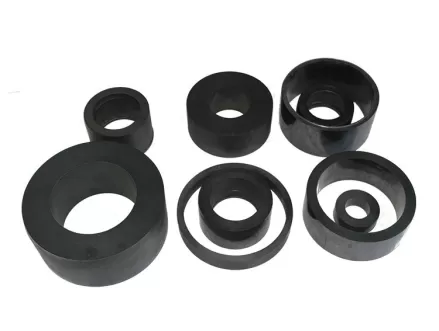

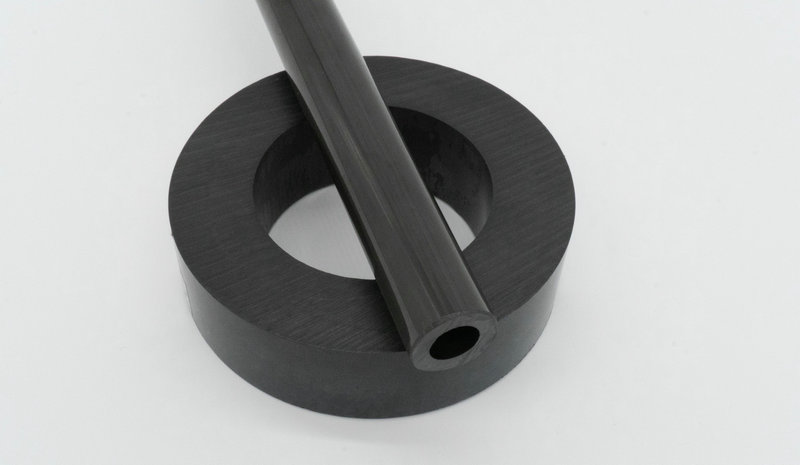

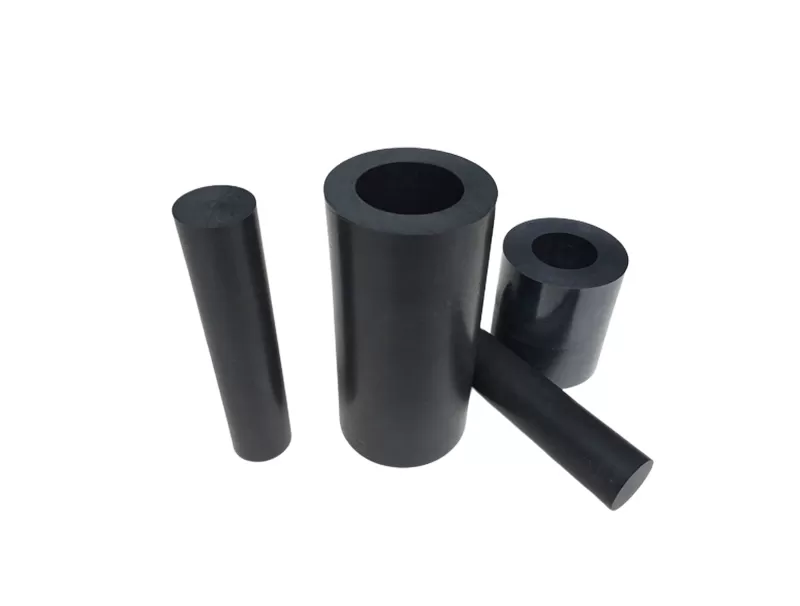

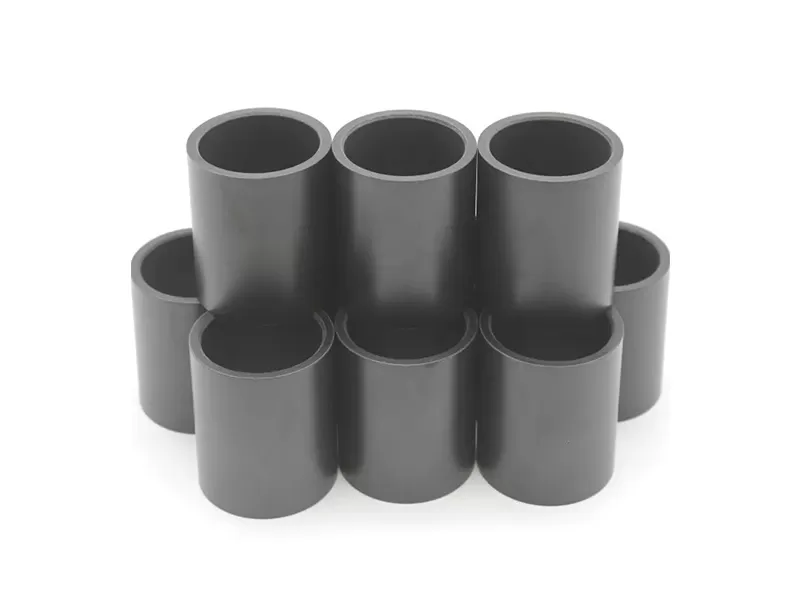

ARKPEEK-MOD® PEEK MOD Tubes are advanced plastic tubes designed to handle extreme heat, chemicals, and wear. With customizable features like improved heat transfer and static resistance, these tubes are ideal for automotive systems, factory machinery, and electronic devices._______________________________________________________________________________________________________________________________________________________________________

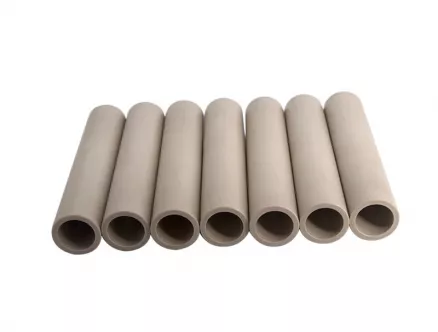

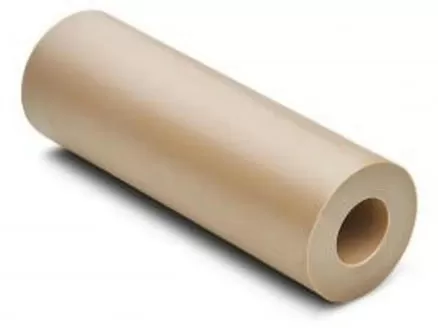

ARKPEEK-MOD® PEEK MOD Tubes are a smarter, stronger version of standard PEEK plastic tubes. Engineered with special modifications, these tubes solve common industrial challenges like overheating, friction, and electrical interference, making them a go-to choice for engineers and manufacturers.
Key Features
Heat Resistance: Works reliably in temperatures up to 260°C-perfect for engines, motors, and hot machinery.
Low Friction: Reduces wear in moving parts like bearings, gears, and pumps.
Chemical Proof: Handles oils, fuels, and harsh cleaning agents without cracking or corroding.
Custom Options: Choose additives for static resistance, extra strength, or better heat distribution.
Lightweight: Replaces metal parts in cars, drones, and gadgets to save weight and energy.
Where to Use PEEK MOD Tubes:
Automotive: Fuel lines, sensor housings, and electric vehicle battery systems.
Factories: Conveyor belt rollers, hydraulic systems, and heat-resistant machine parts.
Electronics: Protective casings for circuit boards and static-sensitive components.
Medical: Sterilizable tubing for lab equipment and diagnostic devices.
Energy: Pipes for solar panels, wind turbines, and oil/gas equipment.
Why Choose ARKPEEK-MOD®?
Trusted Quality: Made to meet strict industry standards for safety and durability.
Easy to Install: Available in standard sizes or custom-cut for your exact needs.
Cost-Effective: Lasts longer than metal or basic plastics, reducing replacements.
_______________________________________________________________________________________________________________________________________________________________________
ARKPEEK Materials
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

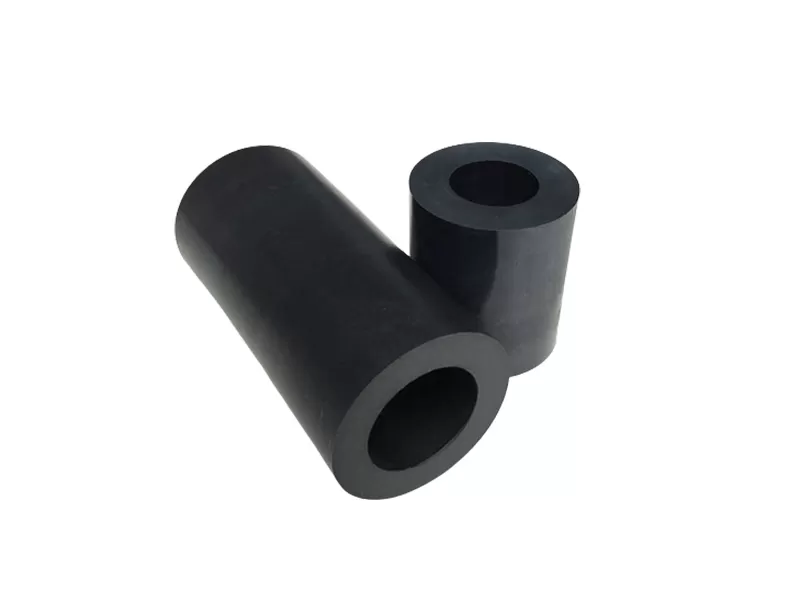

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70% PEEK
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.
_______________________________________________________________________________________________________________________________________________________________________
Size Table
NO. | Dimension OD*ID (mm) | Weight ( g ) |
1 | ∅1.6*∅0.13*1000 | 2.6 |
2 | ∅1.6*∅0.25*1000 | 2.5 |
3 | ∅1.6*∅0.5*1000 | 2.4 |
4 | ∅1.6*∅0.75*1000 | 2.0 |
5 | ∅1.6*∅1*1000 | 1.6 |
6 | ∅2.33*∅1.6*1000 | 2.9 |
7 | ∅2.8*∅2.5*1000 | 1.6 |
8 | ∅3*∅2.67*1000 | 1.9 |
9 | ∅3.2*∅1*1000 | 9.4 |
10 | ∅3.2*∅1.6*1000 | 7.8 |
11 | ∅5*∅2.5*1000 | 19.1 |
12 | ∅5*∅4.5*1000 | 5.8 |
13 | ∅7.5*∅4*1000 | 42.6 |
14 | ∅10.2*∅8*1000 | 40.9 |
15 | ∅12*∅4*1000 | 81.6 |
16 | ∅12.45*∅8.88*1000 | 77.7 |
17 | ∅29*∅18*1000 | 527.6 |
18 | ∅39*∅31*1000 | 571.5 |
19 | ∅80*∅30*1000 | 5612.8 |
20 | ∅90*∅40*1000 | 6633.3 |
21 | ∅100*∅50*1000 | 7653.8 |
22 | ∅110*∅60*1000 | 8674.3 |
23 | ∅130*∅60*1000 | 13572.7 |
24 | ∅140*∅80*1000 | 13470.6 |
25 | ∅160*∅90*1000 | 17858.8 |
26 | ∅168*∅132*1000 | 11021.0 |
27 | ∅180*∅110*1000 | 20716.2 |
28 | ∅190*∅130*1000 | 19593.6 |
29 | ∅190*∅140*1000 | 16838.3 |
30 | ∅200*∅130*1000 | 23573.6 |
31 | ∅220*∅150*1000 | 26431.0 |
32 | ∅240*∅170*1000 | 29288.4 |
33 | ∅257*∅230*1000 | 13418.6 |
34 | ∅250*∅190*1000 | 26941.0 |
35 | ∅260*∅210*1000 | 23981.8 |
36 | ∅280*∅210*1000 | 35003.2 |
37 | ∅280*∅230*1000 | 26022.0 |
38 | ∅300*∅250*1000 | 28063.8 |
39 | ∅320*∅300*1000 | 12654.2 |
40 | ∅340*∅250*1000 | 54188.6 |
41 | ∅360*∅280*1000 | 52249.6 |
42 | ∅580*∅450*1000 | 136645.0 |
