PEEK Seal 3inch

_______________________________________________________________________________________________________________________________________________________________________

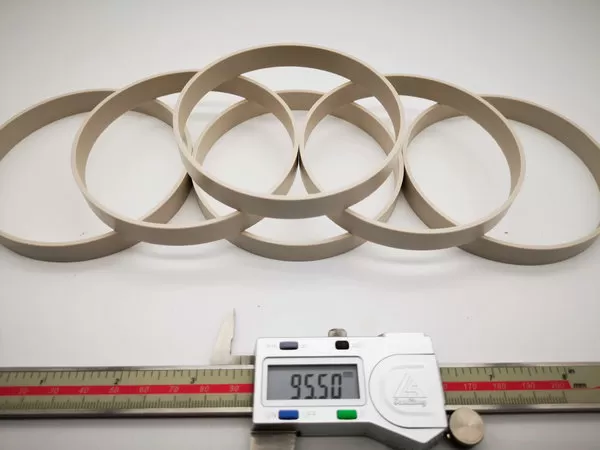

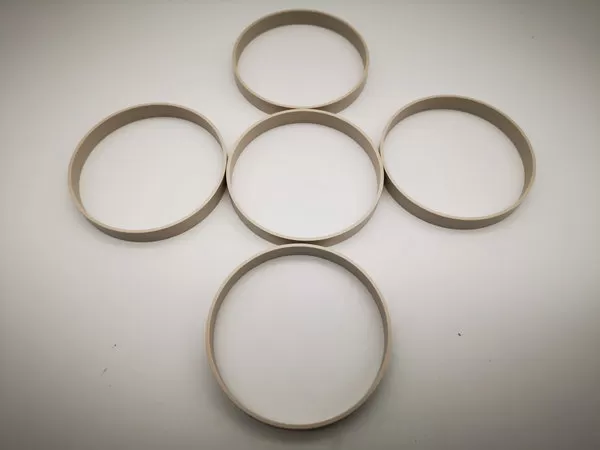

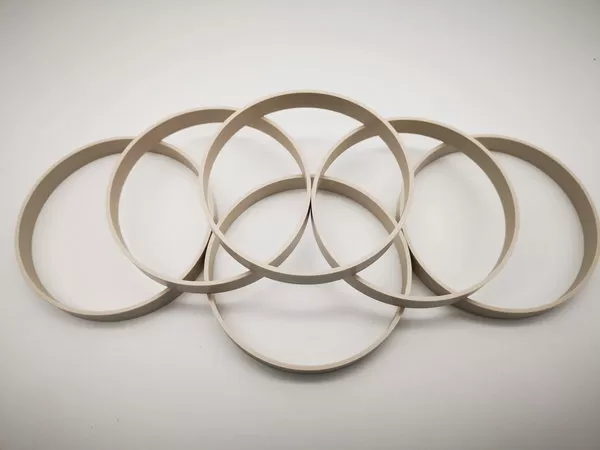

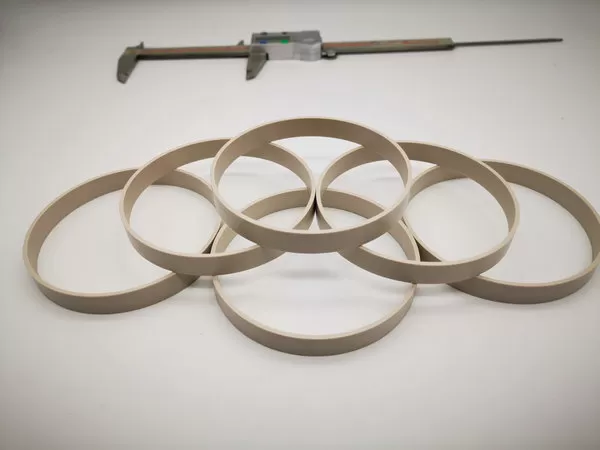

3-Inch ARKPEEK® PEEK Seals: Reliable Sealing for Industrial Challenges
Designed for reliability in high-stress industrial environments, 3-Inch ARKPEEK® PEEK Seals deliver unmatched performance in extreme conditions. These seals combine advanced material science with precision engineering to outperform metals, elastomers, and traditional polymers in critical applications.

Material Grades & Advantages

ARKPEEK-1000® (Virgin PEEK):

Chemical Purity: FDA-compliant for food/pharma and ultrapure fluid systems.

Chemical Resistance: Resists acids, solvents, and hydrocarbons without leaching.

ARKPEEK-GF30® (30% Glass Fiber):

Dimensional Stability: Minimal thermal expansion under cyclic loads.

Applications: Steam valves, heat exchangers.

ARKPEEK-CF30® (30% Carbon Fiber):

High Strength: Handles 500+ bar pressure; static-dissipative for explosive environments.

Applications: Hydraulic pumps, compressors.

ARKPEEK-MOD® (PTFE/Graphite/Carbon Blend):

PTFE: Reduces friction by 60% vs. standard PEEK.

Graphite: Self-lubricating for dry-running conditions.

Carbon Fiber: Prevents wear in abrasive environments.

Triple Reinforcement:

Applications: Slurry pumps, chemical reactors.

Why Choose 3-Inch ARKPEEK® Seals?

Extreme Durability: Resists acids, hydrocarbons, and abrasive media. Operates continuously at 260°C and 500 bar.

Custom Sizes: Available from 3-inch to 28-inch with tailored cross-sections (O-ring, T-seal).

Industry Applications

Chemical Processing: MOD-grade seals for sulfuric acid reactors. 1000-grade seals for FDA-compliant fluid transfer.

Oil & Gas: CF30 seals for hydraulic fracturing pumps.

Power Generation: GF30 seals for high-pressure steam valves.

Water Treatment: Corrosion-resistant seals for chlorination systems.

Technical Specifications

Size: 3-inch nominal diameter (3"-28" custom sizes).

Pressure Rating: 150–500 bar (grade-dependent).

Temperature Range: -70°C to +260°C (continuous).

Key Metrics:

Tensile Strength: 90 MPa (1000) to 210 MPa (CF30).

Flammability: UL94 V-0 (all grades).

Friction Coefficient: As low as 0.12 (MOD grade).

Solve Your Sealing Challenges

Leak-Free Performance: Precision-machined to ISO 9001 standards.

Cost Savings: 50% longer lifespan vs. PTFE seals.

Fast Turnaround: Prototyping and bulk orders available.

Upgrade to ARKPEEK® Seals
From chemical plants to power generation facilities, our 3-inch PEEK seals ensure reliability in critical systems. Request a quote, sample, or technical specs today—global shipping and expert support included!
