PEEK Tube PEEK Pipe Natural

_______________________________________________________________________________________________________________________________________________________________________

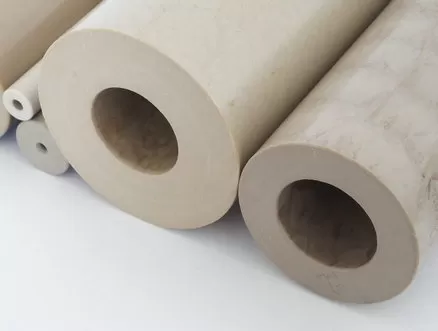

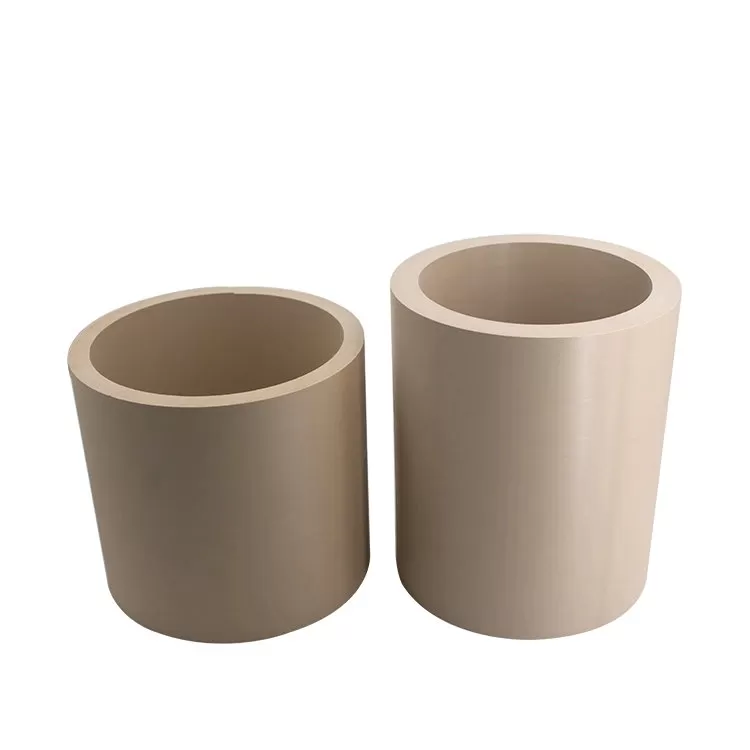

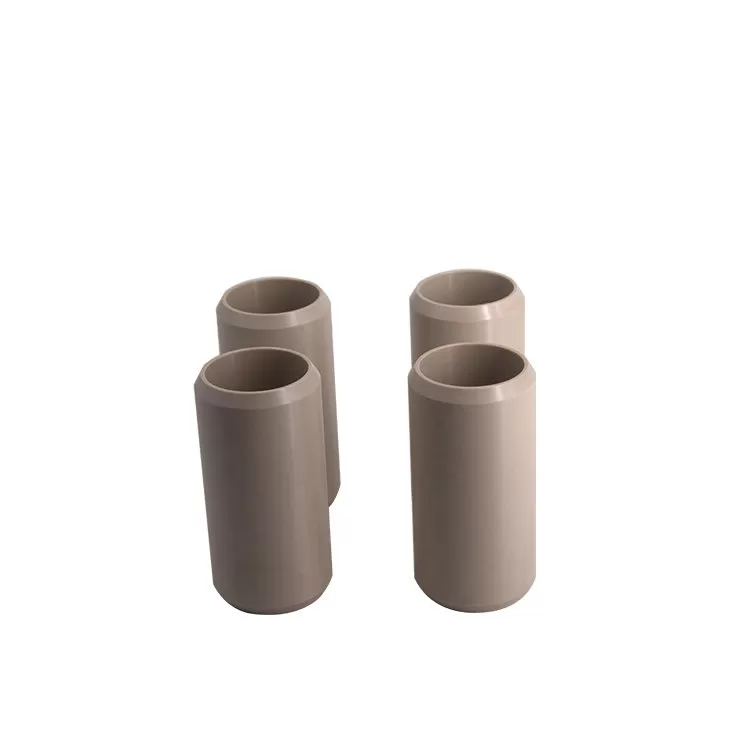

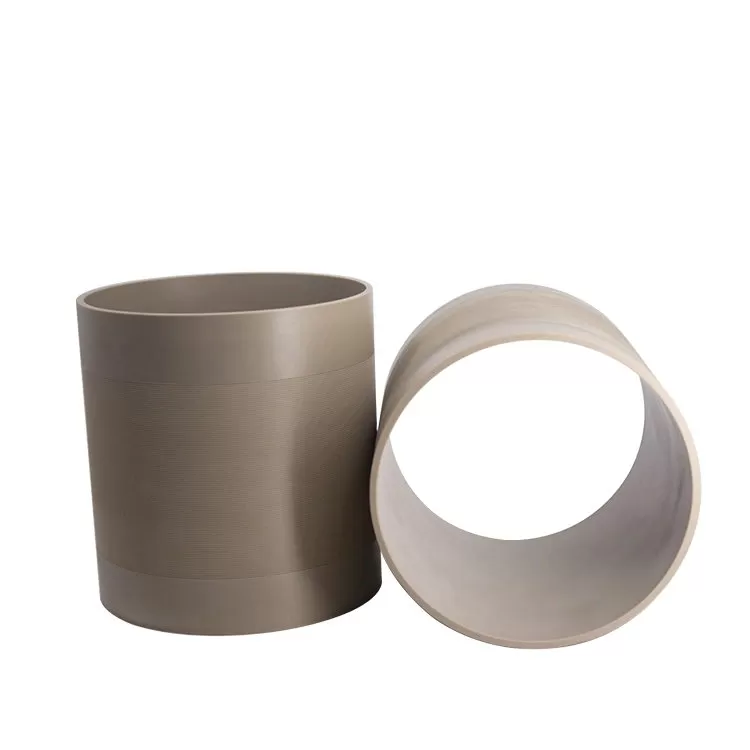

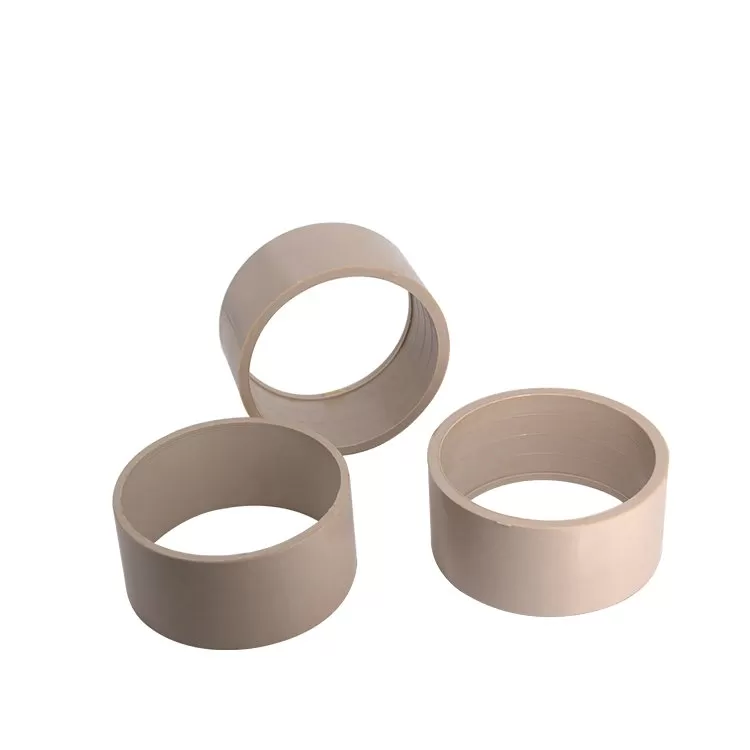

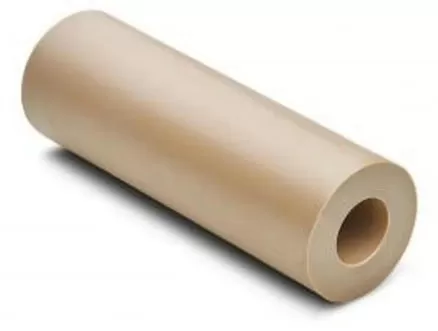

ARKPEEK Natural PEEK Tube & Pipe – Pure Performance for Demanding Environments
Engineers and manufacturers in industries like healthcare, aerospace, and chemical processing require materials that combine purity, durability, and precision. ARKPEEK’s Natural PEEK Tubes and Pipes provide an unfilled, high-performance solution designed to solve leaks, contamination risks, and material degradation in extreme conditions.

Key Features & Technical Properties

Virgin PEEK Material: Unfilled, natural PEEK tubing ensures maximum chemical purity and biocompatibility (ISO 10993 compliant).

Superior Thermal Resistance: Withstands continuous temperatures up to 260°C (500°F) without deformation.

Chemical Inertness: Resists acids, solvents, and steam, ideal for corrosive environments.

Precision Machining: Tight tolerances (±0.1mm) for seamless integration into pumps, connectors, and fluid systems.

Available Sizes: Stocked in natural PEEK tube sizes from 5mm to 580mm OD; custom dimensions on request.

Applications Solving Real-World Challenges

Medical & Pharmaceutical

Surgical Instruments: Natural PEEK tubing is biocompatible and sterilizable, making it ideal for reusable surgical tools.

Implantable Devices: Used in spinal implants, dental tools, and joint replacements due to its strength and compatibility with human tissue.

Drug Delivery Systems: Resists aggressive chemicals in IV pumps and infusion systems.

Aerospace & Defense

Hydraulic & Fuel Systems: Lightweight, high-strength natural PEEK pipes reduce weight while maintaining performance in extreme temperatures.

Electrical Insulation: Protects wiring and connectors in high-voltage systems.

Bearings & Bushings: Low friction and wear resistance extend component life in moving parts.

Semiconductor Manufacturing

Chemical Delivery Systems: Natural PEEK tubing resists corrosive chemicals like sulfuric acid and ammonia.

Vacuum Systems: Maintains integrity in high-vacuum environments, ensuring contamination-free processes.

Food & Beverage Processing

Sanitary Tubing: FDA-compliant natural PEEK pipes are safe for food contact and withstand high-temperature cleaning.

Pumps & Valves: Resists wear and corrosion in liquid handling systems.

Oil & Gas

Downhole Tools: Natural PEEK tubing withstands high pressure, temperature, and corrosive fluids in drilling equipment.

Seals & Gaskets: Provides reliable sealing in valves and connectors exposed to harsh chemicals.

Automotive

Fuel Systems: Resists gasoline, diesel, and biofuels, ensuring long-term performance.

Electrical Connectors: Natural PEEK tubing insulates and protects wiring in high-temperature engine compartments.

Industrial Machinery

Wear Strips & Guides: Low friction and high wear resistance reduce maintenance in conveyor systems.

Fluid Handling: Natural PEEK pipes are used in pumps and compressors for chemical processing.

Why Choose ARKPEEK Natural PEEK Tubes?

Certified Quality: ISO 13485-certified manufacturing for medical-grade applications.

Custom Solutions: Tailor natural PEEK pipe dimensions, wall thickness, and surface finishes.

Cost Savings: Reduced downtime and replacement costs due to extended service life.

Technical Specifications

Material: Unfilled (natural) PEEK, UL 94 V-0 flame-rated.

Standards: ASTM F2026, RoHS, REACH compliant.

Key Properties:

Tensile Strength: 90–100 MPa

Flexural Modulus: 3.6 GPa

Wear Resistance: Low friction coefficient (0.3–0.4).

_______________________________________________________________________________________________________________________________________________________________________

PEEK Tube Material Grades

ARKPEEK-1000: 100%PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

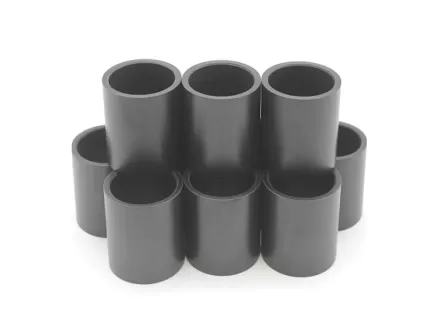

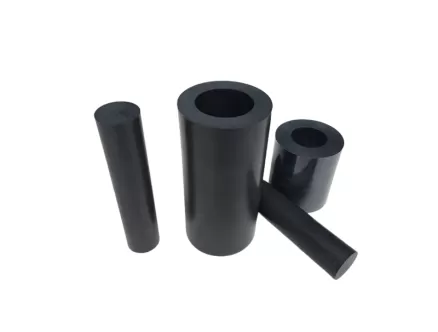

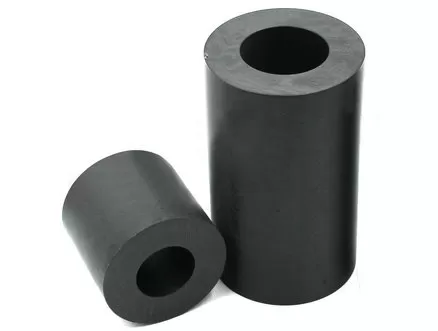

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite +70% PEEK

High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.

_______________________________________________________________________________________________________________________________________________________________________

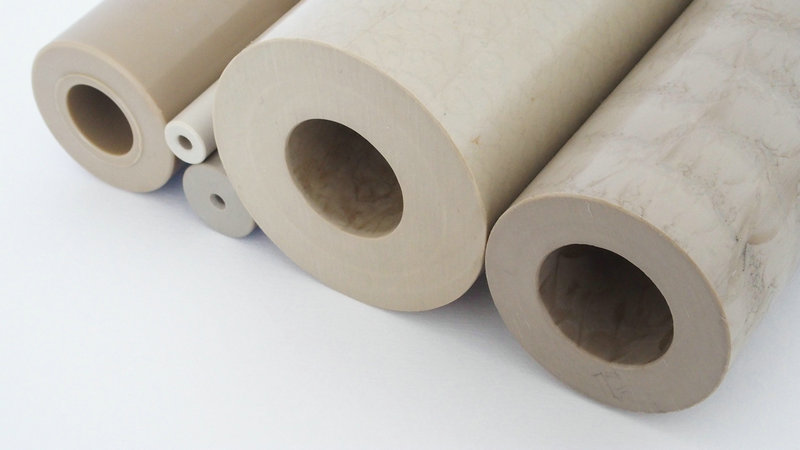

Natural PEEK Tube Sizes
