Tube PEEK Material
The PEEK Tube 203x122mm (example size) is engineered for machining high-performance industrial components. Made from ARKPEEK® grades (GF30, CF30, MOD, 1000), this tubing withstands temperatures up to 260°C, harsh chemicals, and mechanical stress. Available in-stock or custom-made sizes (OD/ID), it's ideal for aerospace, oil/gas, and medical industries.
_______________________________________________________________________________________________________________________________________________________________________

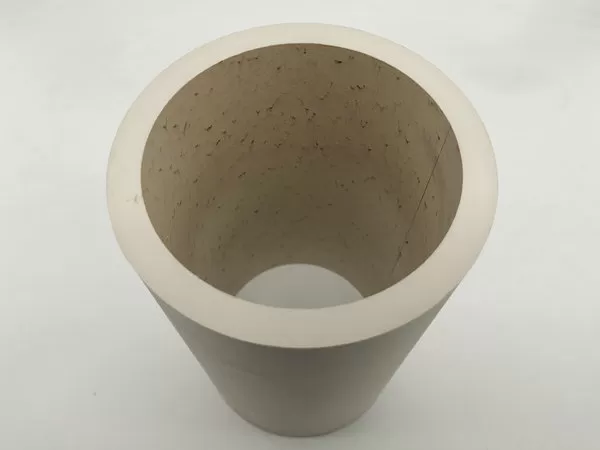

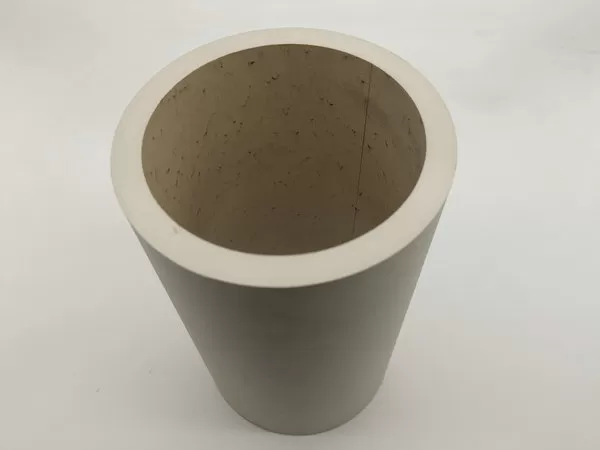

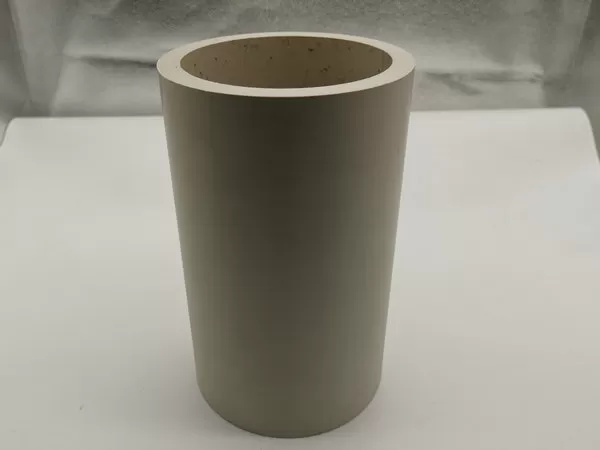

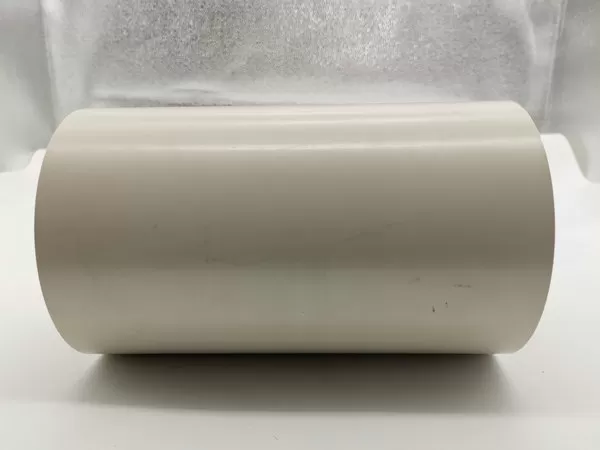

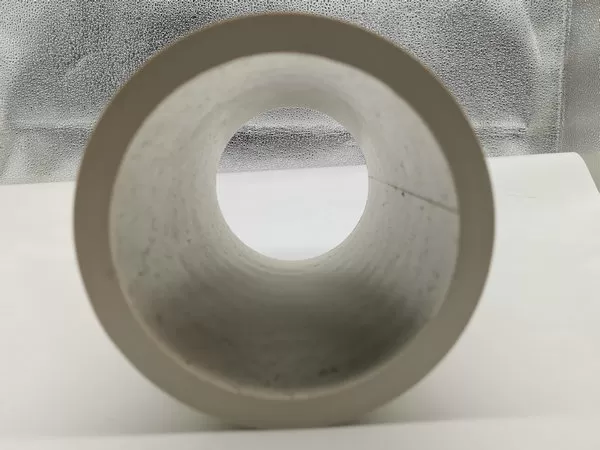

PEEK Tube 203x122mm: Precision Machining Solutions for Demanding Applications
Our PEEK Tube 203x122mm leverages the advanced properties of ARKPEEK®’s specialized grades—GF30 (30% glass fiber), CF30 (30% carbon fiber), MOD (PTFE/graphite), and 1000 (virgin PEEK)—to deliver tailored solutions for industries where reliability is non-negotiable. While 203x122mm serves as an example, we offer custom PEEK tubing sizes to meet your exact specifications, ensuring seamless integration into valves, bearings, seals, and fluid systems.
Key Advantages
Extreme Environment Performance:
GF30: High rigidity and dimensional stability for heavy-load applications.
CF30: Enhanced strength and thermal conductivity.
MOD: Ultra-low friction for dynamic parts.
1000: Maximum chemical purity for medical/food industries.
Thermal Resilience: Operate continuously at 260°C (500°F) with short-term tolerance up to 310°C (all grades).
Chemical Resistance: Impervious to acids, hydrocarbons, and steam, perfect for oil/gas refineries and chemical plants.
Material-Specific Benefits
Customization & Availability:
Stock Sizes: Immediate shipping for 203x122mm and other popular dimensions.
Tailored Solutions: Adjust OD, ID, wall thickness, and material grade.
Industry-Specific Applications
Oil & Gas: GF30 and MOD tubes for corrosion-resistant valves and pumps.
Aerospace: CF30 and GF30 for lightweight, heat-resistant engine components.
Medical: 1000-grade biocompatible tubing for surgical tools.
Semiconductors: Ultra-smooth 1000-grade tubing for contamination-free processes.
Technical Specifications
Example Dimensions: 203mm OD x 122mm ID (customizable).
Material Grades:
ARKPEEK-1000®: Tensile Strength: 90 MPa | Dielectric Strength: 18 kV/mm.
ARKPEEK-CF30®: Tensile Strength: 210 MPa | Compressive Strength: 240 MPa.
ARKPEEK-GF30®: Tensile Strength: 155 MPa | Compressive Strength: 215 MPa.
ARKPEEK-MOD®: Friction Coefficient: 0.18 | Wear Resistance: 40% better than standard PEEK.
Certifications: UL94 V-0, FDA, RoHS, ISO 13485 (medical).
Why Partner With Us?
Rapid Turnaround: In-stock tubing ships in 48 hours; custom orders in 2–3 weeks.
Engineering Support: Free guidance on material selection and machining best practices.
Global Compliance: HS code documentation for hassle-free logistics.
Upgrade to ARKPEEK® Tubing Today
Whether you need the 203x122mm example size or a fully custom solution, our PEEK tubing ensures longevity and precision in the toughest environments. Request a quote, sample, or technical datasheet now!
_______________________________________________________________________________________________________________________________________________________________________

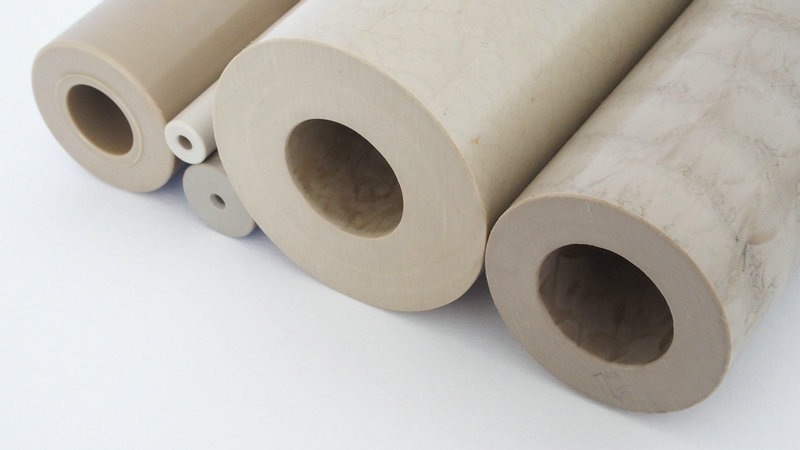

Industrial PEEK Tube Grades
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70% PEEK
High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.
_______________________________________________________________________________________________________________________________________________________________________
Industrial PEEK Tube Dimensions
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
