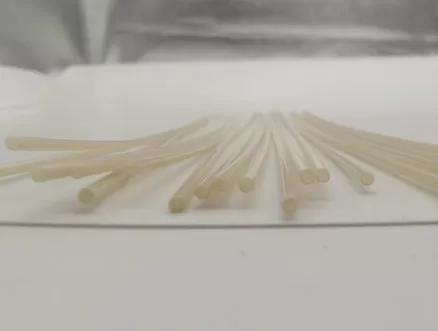

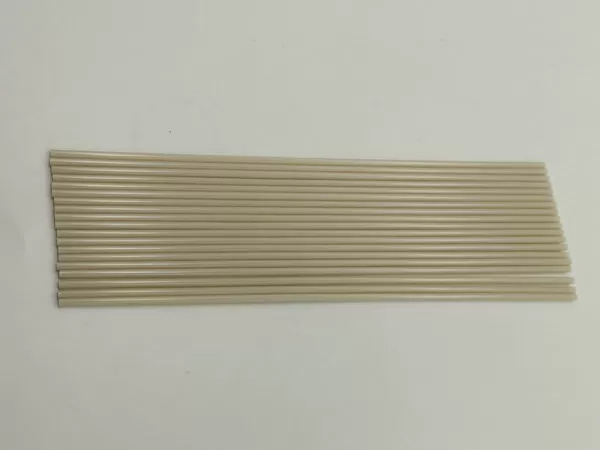

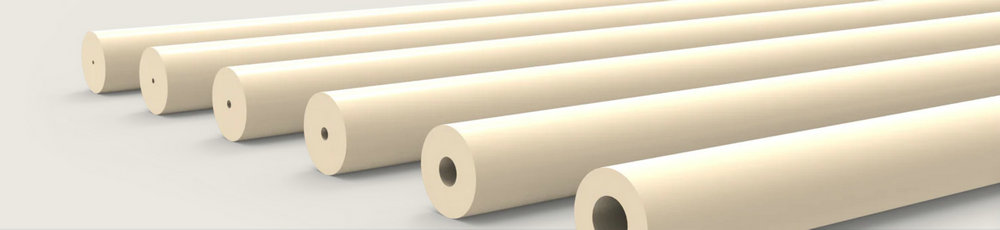

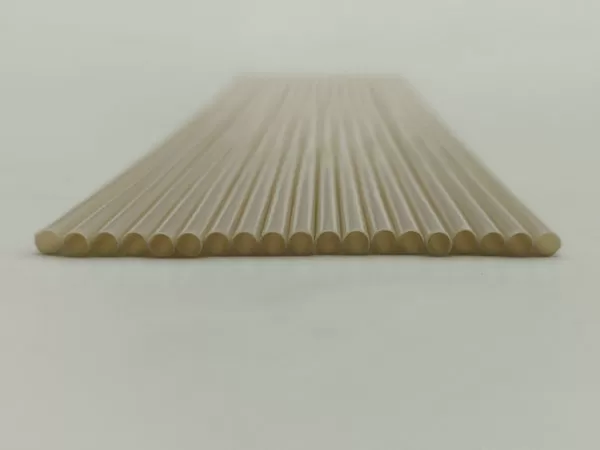

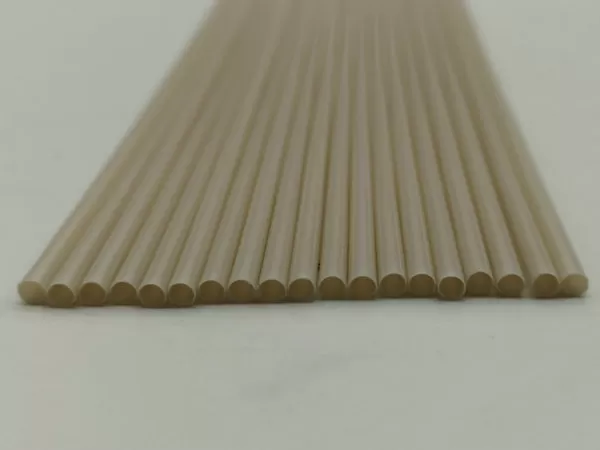

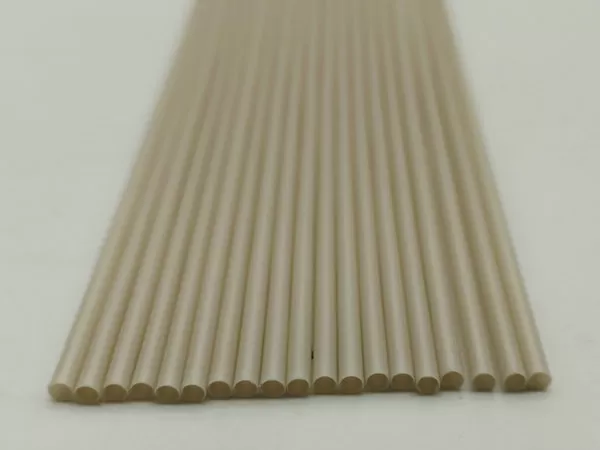

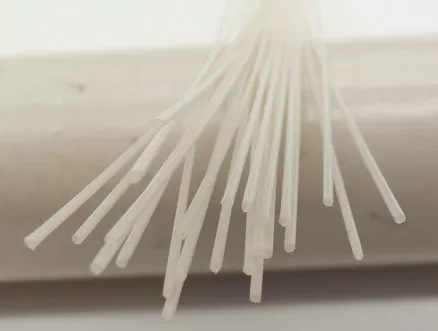

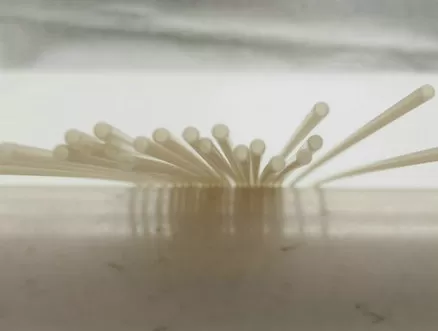

PEEK Tubing Natural

Natural PEEK Tubing Properties

High precision PEEK tubing in natural color is the perfect solution for applications that require reliable and durable tubing that is biocompatible, resistant to high temperatures, chemicals, and radiation. Made from high-quality polyetheretherketone (PEEK) material, our tubing is reliable and versatile, making it ideal for a wide range of industries. Our natural high precision PEEK tubing is available in custom sizes to meet your specific needs. Choose our high precision PEEK tubing in natural color for your next project and experience the benefits of tubing that meets your exact specifications. With excellent chemical resistance and biocompatibility, our tubing is ideal for a wide range of applications.


Description

PEEK Tubing Natural


_______________________________________________________________________________________________________________________________________________________________________


ARKPEEK-1000 Natural PEEK Tubing – Unmatched Purity for Mission-Critical Applications

Introducing ARKPEEK-1000 Natural PEEK Tubing, engineered from unfilled, virgin polyether ether ketone (PEEK) to meet the stringent demands of HPLC, biopharmaceutical, and high-purity fluidic systems. Free from additives, fillers, or colorants, this tubing ensures ultra-low extractables, exceptional transparency to contaminants, and compliance with the world’s most rigorous regulatory standards.


Why ARKPEEK-1000 Natural Stands Out

Ultra-Pure Polymer Base: Unmodified PEEK resin guarantees <0.1% extractables under aggressive solvent exposure, critical for LC-MS, pharmaceutical QC, and biologics manufacturing.

High-Pressure Resilience: Maintains structural integrity at 10,000+ psi, ideal for UHPLC column connections, preparative chromatography, and supercritical fluid systems.

Broad Chemical Inertness: Resists hydrolysis, acids (e.g., TFA, HCl), bases, and polar solvents (acetonitrile, DMSO), ensuring compatibility with reversed-phase, ion-pairing, and size-exclusion chromatography.

Thermal & Sterilization Stability: Operates from -50°C to 260°C and withstands repeated autoclave, gamma, or EtO sterilization cycles without degradation.


Certified for Regulated Industries

USP Class VI, FDA 21 CFR, and ISO 10993: Compliant for direct contact with drugs, biologics, and implantable medical devices.

ISO 9001 & ISO 13485 Manufacturing: Full material traceability, lot control, and cleanroom packaging (ISO Class 5) for GMP environments.

REACH/RoHS/EP 3.1.3: Globally compliant for pharmaceutical, food, and semiconductor markets.


Applications

Analytical Labs: Low-bleed tubing for high-sensitivity mass spectrometry, capillary electrophoresis, and dissolution testing.

Biopharmaceutical: Sterile fluid transfer in single-use bioreactors, buffer preparation, and vaccine fill-finish systems.

Medical Devices: Implantable drug delivery pumps, surgical robotics, and diagnostic cartridges requiring biocompatibility.

Semiconductor: Ultra-clean chemical delivery for wafer etching, CMP, and photolithography processes.


Technical Features & Customization

Smooth Bore Design: Electropolished inner surface minimizes protein adsorption and particulate shedding.

Precision Tolerances: ±0.02mm OD/ID consistency for leak-free connections with Swagelok, HPLC fittings, or microfluidic chips.

Flexible Configurations: Available in spooled, pre-cut, or coiled formats; custom lengths up to 500m for OEM integration.


Why Choose ARKPEEK-1000 Natural?

Zero Additives: Ideal for applications where fillers (e.g., glass, carbon) could interfere with analytical results or biocompatibility.

Reduced Carryover: Inert surface chemistry ensures reproducible results in multi-sample workflows.

Global Support: Technical documentation, chemical compatibility charts, and dedicated engineering assistance.


_______________________________________________________________________________________________________________________________________________________________________


PEEK Tubing Diameters Chart

Product specifications
NameODID
PEEK Capillary1(±0.05)0.45(±0.05)
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.13
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.25
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.50
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ0.75
1/16"PEEK CapillaryΦ1.5-Φ1.60Φ1.25
PEEK CapillaryΦ1.7-Φ1.8Φ0.66-Φ0.8
PEEK CapillaryΦ2.5Φ1.5
PEEK CapillaryΦ2.5Φ1.9
PEEK CapillaryΦ2.45Φ2.1
1/8"PEEK CapillaryΦ3.10-Φ3.22Φ1.00
1/8"PEEK CapillaryΦ3.10-Φ3.22Φ1.60
PEEK CapillaryΦ4Φ3.4
PEEK CapillaryΦ4.5Φ2.5
PEEK CapillaryΦ20.5Φ16.5
PEEK CapillaryΦ12Φ11
PEEK CapillaryΦ11Φ7.5
PEEK CapillaryΦ6Φ4
PEEK CapillaryΦ19.8Φ16.5
