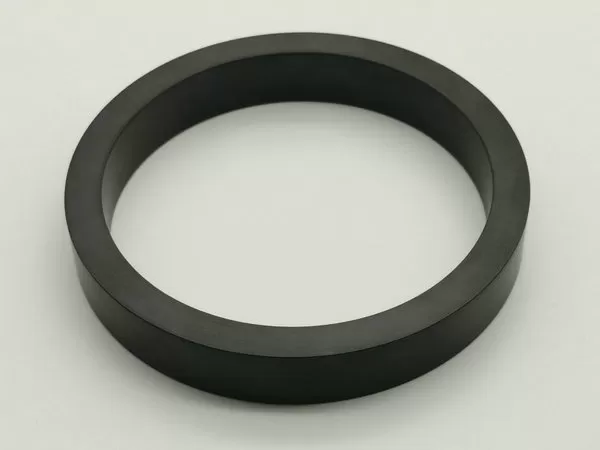

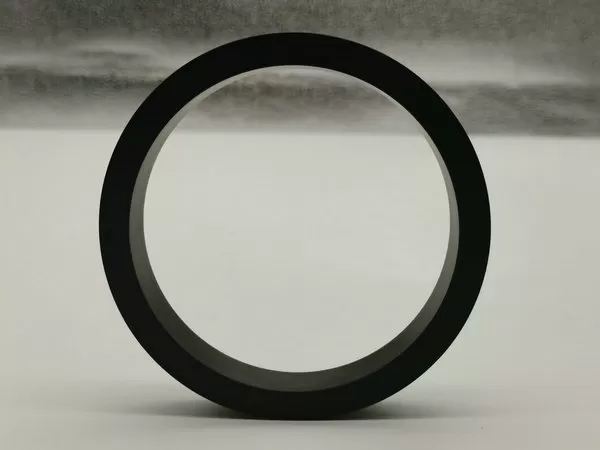

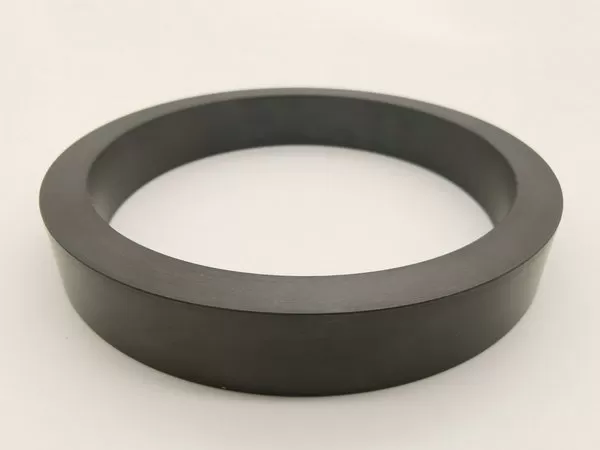

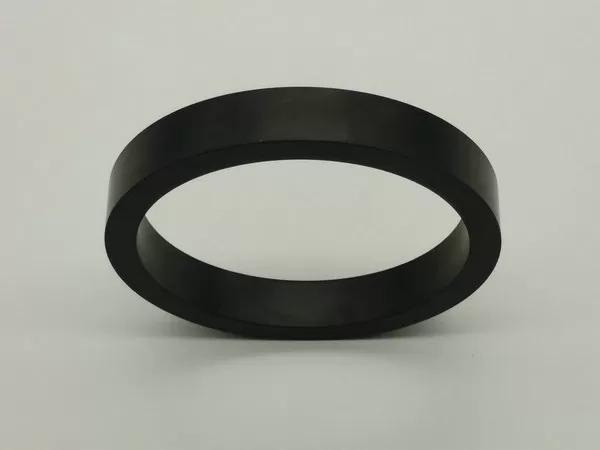

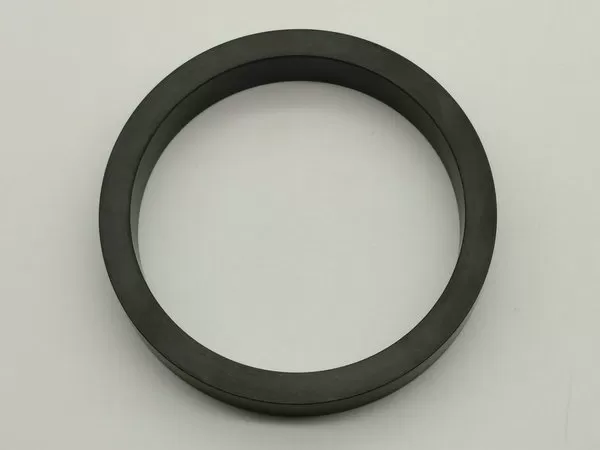

PEEK Carbon Reinforced Washer
Discover unparalleled resilience and enduring strength with our Carbon-Reinforced PEEK Washer. Engineered for industrial-grade reliability, this washer is meticulously crafted to withstand rigorous applications. With customizable dimensions, it ensures a precise fit, elevating machinery performance and longevity. Count on its superior durability to meet diverse industrial needs with unwavering resilience.
Engineered to surpass industry standards, our Carbon-Reinforced PEEK Washer epitomizes durability and reliability. Material PEEK Reinforced with carbon for enhanced strength, this washer delivers exceptional performance across various industrial applications. Its customizable dimensions guarantee a perfect fit for your machinery, ensuring prolonged resilience and consistent performance under demanding conditions.
Below 4 Grades Available
ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.
ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
Size Table
| NO. | Dimension OD*ID (mm) | Weight ( g ) |
| 1 | ∅1.6*∅0.13*1000 | 2.6 |
| 2 | ∅1.6*∅0.25*1000 | 2.5 |
| 3 | ∅1.6*∅0.5*1000 | 2.4 |
| 4 | ∅1.6*∅0.75*1000 | 2.0 |
| 5 | ∅1.6*∅1*1000 | 1.6 |
| 6 | ∅2.33*∅1.6*1000 | 2.9 |
| 7 | ∅2.8*∅2.5*1000 | 1.6 |
| 8 | ∅3*∅2.67*1000 | 1.9 |
| 9 | ∅3.2*∅1*1000 | 9.4 |
| 10 | ∅3.2*∅1.6*1000 | 7.8 |
| 11 | ∅5*∅2.5*1000 | 19.1 |
| 12 | ∅5*∅4.5*1000 | 5.8 |
| 13 | ∅7.5*∅4*1000 | 42.6 |
| 14 | ∅10.2*∅8*1000 | 40.9 |
| 15 | ∅12*∅4*1000 | 81.6 |
| 16 | ∅12.45*∅8.88*1000 | 77.7 |
| 17 | ∅29*∅18*1000 | 527.6 |
| 18 | ∅39*∅31*1000 | 571.5 |
| 19 | ∅80*∅30*1000 | 5612.8 |
| 20 | ∅90*∅40*1000 | 6633.3 |
| 21 | ∅100*∅50*1000 | 7653.8 |
| 22 | ∅110*∅60*1000 | 8674.3 |
| 23 | ∅130*∅60*1000 | 13572.7 |
| 24 | ∅140*∅80*1000 | 13470.6 |
| 25 | ∅160*∅90*1000 | 17858.8 |
| 26 | ∅168*∅132*1000 | 11021.0 |
| 27 | ∅180*∅110*1000 | 20716.2 |
| 28 | ∅190*∅130*1000 | 19593.6 |
| 29 | ∅190*∅140*1000 | 16838.3 |
| 30 | ∅200*∅130*1000 | 23573.6 |
| 31 | ∅220*∅150*1000 | 26431.0 |
| 32 | ∅240*∅170*1000 | 29288.4 |
| 33 | ∅257*∅230*1000 | 13418.6 |
| 34 | ∅250*∅190*1000 | 26941.0 |
| 35 | ∅260*∅210*1000 | 23981.8 |
| 36 | ∅280*∅210*1000 | 35003.2 |
| 37 | ∅280*∅230*1000 | 26022.0 |
| 38 | ∅300*∅250*1000 | 28063.8 |
| 39 | ∅320*∅300*1000 | 12654.2 |
| 40 | ∅340*∅250*1000 | 54188.6 |
| 41 | ∅360*∅280*1000 | 52249.6 |
| 42 | ∅580*∅450*1000 | 136645.0 |
