Description

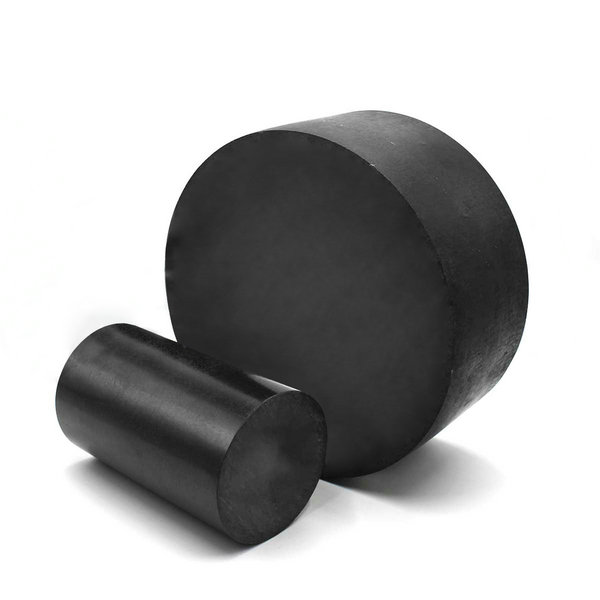

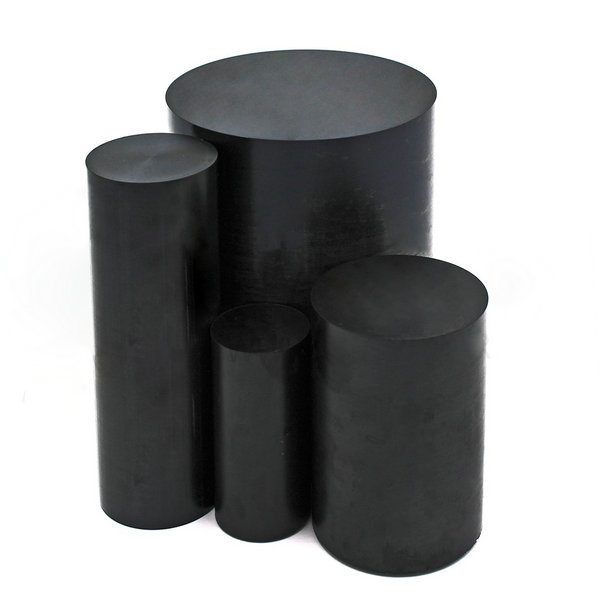

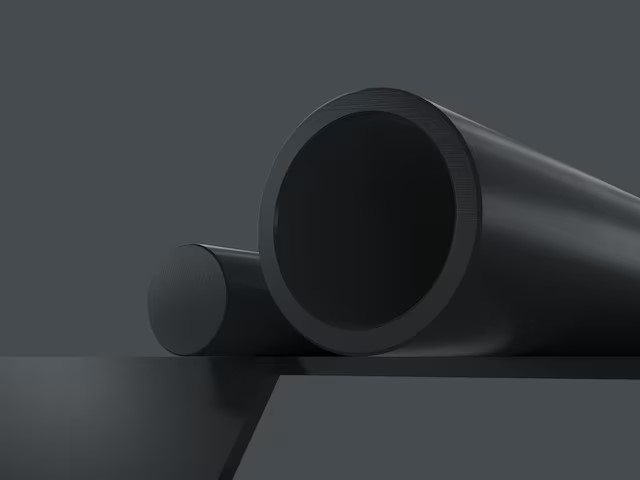

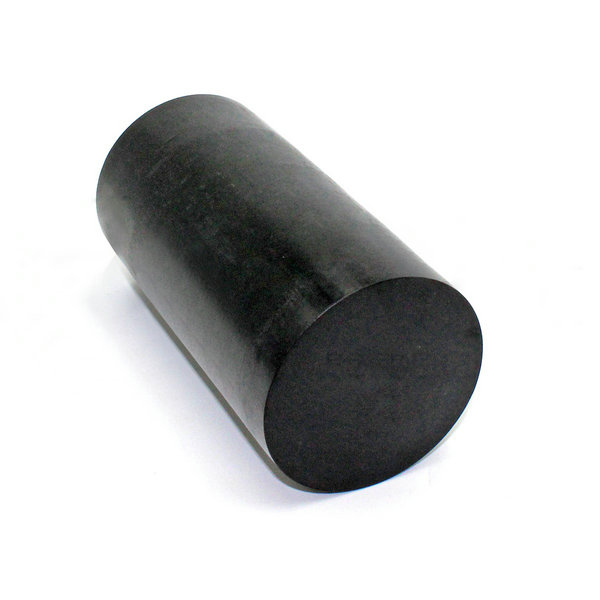

PEEK Bearing Grade

_______________________________________________________________________________________________________________________________________________________________________

PEEK Bearing Grade is a semi-crystalline thermoplastic engineered for high-performance applications, particularly in bearing and wear components. It is reinforced with carbon fibers, graphite, and PTFE, which enhance its wear resistance, reduce friction, and improve thermal conductivity. This material is designed to operate effectively in high-temperature environments and under heavy loads, making it an excellent choice for industries requiring durable and reliable components.

Key Features of PEEK Bearing Grade

High Wear Resistance: PEEK Bearing Grade is formulated to minimize wear and tear, ensuring long service life even in harsh conditions.

Low Coefficient of Friction: The addition of graphite and PTFE reduces friction, allowing for smooth operation without the need for external lubrication in many applications.

Thermal Stability: It maintains its properties at high continuous temperatures, making it suitable for environments where other materials might fail.

Chemical Resistance: PEEK offers excellent resistance to chemicals and hydrolysis, ensuring stability in aggressive environments.

Dimensional Stability: The carbon fiber reinforcement helps maintain dimensional integrity under varying conditions.

Applications and Uses

Bearings and Bushings: For non-lubricated service, providing a reliable alternative to traditional metal bearings.

Wear Pads: In high-temperature conditions where wear resistance is crucial.

Valve Seats and Seal Surfaces: Where chemical resistance and dimensional stability are essential.

Technical Specifications and Pricing

For detailed specifications, including our PEEK Bearing Grade size chart and price options, please contact us. We also provide a PEEK bearing material chart in below table to help you compare different grades and select the best fit for your project. Our competitive PEEK bearing material price ensures you get the best value for your investment.

Whether you're looking for PEEK bearing material for sale or seeking to understand the PEEK bearing grade formula that makes it so effective, our resources are designed to guide you through the selection process and ensure you find the perfect solution for your bearing needs.

_______________________________________________________________________________________________________________________________________________________________________

PEEK Bearing Grade Size(ARKPEEK-MOD)

Number	Rod diameter(mm)	Weight per meter ( g )				Dimension tolerance mm
Number	Rod diameter(mm)	ARKPEEK-1000	ARKPEEK-CF30	ARKPEEK-GF30	ARKPEEK-MOD	Dimension tolerance mm
1	5	31	33	34	32	0~0.2
2	6	42	46	47	45	0~0.2
3	7	55	61	63	59	0~0.2
4	8	70	78	80	75	0~0.2
5	10	107	119	123	115	0~0.2
6	12	152	169	175	163	0~0.2
7	15	235	261	270	252	0~0.2
8	18	336	374	387	361	0~0.2
9	20	413	460	476	445	0~0.2
10	22	499	556	575	537	0~0.2
11	25	499	556	575	537	0~0.2
12	28	663	736	761	712	0~0.5
13	30	825	917	948	887	0~0.5
14	33	943	1049	1085	1014	0~0.5
15	35	1136	1265	1307	1222	0~0.5
16	38	1275	1419	1467	1371	0~0.5
17	40	1499	1669	1725	1612	0~o.5
18	42	1658	1846	1909	1783	0~0.5
19	45	1825	2033	2102	1964	0~1
20	48	2102	2330	2409	2250	0~1
21	50	2386	2648	2738	2557	0~1
22	53	2586	2881	2979	2783	0~1
23	55	2902	3232	3343	3122	0~1
24	60	3122	3478	3597	3359	0~1
25	65	3699	4133	4274	3991	0~1
26	70	4317	4864	5030	4698	0~2
27	80	5055	5632	5825	5440	0~2
28	85	6586	7340	7591	7089	0~2
29	90	7428	8279	8562	7995	0~2
30	95	8321	9275	9593	8957	0~2
31	100	9265	10328	10682	9973	0~2
32	110	10260	11438	11830	11045	0~2
33	120	12403	13828	14303	13353	0~2
34	130	14750	16446	17011	15881	0~2
35	140	17301	19291	19955	18628	0~3
36	150	20057	22365	23134	21595	0~3
37	160	23016	25666	26549	24783	0~3
38	165	26180	29194	30199	28189	0~3
39	180	27838	31044	32112	29975	0~3
40	200	33149	36964	38206	35663	0~3
41	220	49477	55176	57046	53247	0~3
42	250	63866	71226	73649	68743	0~3
