PEEK Rod 1inch 25.4mm

Unfilled PEEK 1000 Rod Material Properties

Our 1 inch PEEK rods are the epitome of high-quality engineering plastics. These PEEK plastic rods are built to excel in challenging conditions, offering exceptional heat and chemical resistance, along with unbeatable durability. Perfect for a wide range of industrial applications, these rods are your go-to choice for reliability and performance.

Inquire Now Next Products

MATERIAL GRADE

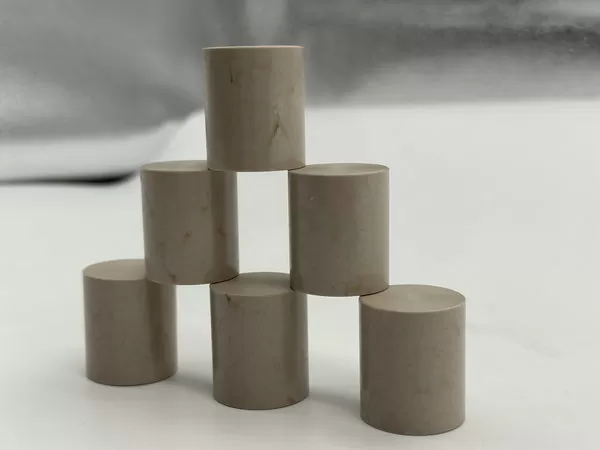

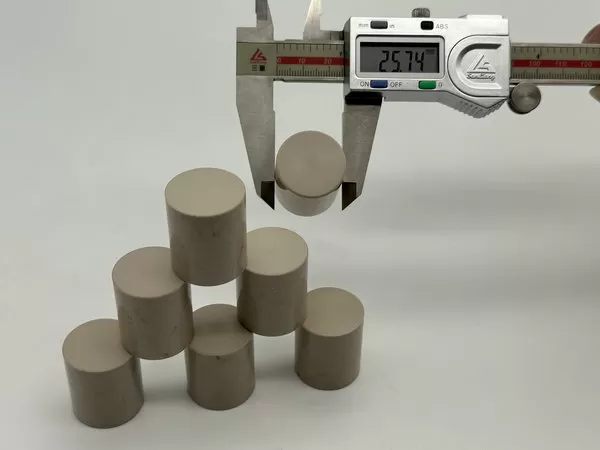

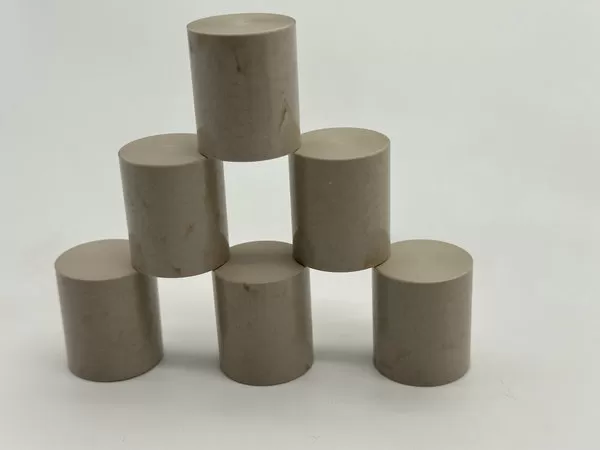

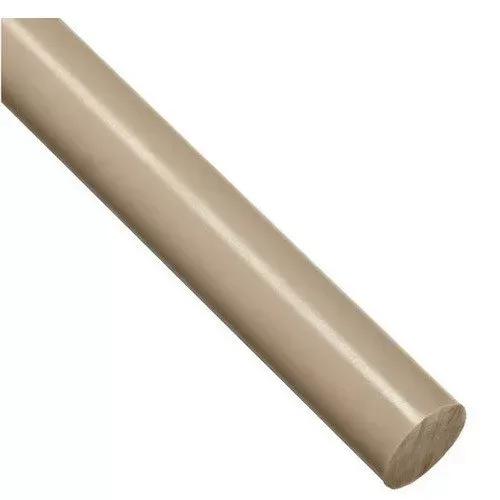

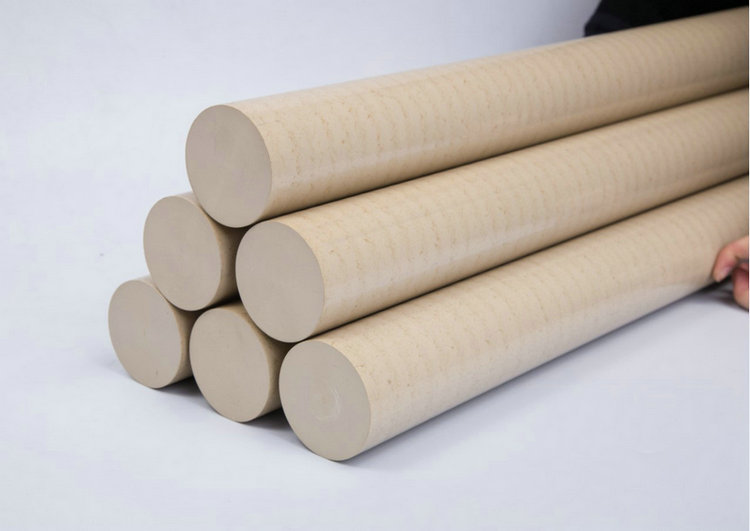

A PEEK Rod measuring 1 inch (25.4mm) in diameter is a solid cylindrical component made from PEEK (Polyether Ether Ketone), a high-performance thermoplastic renowned for its outstanding mechanical properties, chemical resistance, and ability to withstand high temperatures. These rods are typically manufactured using extrusion processes to ensure uniformity in dimensions and properties. With a diameter of 25.4mm, PEEK Rods offer excellent dimensional stability and strength, making them ideal for a wide range of industrial applications where reliability and performance in demanding conditions are essential. Common uses include bearings, bushings, seals, structural components, and precision-machined parts across industries such as aerospace, automotive, medical, and electronics.

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

Number	Rod diameter(mm)	Weight per meter ( g )				Dimension tolerance mm
Number	Rod diameter(mm)	ARKPEEK-1000	ARKPEEK-CF30	ARKPEEK-GF30	ARKPEEK-MOD	Dimension tolerance mm
1	5	31	33	34	32	0~0.2
2	6	42	46	47	45	0~0.2
3	7	55	61	63	59	0~0.2
4	8	70	78	80	75	0~0.2
5	10	107	119	123	115	0~0.2
6	12	152	169	175	163	0~0.2
7	15	235	261	270	252	0~0.2
8	18	336	374	387	361	0~0.2
9	20	413	460	476	445	0~0.2
10	22	499	556	575	537	0~0.2
11	25	499	556	575	537	0~0.2
12	28	663	736	761	712	0~0.5
13	30	825	917	948	887	0~0.5
14	33	943	1049	1085	1014	0~0.5
15	35	1136	1265	1307	1222	0~0.5
16	38	1275	1419	1467	1371	0~0.5
17	40	1499	1669	1725	1612	0~o.5
18	42	1658	1846	1909	1783	0~0.5
19	45	1825	2033	2102	1964	0~1
20	48	2102	2330	2409	2250	0~1
21	50	2386	2648	2738	2557	0~1
22	53	2586	2881	2979	2783	0~1
23	55	2902	3232	3343	3122	0~1
24	60	3122	3478	3597	3359	0~1
25	65	3699	4133	4274	3991	0~1
26	70	4317	4864	5030	4698	0~2
27	80	5055	5632	5825	5440	0~2
28	85	6586	7340	7591	7089	0~2
29	90	7428	8279	8562	7995	0~2
30	95	8321	9275	9593	8957	0~2
31	100	9265	10328	10682	9973	0~2
32	110	10260	11438	11830	11045	0~2
33	120	12403	13828	14303	13353	0~2
34	130	14750	16446	17011	15881	0~2
35	140	17301	19291	19955	18628	0~3
36	150	20057	22365	23134	21595	0~3
37	160	23016	25666	26549	24783	0~3
38	165	26180	29194	30199	28189	0~3
39	180	27838	31044	32112	29975	0~3
40	200	33149	36964	38206	35663	0~3
41	220	49477	55176	57046	53247	0~3
42	250	63866	71226	73649	68743	0~3
