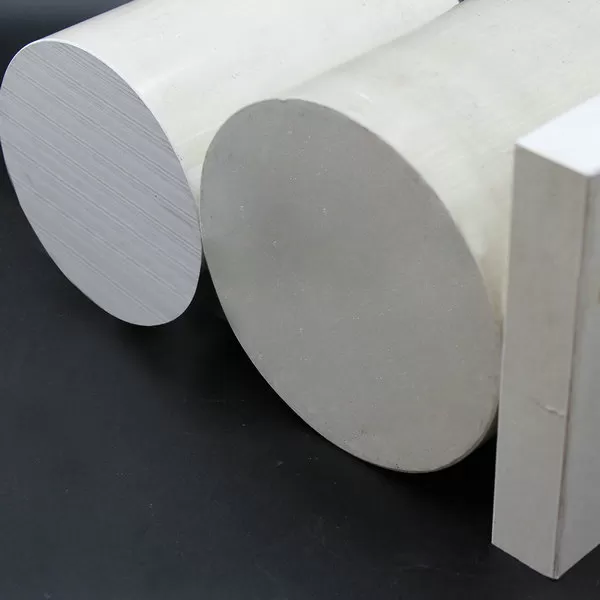

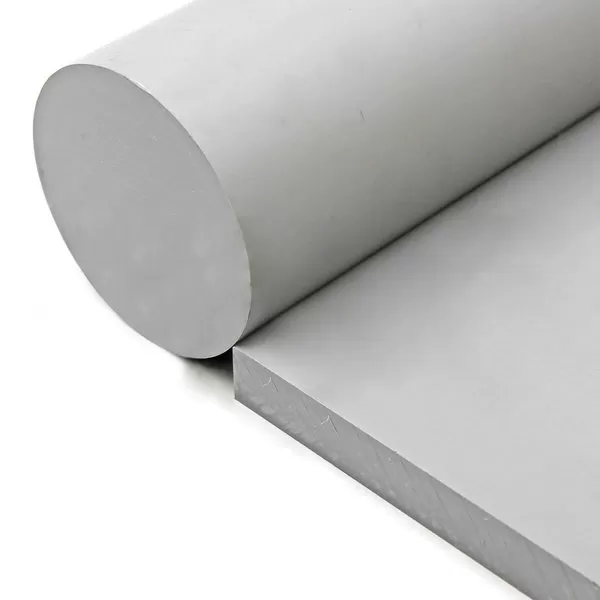

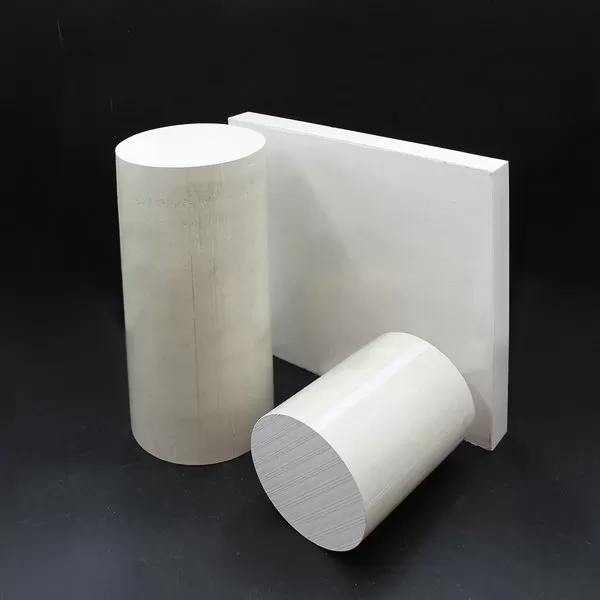

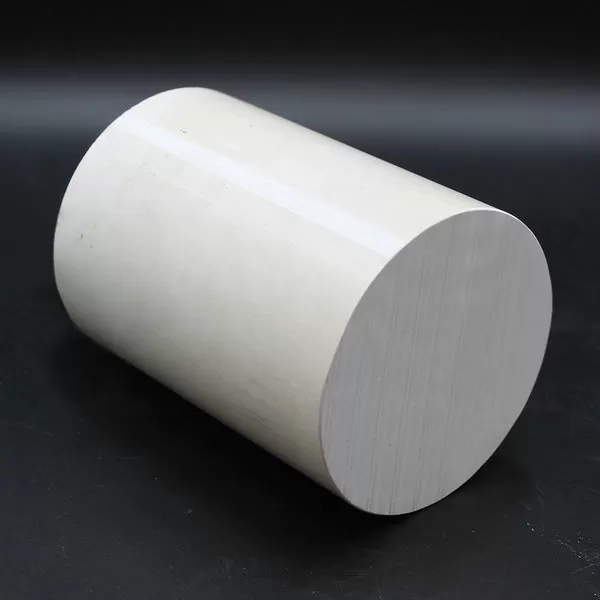

Unfilled PEEK Material
Unfilled PEEK is a high-performance thermoplastic renowned for its exceptional chemical resistance and stability at elevated temperatures. With a versatile range of applications across industries, this material offers reliability and durability in demanding environments. Discover how unfilled PEEK's unique blend of properties makes it an ideal choice for various industrial and engineering needs.
Unfilled PEEK thermoplastic is a versatile material renowned for its exceptional mechanical strength, chemical resistance, and thermal stability. Unlike filled variants, unfilled PEEK retains the pure characteristics of the polymer without any additional reinforcements or additives. This results in a material with high strength, stiffness, and dimensional stability across a wide range of temperatures. Unfilled PEEK is commonly used in industries such as aerospace, automotive, medical, and electronics for applications where reliability and performance under extreme conditions are paramount. Its versatility makes it suitable for various components including bearings, seals, electrical components, and structural parts.

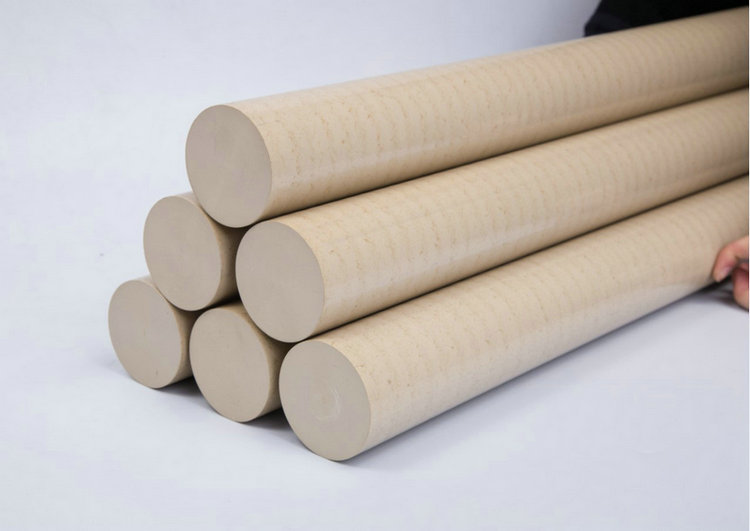

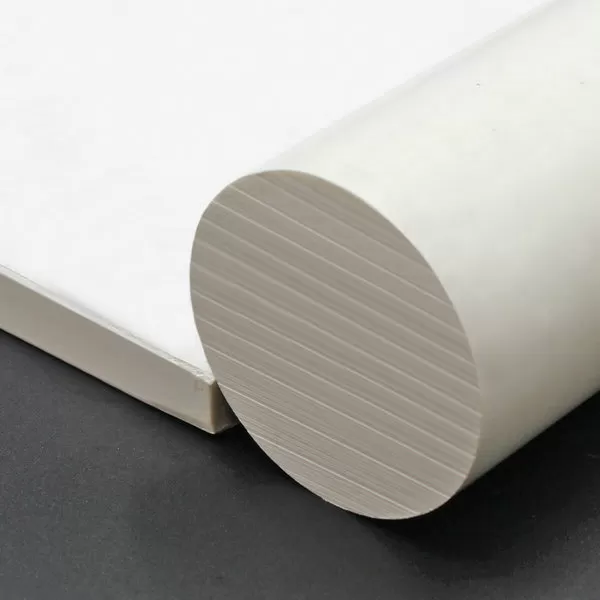

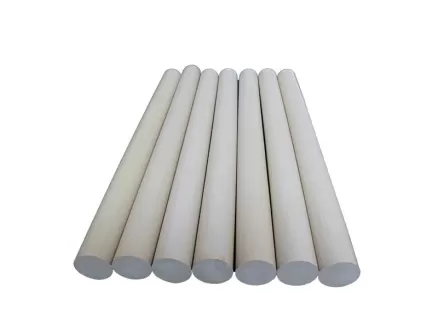

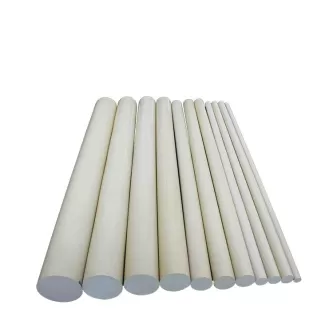

ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

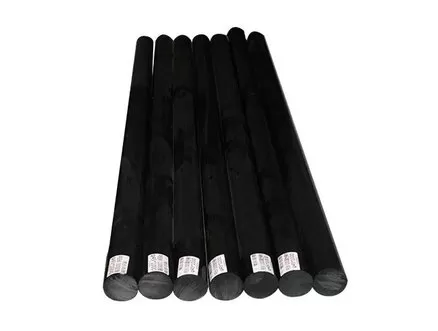

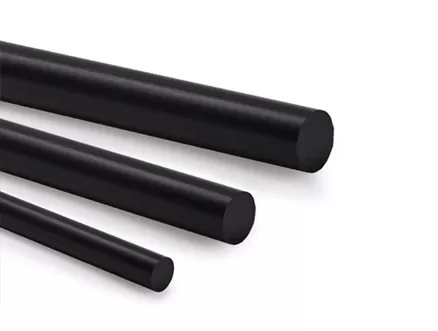

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite + 70%
High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

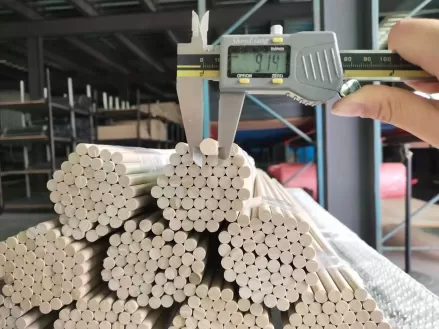

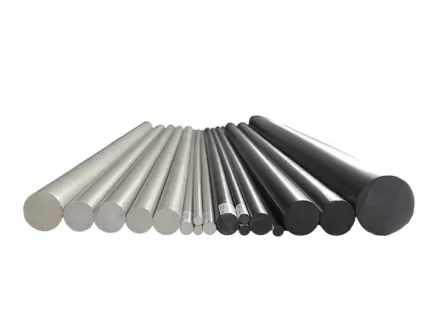

Number | Rod diameter(mm) | Weight per meter ( g ) | Dimension tolerance mm | |||
ARKPEEK-1000 | ARKPEEK-CF30 | ARKPEEK-GF30 | ARKPEEK-MOD | |||
1 | 5 | 31 | 33 | 34 | 32 | 0~0.2 |
2 | 6 | 42 | 46 | 47 | 45 | 0~0.2 |
3 | 7 | 55 | 61 | 63 | 59 | 0~0.2 |
4 | 8 | 70 | 78 | 80 | 75 | 0~0.2 |
5 | 10 | 107 | 119 | 123 | 115 | 0~0.2 |
6 | 12 | 152 | 169 | 175 | 163 | 0~0.2 |
7 | 15 | 235 | 261 | 270 | 252 | 0~0.2 |
8 | 18 | 336 | 374 | 387 | 361 | 0~0.2 |
9 | 20 | 413 | 460 | 476 | 445 | 0~0.2 |
10 | 22 | 499 | 556 | 575 | 537 | 0~0.2 |
11 | 25 | 499 | 556 | 575 | 537 | 0~0.2 |
12 | 28 | 663 | 736 | 761 | 712 | 0~0.5 |
13 | 30 | 825 | 917 | 948 | 887 | 0~0.5 |
14 | 33 | 943 | 1049 | 1085 | 1014 | 0~0.5 |
15 | 35 | 1136 | 1265 | 1307 | 1222 | 0~0.5 |
16 | 38 | 1275 | 1419 | 1467 | 1371 | 0~0.5 |
17 | 40 | 1499 | 1669 | 1725 | 1612 | 0~o.5 |
18 | 42 | 1658 | 1846 | 1909 | 1783 | 0~0.5 |
19 | 45 | 1825 | 2033 | 2102 | 1964 | 0~1 |
20 | 48 | 2102 | 2330 | 2409 | 2250 | 0~1 |
21 | 50 | 2386 | 2648 | 2738 | 2557 | 0~1 |
22 | 53 | 2586 | 2881 | 2979 | 2783 | 0~1 |
23 | 55 | 2902 | 3232 | 3343 | 3122 | 0~1 |
24 | 60 | 3122 | 3478 | 3597 | 3359 | 0~1 |
25 | 65 | 3699 | 4133 | 4274 | 3991 | 0~1 |
26 | 70 | 4317 | 4864 | 5030 | 4698 | 0~2 |
27 | 80 | 5055 | 5632 | 5825 | 5440 | 0~2 |
28 | 85 | 6586 | 7340 | 7591 | 7089 | 0~2 |
29 | 90 | 7428 | 8279 | 8562 | 7995 | 0~2 |
30 | 95 | 8321 | 9275 | 9593 | 8957 | 0~2 |
31 | 100 | 9265 | 10328 | 10682 | 9973 | 0~2 |
32 | 110 | 10260 | 11438 | 11830 | 11045 | 0~2 |
33 | 120 | 12403 | 13828 | 14303 | 13353 | 0~2 |
34 | 130 | 14750 | 16446 | 17011 | 15881 | 0~2 |
35 | 140 | 17301 | 19291 | 19955 | 18628 | 0~3 |
36 | 150 | 20057 | 22365 | 23134 | 21595 | 0~3 |
37 | 160 | 23016 | 25666 | 26549 | 24783 | 0~3 |
38 | 165 | 26180 | 29194 | 30199 | 28189 | 0~3 |
39 | 180 | 27838 | 31044 | 32112 | 29975 | 0~3 |
40 | 200 | 33149 | 36964 | 38206 | 35663 | 0~3 |
41 | 220 | 49477 | 55176 | 57046 | 53247 | 0~3 |
42 | 250 | 63866 | 71226 | 73649 | 68743 | 0~3 |
