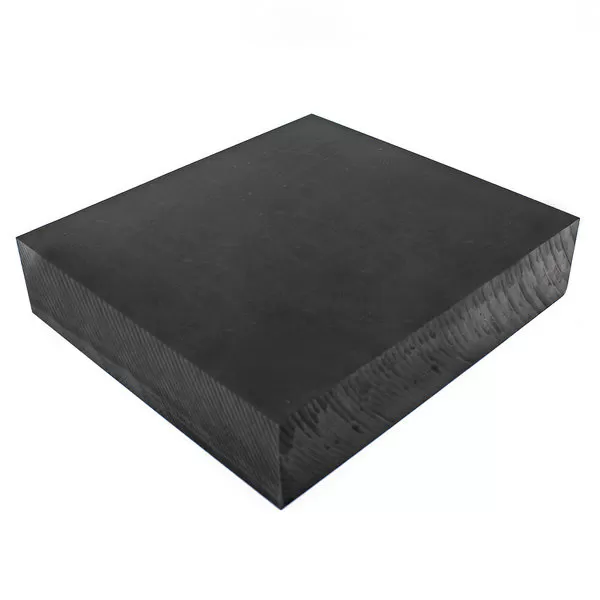

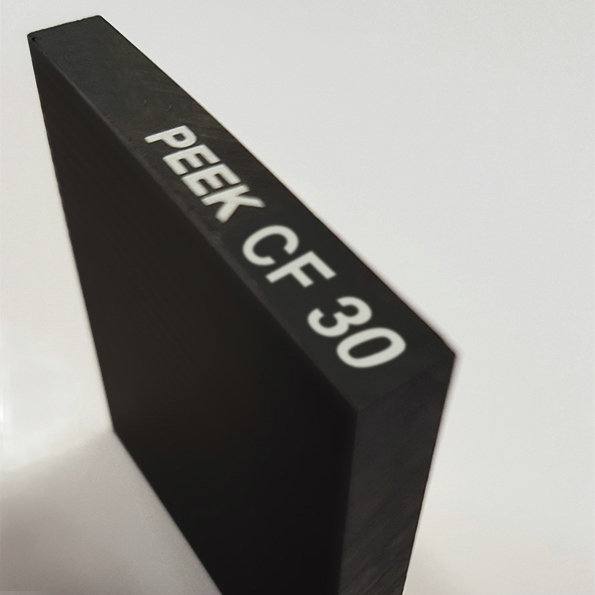

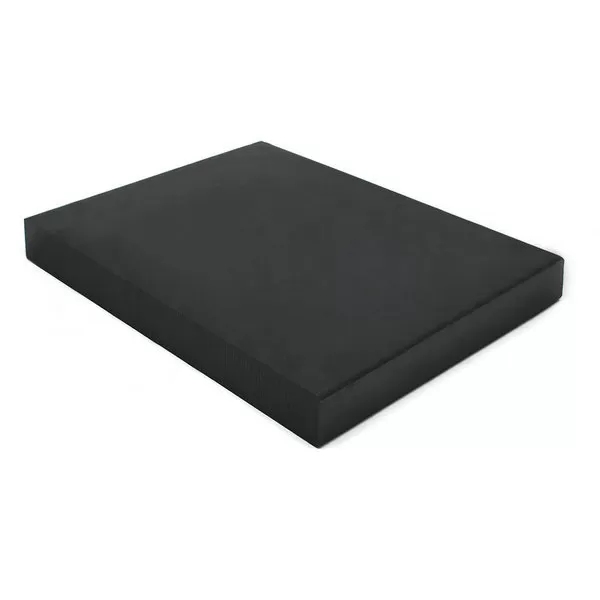

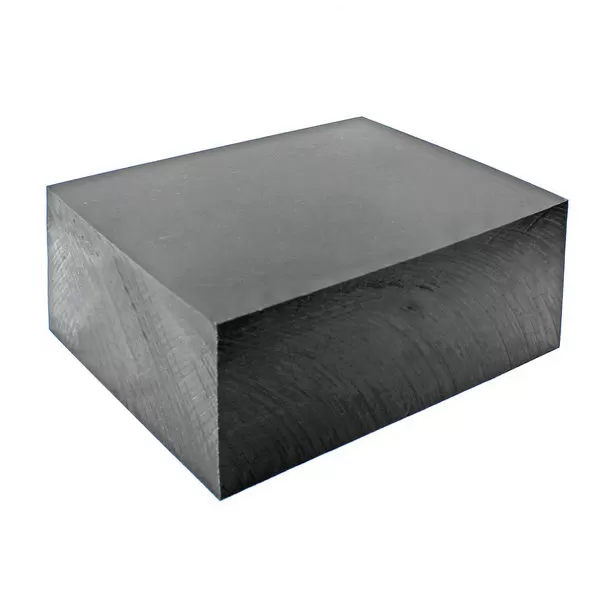

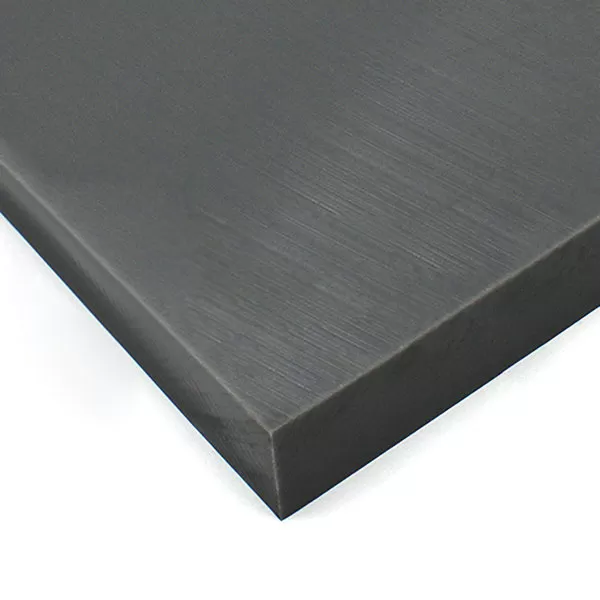

Carbon PEEK Plate

CF PEEK Material

Our Carbon PEEK Plates are engineered with 30% carbon fiber, providing exceptional mechanical strength, stiffness, and thermal conductivity. Perfect for aerospace, automotive, and medical applications, these plates ensure reliability under extreme conditions.

PEEK CF30 Material Properties

Description

Carbon PEEK Plate


_______________________________________________________________________________________________________________________________________________________________________


Carbon PEEK Plates are high-performance composite materials crafted by blending Polyether Ether Ketone (PEEK) with carbon fibers. This unique combination offers superior mechanical strength, stiffness, and lightweight properties, making them ideal for demanding applications in aerospace, automotive, and medical industries.


Key Features of 30% Carbon PEEK Plates

Mechanical Properties: Our Carbon PEEK Plates feature high mechanical strength and rigidity, with a flexural modulus of approximately 19 GPa and a tensile strength of about 200 MPa. They also exhibit excellent creep resistance and a low coefficient of thermal expansion, ensuring dimensional stability under various conditions.

Thermal Properties: With a glass transition temperature of 240°C and a maximum service temperature of 300°C, these plates provide excellent thermal stability. The addition of carbon fibers enhances thermal conductivity, reducing thermal expansion and improving part life in sliding applications14.

Chemical Resistance: Carbon PEEK Plates offer the highest chemical resistance among semi-crystalline plastics, retaining mechanical properties even in harsh environments.


Applications of Carbon PEEK Plates

These plates are versatile and suitable for a variety of applications:

Aerospace: Ideal for structural components and machinery parts where reliability under extreme conditions is crucial.

Automotive: Used in vehicle manufacturing for components requiring high mechanical strength and wear resistance.

Medical: Available in versions suitable for medical applications, offering biocompatibility and high performance.


Carbon PEEK Plate Sizes and Sheets

We offer a range of Carbon PEEK Plate sizes, including custom options to fit your specific needs. Our 30% Carbon PEEK Sheets are also available for applications requiring flexibility in design and manufacturing.


Our Carbon PEEK Plates are designed to solve complex engineering challenges by providing a lightweight yet robust solution with superior performance. Whether you need a 30% Carbon PEEK Plate or a carbon-filled PEEK sheet, our products are engineered to meet the most stringent requirements across various industries.


_______________________________________________________________________________________________________________________________________________________________________


ARKPEEK Plastic Grades

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.


_______________________________________________________________________________________________________________________________________________________________________


Carbon PEEK Plate Sizes

NO.Dimension (mm)Weight ( g )
10.5*700*1000480
21*700*1000950
32*700*10001900
43*700*10002800
54*650*10003400
65*650*10004300
767×31×10002700
880x15x10001560
9100x25x10003100
10120x38x10005500
11195×33×10008365
12175x162×100036855
13395x12.5x10006419
14422x15x10008229
15422x66x100036207
16Insulation block (with Utype)280x45x100015000
17600×6x10004680
18600x8×10006240
19600×9×10007020
20600x15x100011700
21600×20x100015600
22600×25×100019500
23600x30x100023400
24600x35×100027300
25600×40×100031200
26600x45x100035100
27600x50×100039000
28600x60x100046800
29800x20x100020800
30800x30x100031200
