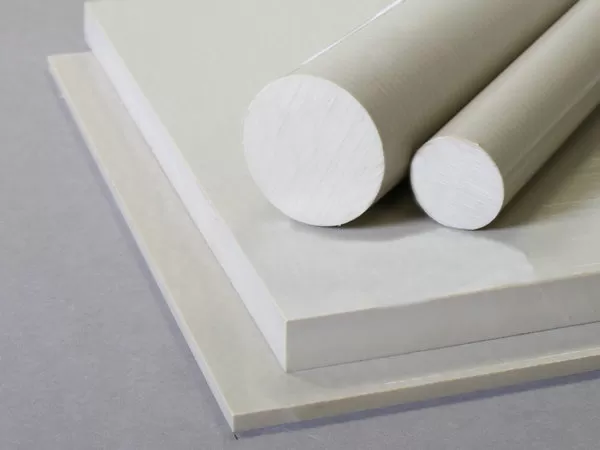

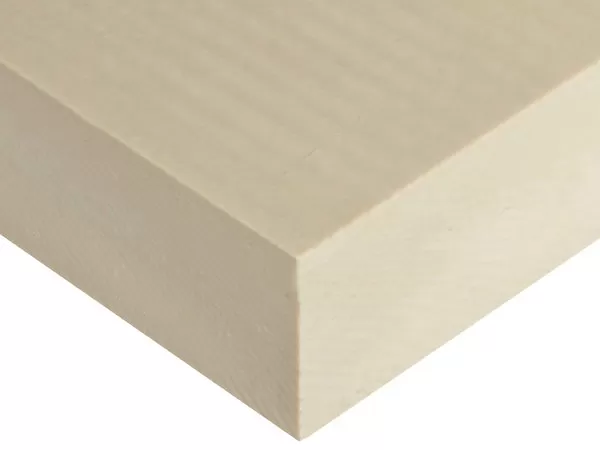

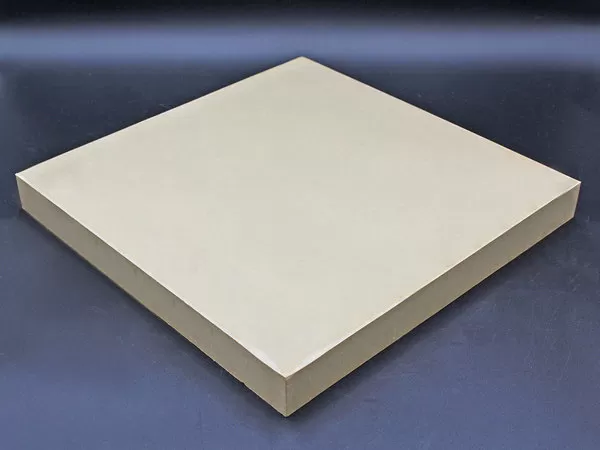

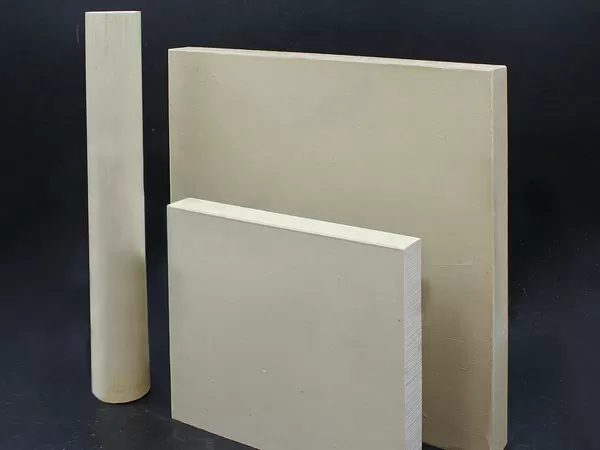

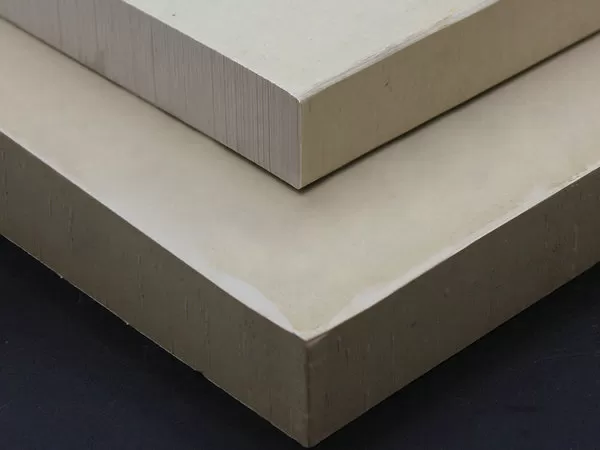

GF30 PEEK Sheet

GF30 PEEK Sheet is a high-performance composite material that blends Polyether Ether Ketone (PEEK) with 30% glass fibers. This unique combination enhances the mechanical strength, stiffness, and dimensional stability of the sheet, while retaining PEEK's renowned chemical resistance and thermal stability. Widely used in aerospace, automotive, and medical industries, GF30 PEEK Sheets excel in applications requiring lightweight yet durable components. From structural supports to precision machinery parts, these sheets offer reliable performance under demanding conditions, making them indispensable in modern engineering.

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

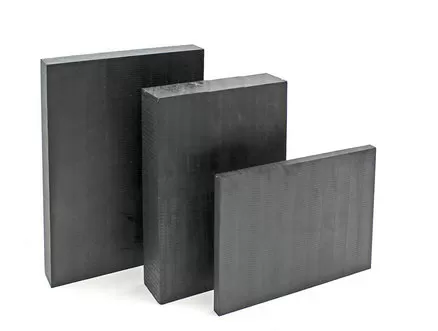

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

High performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.

Brief Introduction

Polyetheretherketone (PEEK) is a renowned high-performance polymer appreciated for its exceptional characteristics, including excellent resistance to high temperatures and chemicals. However, in specific applications, PEEK undergoes a reinforcement process with glass fibers to further amplify its capabilities.

The addition of glass fibers to PEEK serves several critical purposes:

Strength Amplification: Glass fibers significantly elevate PEEK's tensile strength and stiffness. This makes it an excellent choice for applications demanding robust mechanical performance and structural integrity.

Enhanced Dimensional Stability: The inclusion of glass fibers reduces PEEK's coefficient of thermal expansion (CTE), resulting in improved dimensional stability. This is particularly vital in precision engineering and manufacturing settings where precise measurements are essential.

Creep Reduction: Glass fiber reinforcement minimizes the material's tendency to deform over time, extending its lifespan and suitability for load-bearing applications.

Wear and Abrasion Resistance: Glass fibers bolster PEEK's resistance to wear and abrasion, making it exceptionally well-suited for environments where the material comes into contact with abrasive substances.

Cost-Effective Performance: Glass fiber-reinforced PEEK offers a cost-effective alternative to other high-performance materials like metals or ceramics, while still maintaining a remarkable combination of properties.

Electrical Insulation: PEEK, even when reinforced with glass fibers, retains its strong electrical insulating properties, making it an excellent choice for electrical and electronic applications.

Chemical Durability: The incorporation of glass fibers does not compromise PEEK's remarkable chemical resistance, ensuring it remains suitable for use in harsh chemical environments.

Glass Filled PEEK Sheets Size Table
