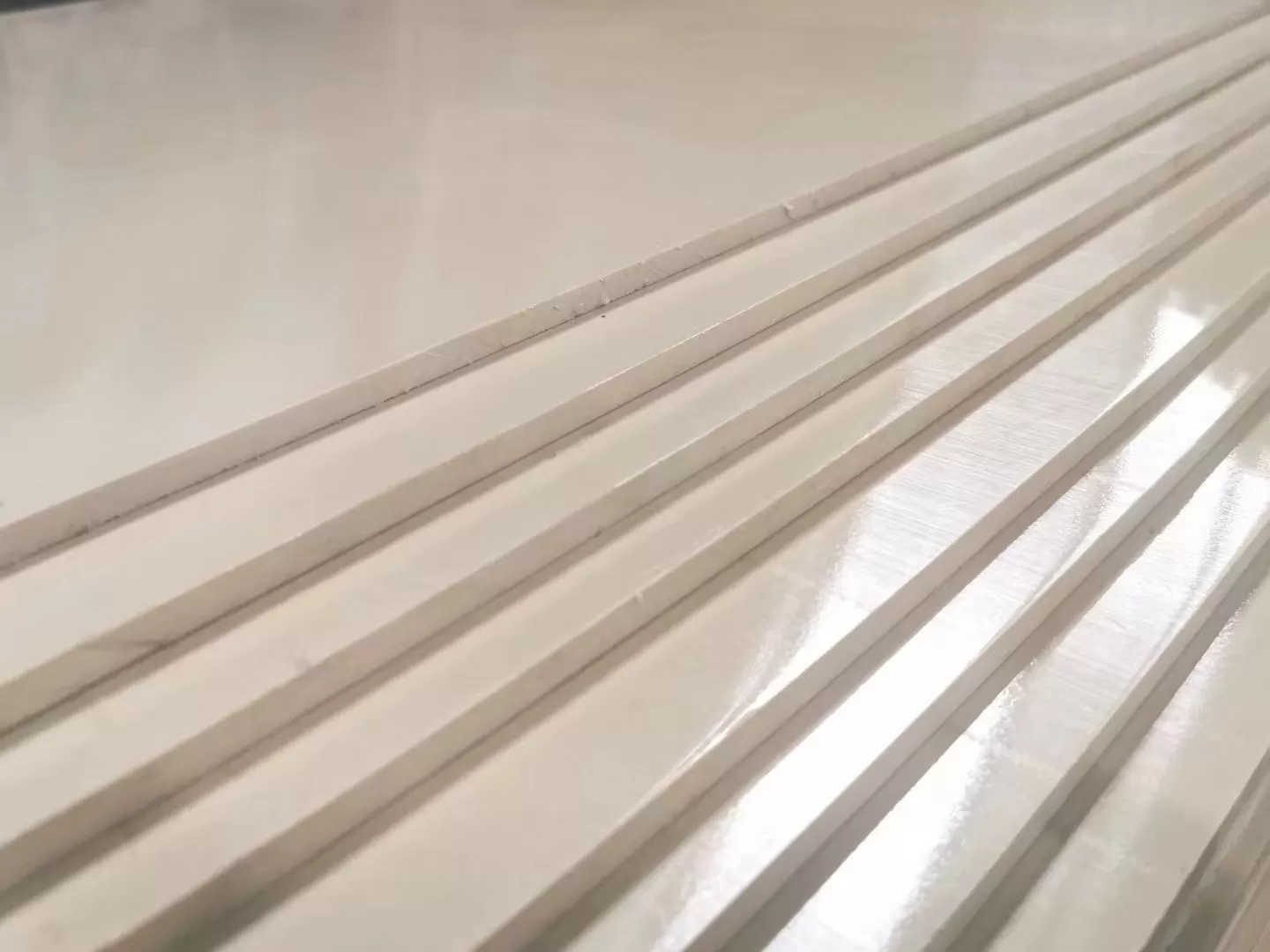

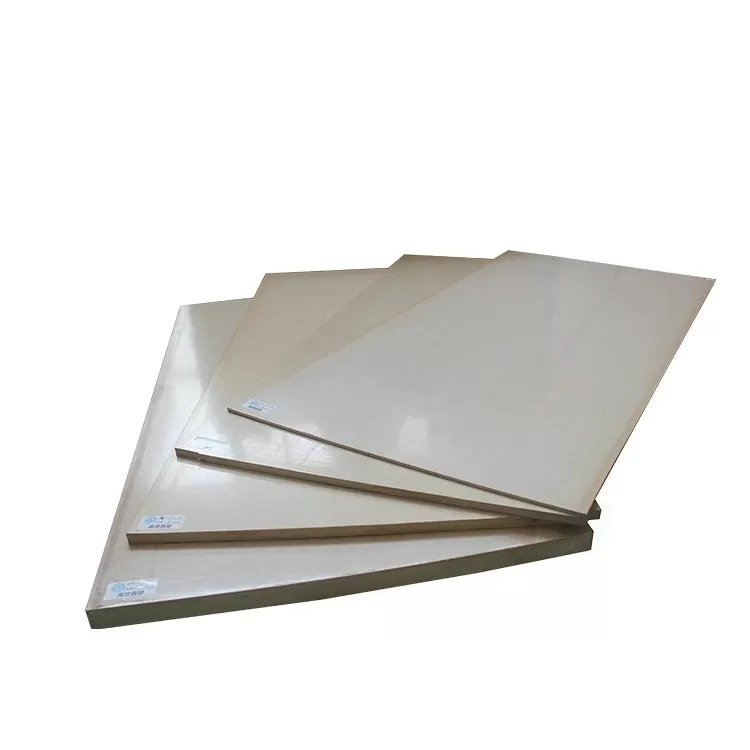

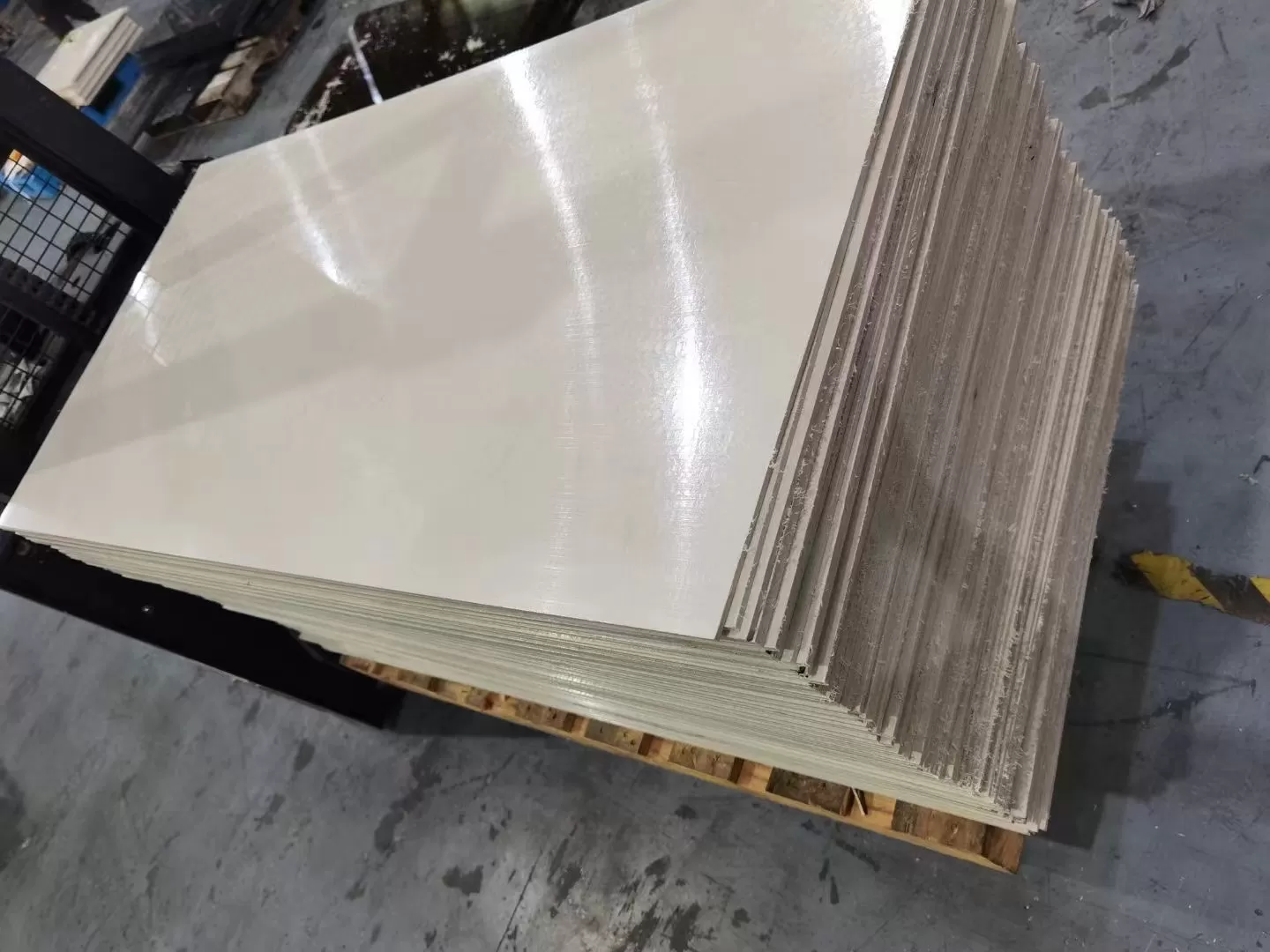

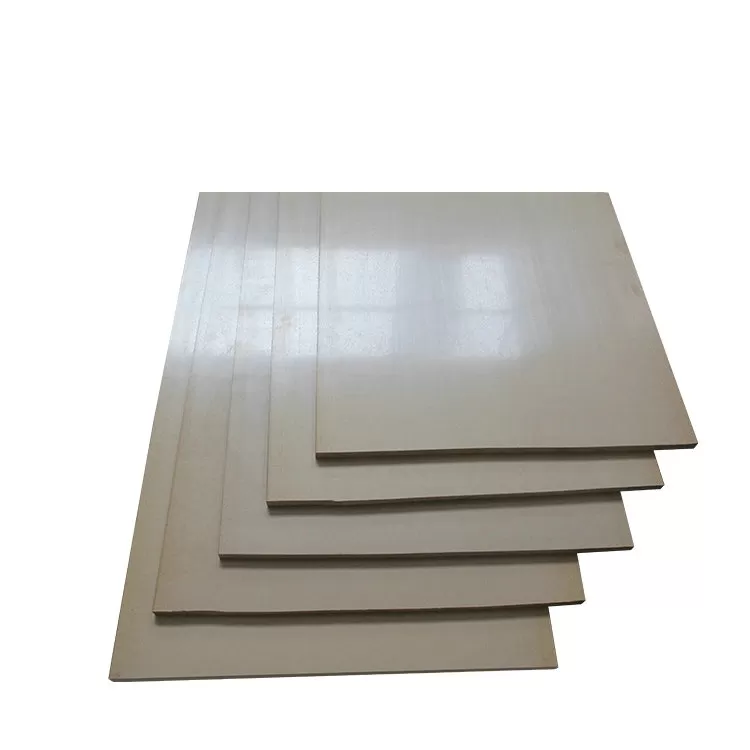

PEEK Glass Filled Sheet

PEEK Material Performance

Polyetheretherketone (PEEK) is a high-performance, engineering thermoplastic characterized by an unusual combination of properties. These properties range from high temperature performance to mechanical strength and excellent chemical resistance.


ARKPEEK-GF30 | 30% glass-filled PEEK grade is ideal for structural applications that require improved strength, stiffness, or stability, especially at temperatures above 300°F (150°C).

MATERIAL GRADE

PEEK Glass Filled Sheet is a composite material comprising Polyether Ether Ketone (PEEK) infused with glass fibers. This fusion enhances the sheet's mechanical strength, stiffness, and dimensional stability, while maintaining PEEK's exceptional chemical resistance and thermal stability. Widely utilized in aerospace, automotive, and medical industries, PEEK Glass Filled Sheets excel in applications requiring robust yet lightweight components. From structural supports to precision machinery parts, these sheets offer reliable performance under demanding conditions, making them essential in modern engineering applications where durability and precision are paramount.


ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.


NO.Dimension (mm)Weight ( g )
10.5*700*1000480
21*700*1000950
32*700*10001900
43*700*10002800
54*650*10003400
65*650*10004300
767×31×10002700
880x15x10001560
9100x25x10003100
10120x38x10005500
11195×33×10008365
12175x162×100036855
13395x12.5x10006419
14422x15x10008229
15422x66x100036207
16Insulation block (with Utype)280x45x100015000
17600×6x10004680
18600x8×10006240
19600×9×10007020
20600x15x100011700
21600×20x100015600
22600×25×100019500
23600x30x100023400
24600x35×100027300
25600×40×100031200
26600x45x100035100
27600x50×100039000
28600x60x100046800
29800x20x100020800
30800x30x100031200
