FDA Food Grade PEEK Material Properties
FDA Compliant PEEK is a type of high-performance polymer material that meets the strict requirements and regulations set by the U.S. Food and Drug Administration (FDA) for use in food contact applications. PEEK, which stands for polyetheretherketone, is a thermoplastic material that offers excellent mechanical, thermal, and chemical properties, making it an ideal choice for a wide range of applications in various industries.
In the food industry, the use of FDA compliant PEEK has become increasingly popular due to its exceptional performance and safety features. PEEK food grade material is resistant to high temperatures, chemicals, and wear, ensuring the integrity of food products during processing, packaging, and transportation. It also provides a non-toxic and non-reactive surface, preventing any contamination risks and promoting food safety.
FDA compliant PEEK is widely used in food processing equipment, such as pumps, valves, and fittings, as well as in packaging materials, such as films and trays. It is also used in medical devices and pharmaceutical applications due to its biocompatibility and sterilization capabilities.
One of the key advantages of FDA compliant PEEK is its ability to withstand repeated sterilization cycles without compromising its mechanical or chemical properties. This makes it an ideal choice for applications that require frequent cleaning and sterilization, such as in the medical and pharmaceutical industries.
Overall, FDA compliant PEEK offers a reliable and safe solution for food contact applications, ensuring compliance with FDA regulations while providing exceptional performance and durability.

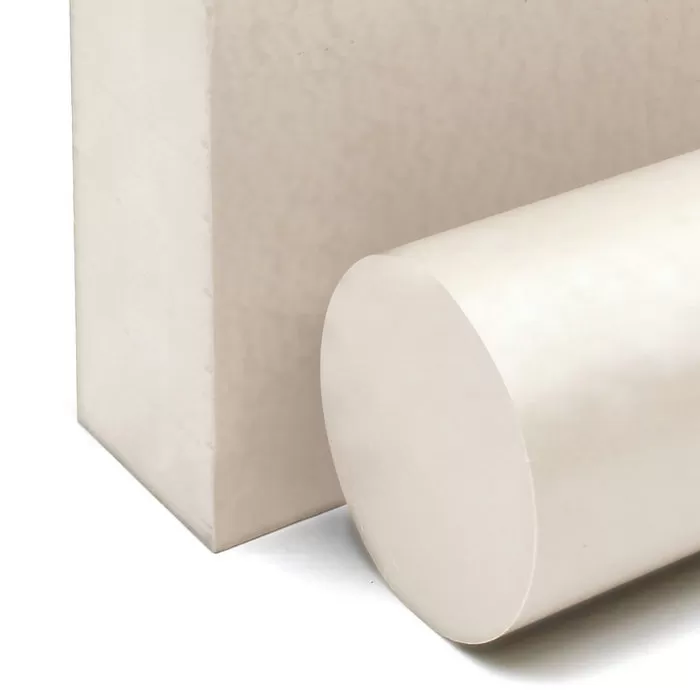

ARKPEEK-1000: 100% PEEK
Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

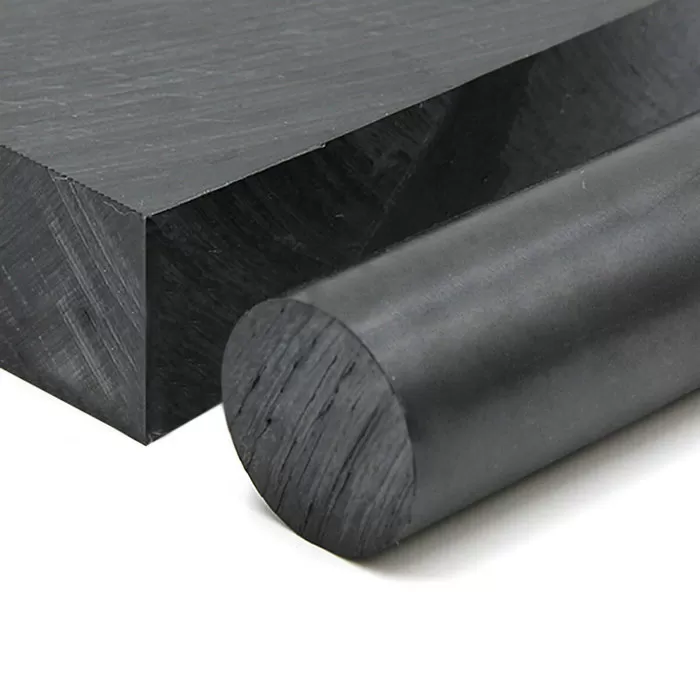

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK
Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.
ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK
Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.
ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10% Graphite
high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
NO. | Dimension (mm) | Weight ( g ) |
1 | 0.5*700*1000 | 480 |
2 | 1*700*1000 | 950 |
3 | 2*700*1000 | 1900 |
4 | 3*700*1000 | 2800 |
5 | 4*650*1000 | 3400 |
6 | 5*650*1000 | 4300 |
7 | 67×31×1000 | 2700 |
8 | 80x15x1000 | 1560 |
9 | 100x25x1000 | 3100 |
10 | 120x38x1000 | 5500 |
11 | 195×33×1000 | 8365 |
12 | 175x162×1000 | 36855 |
13 | 395x12.5x1000 | 6419 |
14 | 422x15x1000 | 8229 |
15 | 422x66x1000 | 36207 |
16 | Insulation block (with Utype)280x45x1000 | 15000 |
17 | 600×6x1000 | 4680 |
18 | 600x8×1000 | 6240 |
19 | 600×9×1000 | 7020 |
20 | 600x15x1000 | 11700 |
21 | 600×20x1000 | 15600 |
22 | 600×25×1000 | 19500 |
23 | 600x30x1000 | 23400 |
24 | 600x35×1000 | 27300 |
25 | 600×40×1000 | 31200 |
26 | 600x45x1000 | 35100 |
27 | 600x50×1000 | 39000 |
28 | 600x60x1000 | 46800 |
29 | 800x20x1000 | 20800 |
30 | 800x30x1000 | 31200 |
