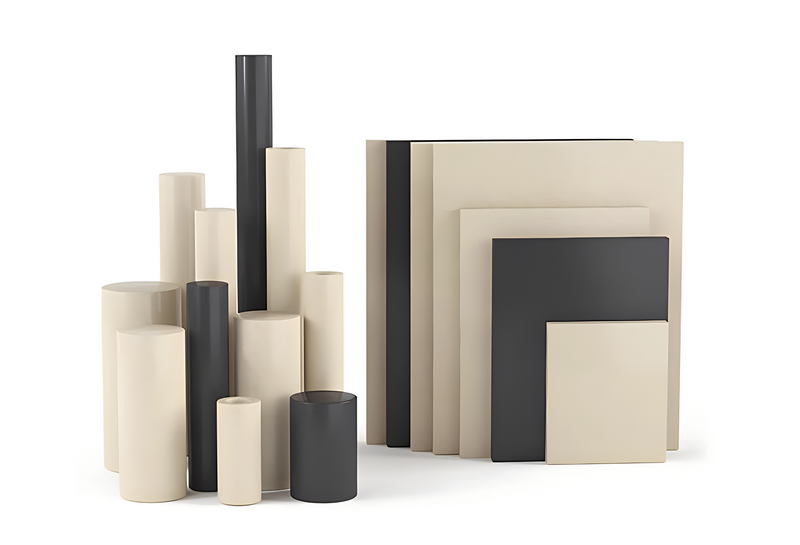

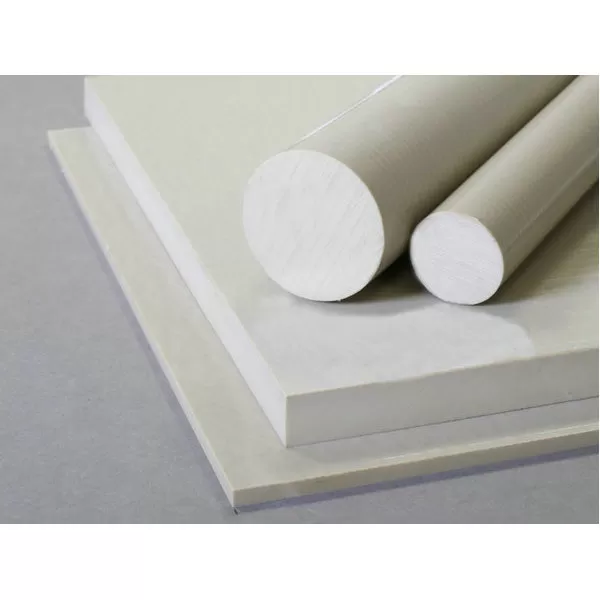

PEEK Plates

_______________________________________________________________________________________________________________________________________________________________________

PEEK Plates are engineered to deliver unmatched performance in the most challenging environments. Made from polyether ether ketone (PEEK) material, these plates combine lightweight design with extreme durability, making them a top choice for aerospace, medical, automotive, and semiconductor industries.

Key Features & Technical Info

Peek Plate Properties: High tensile strength (up to 100 MPa), density of 1.3–1.5 g/cm³, and thermal stability up to 260°C (500°F). Resistant to chemicals, wear, and hydrolysis.

Peek Plate Sizes: Standard thicknesses from 1mm to 100mm, with custom dimensions available.

HS Code: Simplify global shipping with the standardized PEEK plate HS code (39219090) for thermoplastics.

Solve Industrial Challenges

Replace heavy metal components with lightweight CF PEEK plates to reduce energy costs and improve efficiency.

Use glass PEEK plates for electrical insulation in high-voltage or high-temperature environments.

Deploy chemically resistant plates in oil/gas or medical devices to prevent corrosion and ensure longevity.

Why Choose PEEK Plates?

Cost-Effective: Despite a higher upfront PEEK plate price, their durability reduces long-term replacement costs.

Safety: Non-toxic and FDA-compliant for medical and food-grade applications.

Customization: Tailor sizes and composites (carbon, glass, or hybrid) to your project’s needs.

Whether you need precise technical data, material comparisons, or logistics support (HS codes), PEEK Plates offer reliable solutions. Request a datasheet or contact us for pricing and sizing details today!

_______________________________________________________________________________________________________________________________________________________________________

PEEK Plate Materials

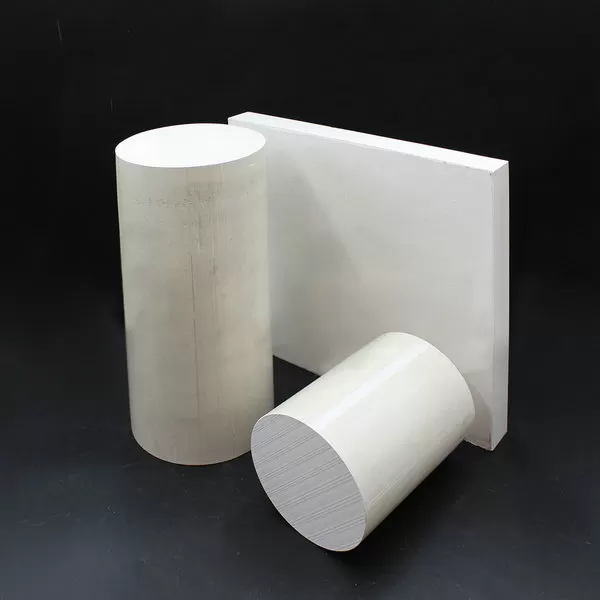

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

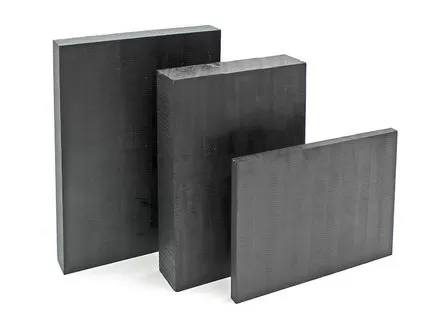

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

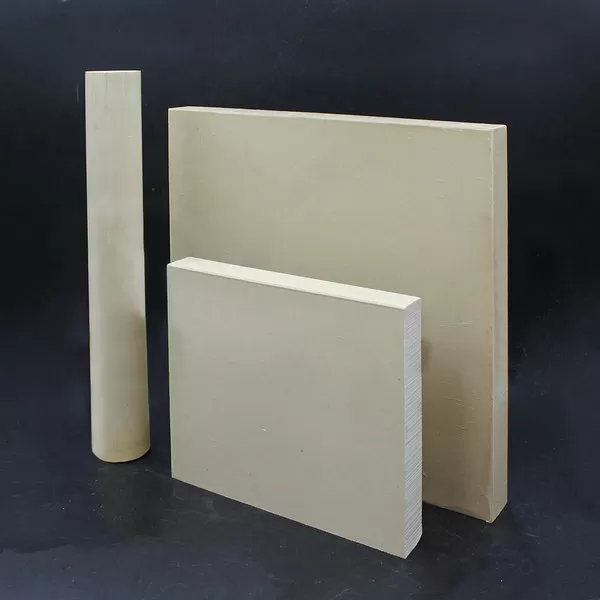

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.

_______________________________________________________________________________________________________________________________________________________________________

PEEK Plate Sizes
