Polyetheretherketone Polymer

_______________________________________________________________________________________________________________________________________________________________________

Polyetheretherketone Polymer (PEEK) is a premium high-performance thermoplastic engineered to excel in the most demanding applications. Its unique polyetheretherketone polymer structure - a semi-crystalline, aromatic backbone with alternating ketone and ether groups—delivers unmatched durability, heat resistance, and versatility.

Key Technical Insights

Polyetheretherketone Formula: (C₁₉H₁₄O₃)ₙ – A linear aromatic polymer combining ketone (C=O) and ether (O) groups for robust molecular stability.

Polyetheretherketone Characteristics

Thermal Stability: Operates continuously at temperatures up to 260°C (500°F).

Chemical Resistance: Resists acids, solvents, and hydrocarbons.

Mechanical Strength: Tensile strength up to 100 MPa and low density (1.3 g/cm³) for lightweight yet durable solutions.

Material Properties: Excellent wear resistance, low moisture absorption, and inherent flame retardancy (UL94 V-0 rated).

Solve Challenges with PEEK Polymer

Aerospace: Replace metal components with lightweight PEEK to reduce fuel consumption and enhance performance.

Medical: Use FDA-compliant, biocompatible PEEK for implants, surgical tools, and imaging devices.

Industrial: Deploy in corrosive or high-stress environments (e.g., oil/gas valves, semiconductor parts) where traditional materials fail.

Custom Solutions & Availability

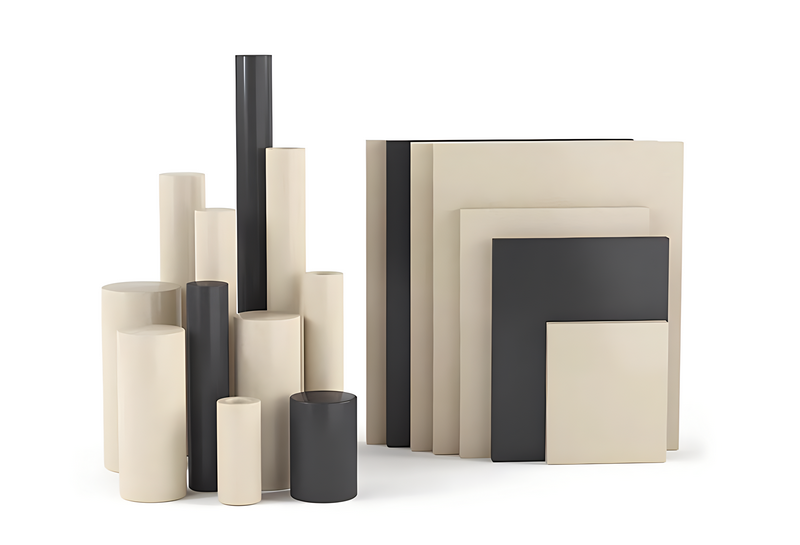

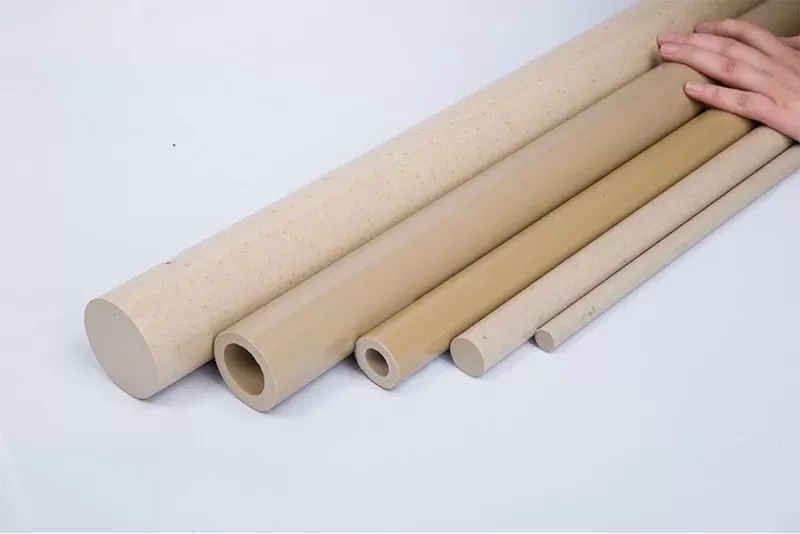

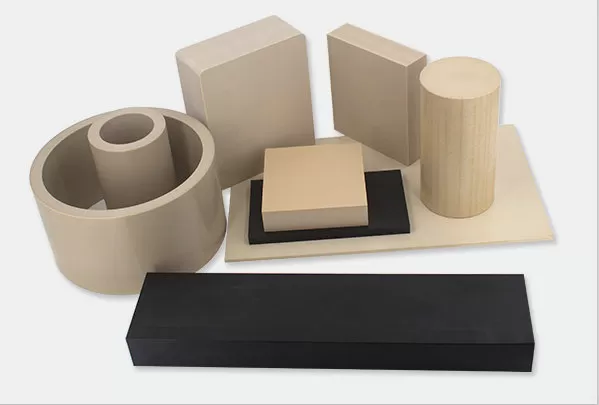

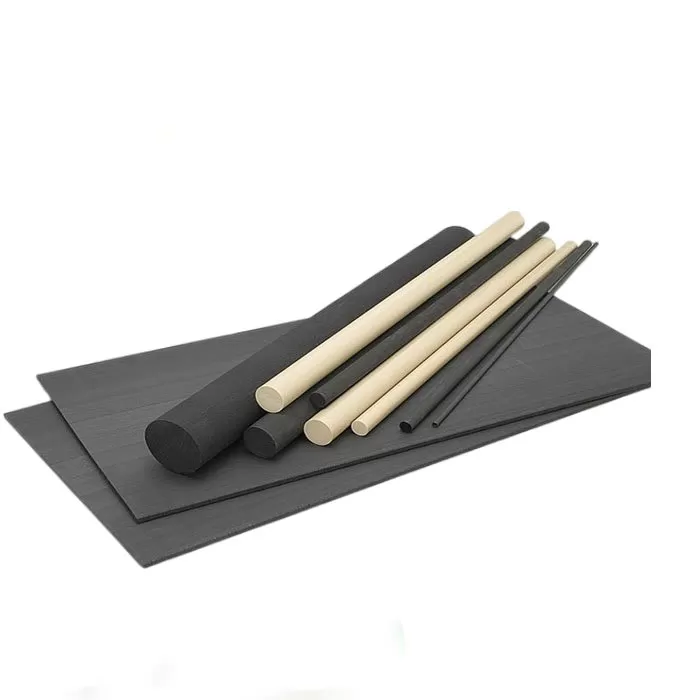

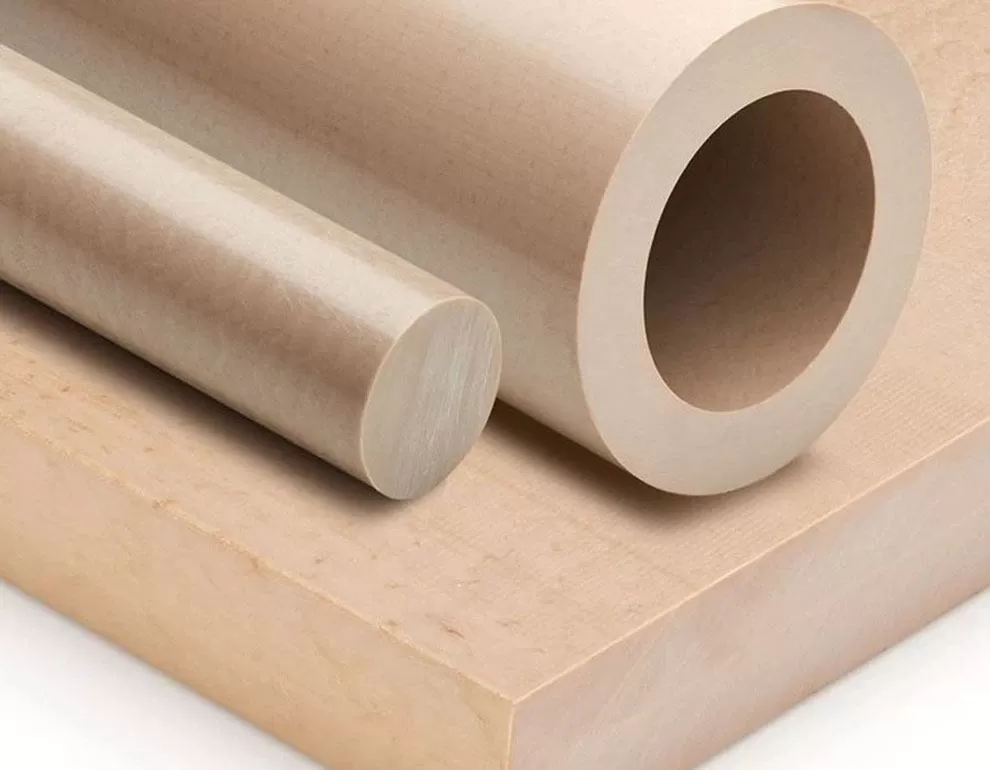

Polyetheretherketone Polymer for Sale: Available in pellets, rods, plates, and custom-molded parts.

Variants: Opt for carbon or glass-filled grades to enhance stiffness, electrical insulation, or thermal conductivity.

Why Choose PEEK?

Longevity: Outlasts metals and standard plastics in harsh conditions, reducing lifecycle costs.

Safety: Non-toxic, recyclable, and compliant with FDA, EU RoHS, and REACH standards.

Versatility: Adaptable to machining, injection molding, and 3D printing processes.

Whether you need technical data, material specifications, or purchasing options, Polyetheretherketone Polymer (PEEK) offers cutting-edge solutions for complex engineering challenges. Request a quote or datasheet today to explore its full potential!

_______________________________________________________________________________________________________________________________________________________________________

PEEK Polymer Grades

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fiber reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. Improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD:  PEEK + 10% Carbon Fiber + 10% PTFE +10%  Graphite + 70% PEEK

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range is from -70°C to 260°C and has a short term maximum service temperature of 310°C.
